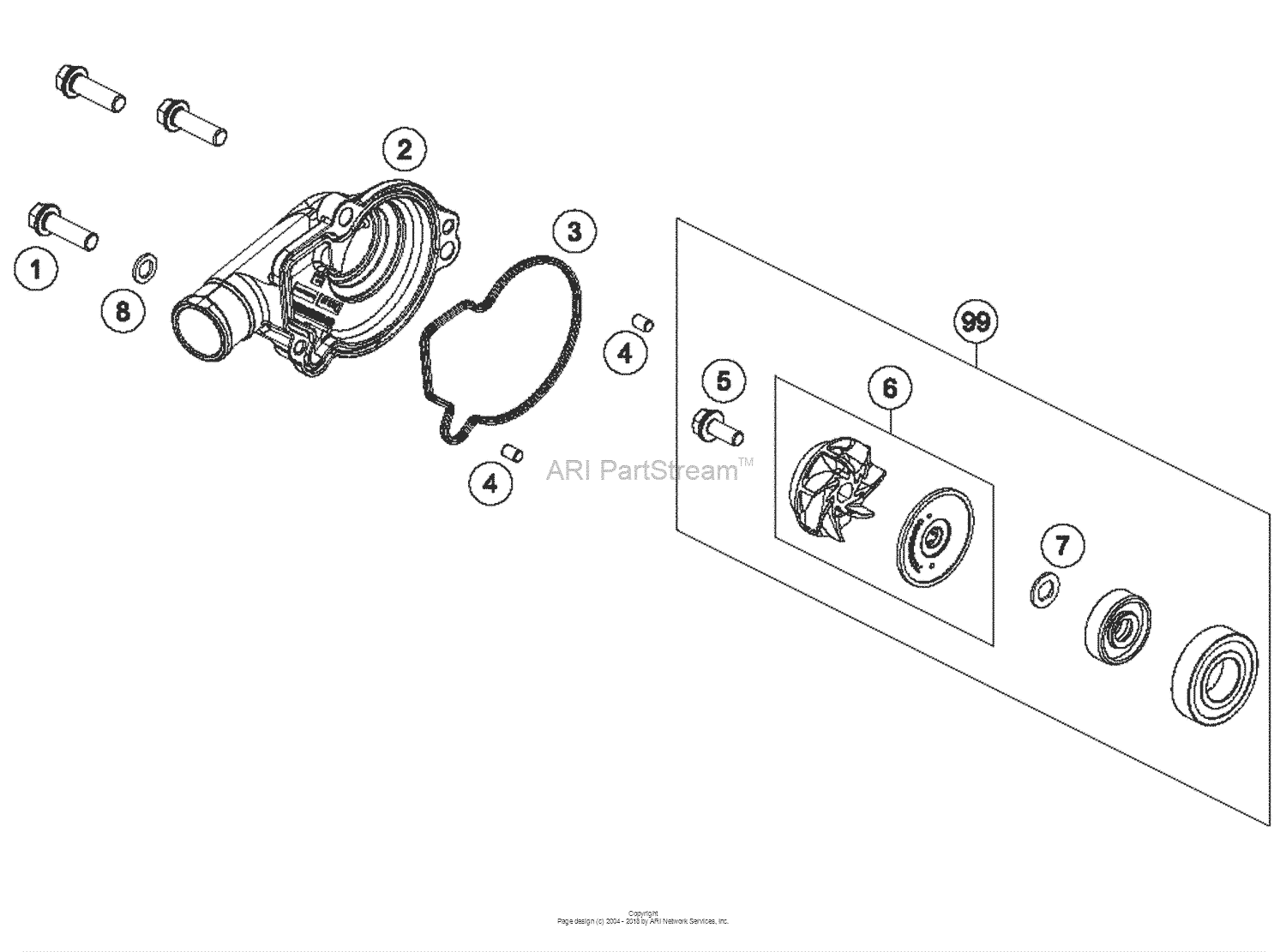

Water Pump Diagram KTM 150 150 SX
- Year
- 2018
- Sales region
- US/EU
- Engine Capacity
- 150
- Model
- 150 SX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
2
|
2
50435052000 Water Pump CoverTX30 |
50435052000 |
US $16.37 |
||
|
3
|
3
50435053000 Gasket Water Pump CoverTX30 |
50435053000 |
US $8.36 |
||
|
4
|
4
0402040600 Needle rooler din5402 nrb 4x6TX30 |
0402040600 |
US $4.23 |
||
|
5
|
5
0014050123 Hh collar screw m 5x12 ws=6TX30 |
0014050123 |
US $2.19 |
||
|
6
|
6
79235055044 Water Pump Wheel CplTX30 |
79235055044 |
US $19.52 |
||
|
7
|
7
50435049000 Preformed WasherTX30 |
50435049000 |
US $3.43 |
||
|
8
|
8
0603061001 Cu-Seal Ring Din7603-6X10X1TX30 |
0603061001 |
US $2.64 |
||
|
99
|
99
50435055015 Water Pump Rep. KitAs Required |
50435055015 |
US $42.67 |
