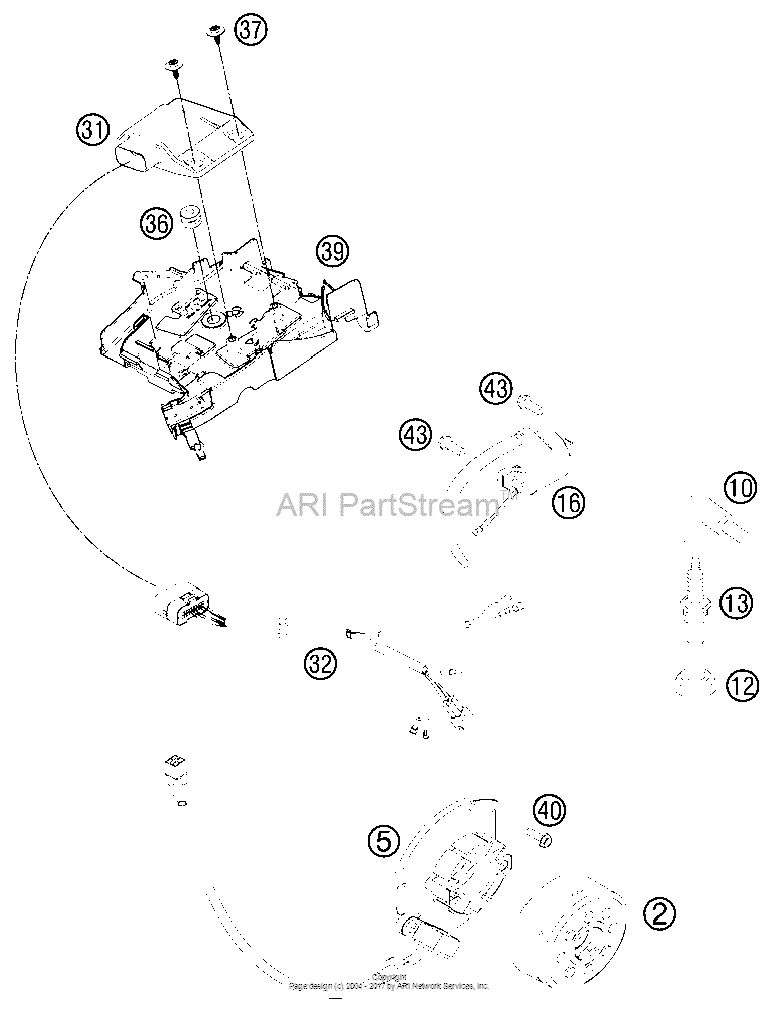

Ignition System Diagram KTM 150 150 SX
- Year
- 2013
- Sales region
- US/EU
- Engine Capacity
- 150
- Model
- 150 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
54739005000 Flywheel kokusan 2k-1/2k-4 '9797 |
54739005000 |
US $229.77 |
||
|
5
|
5
54839004000 Stator kokusan 2k-1 20062006 |
54839004000 |
US $208.64 |
||
|
10
|
10
47039090000 Spark plug cap ngk reinforc.0404 |
47039090000 |
US $24.26 |
||
|
12
|
12
50231012000 Sealing cup for spark plug04 |
50231012000 |
US $3.91 |
||
|
13
|
13
51539093000 Spark plug br9ecmvx04 |
51539093000 |
US $20.81 |
||
|
16
|
16
59039006000 Ignitioncoil "ig5128"04 |
59039006000 |
US $132.38 |
||
|
31
|
31
51539031100 Cdi unit 144 sx 0704 |
51539031100 |
US $283.70 |
||
|
32
|
32
54839032200 Wiring harness for cdi 2-st.0707 |
54839032200 |
US $68.10 |
||
|
36
|
36
58214069051 Rubber Grommet 16X10,8X3 0202 |
58214069051 |
US $4.52 |
||
|
37
|
37
0081645121 Ejot Delta Pt Screw 45X12-Z02 |
0081645121 |
US $1.17 |
||
|
39
|
39
51511094100 Electric Case02 |
51511094100 |
US $6.38 |
||
|
40
|
40
0025050166 Hh collar screw m5x16 tx30TX30 |
0025050166 |
US $2.60 |
||
|
43
|
43
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
