	Description	OEM Part #	Price
3	3 48600811S Adjusting Knob + Screw 11	48600811S	US $3.52
12	12 48600736 Outer tube l577 d54/60mm 2l 11	48600736	US $435.66
13	13 48600698 Fork protection ring 08 08	48600698	US $9.57
15	15 48601009 Guiding Bush 48X52X12 R11 08	48601009	US $13.23
16	16 48600013 Support ring 50 x 57,6 x 1,5 08	48600013	US $11.37
17	17 48600969 Oil seal ring d45 skf 08	48600969	US $14.11
	replacement
17	17 S604800001000C1 Oil Seal Ring 48X57,8X9,5 03 08	S604800001000C1	US $14.11
18	18 48600070 Lock washer sb58 08	48600070	US $2.35
19	19 48600968 Dust seal dl d48 skf 08	48600968	US $23.05
	replacement
19	19 48601178 Dust Seal Dl48X58,4X5,7 Red 08	48601178	US $23.05
22	22 48601008 Guiding Bush 47X49X20 R11 08	48601008	US $13.23
24	24 48600281 Membrane 08	48600281	US $51.26
26	26 48600301 O-ring nbr 9,5x1,5 08	48600301	US $4.66
27	27 46810811 O-ring nbr 17x2 pa 08	46810811	US $2.62
28	28 48600280S Screw bush m20x1 l=33 cpl. 08	48600280S	US $68.20
	replacement
28	28 48600280E SCREW BUSH M20X1 L=33 CPL. 08	48600280E	US $57.51
29	29 48600275 Copper washer 20,5x26x1 08	48600275	US $7.41
30	30 48600269 Adjusting tube l=371 08	48600269	US $23.41
31	31 48600464 Piston rod sxs 2005 2005	48600464	US $134.74
32	32 48600459 Counternut m12x1 ws17 2005	48600459	US $21.05
33	33 48600887 Rebound needle sx 2005	48600887	US $5.39
34	34 48600298 O-ring 2x1,5 nbr 2005	48600298	US $4.28
35	35 48600444 Rebound spring c=4n/mm 2005	48600444	US $3.52
38	38 91410010S Spring d43.2 l485 5.2n/mm As Required	91410010S	US $223.13
38	38 91410027S Spring 4,4 n/mm set d=5,1mm As Required	91410027S	US $210.17
38	38 91410028S Spring 4,6 n/mm set d=5,1mm As Required	91410028S	US $210.17
38	38 91410029S Polished Spring 4,8 N/mm As Required	91410029S	—
	replacement
38	38 91410020S Spring 4,8N/mm Set D=5,25 Mm As Required	91410020S	US $188.29
38	38 91410030S Spring 5,0 n/mm As Required	91410030S	US $210.17
38	38 91410059S Spring 4,0 n/mm set As Required	91410059S	US $210.17
38	38 91410060S Spring 4,2 n/mm set d=5,0mm As Required	91410060S	US $188.29
39	39 48600456 Spacer 43x35x2,5 As Required	48600456	US $28.70
39	39 48600457 Spacer 43x35x5 As Required	48600457	US $28.70
39	39 48600458 Spacer 43x35x1,5 As Required	48600458	US $28.70
40	40 48600525 Guiding bush rebound spring As Required	48600525	US $24.72
42	42 48600520 Spring support As Required	48600520	US $51.90
43	43 48600299 O-ring 6x1,2 nbr As Required	48600299	US $3.52
44	44 48600578 Spring reb. l=32 c=37 di=13,9 As Required	48600578	US $8.25
45	45 48600576 Piston rod rebound As Required	48600576	US $14.28
47	47 48600382 Shuttle valve spring c=0,4 As Required	48600382	US $2.67
48	48 48600519S3 Membrane holder As Required	48600519S3	US $324.19
	replacement
48	48 48600519E3 MEMBRANE HOLDER WP As Required	48600519E3	US $347.60
49	49 48600512 Lock washer d=25,5 As Required	48600512	US $4.51
50	50 48600542 Ah screw m4x6 As Required	48600542	US $1.77
51	51 46811499 O-ring nbr 21x2 As Required	46811499	US $1.48
52	52 48600047 Piston compression d=27,9 As Required	48600047	US $49.96
53	53 50180222 O-ring nbr 4x1,5 As Required	50180222	US $1.02
54	54 48600977S Pin Kit As Required	48600977S	US $30.75
55	55 40540486 Nut m6x0,5 rebound As Required	40540486	US $5.20
56	56 48600744 Guide ring 44 x39 As Required	48600744	US $5.12
57	57 48600577 Ring spring-support As Required	48600577	US $7.99
59	59 48600113 Washer 32x42x2,5 As Required	48600113	US $11.58
60	60 48600863SA Axle clamp left + tube cpl. As Required	48600863SA	US $726.16
61	61 48600864SA Axle clamp right + tube cpl. As Required	48600864SA	US $593.59
62	62 0025080256 Hh Collar Screw M8X25 Tx40 As Required	0025080256	US $4.10
63	63 48601169 Nut Valve M6X0,5 As Required	48601169	US $6.55
64	64 48600202 Spring check valve d=0,7 As Required	48600202	US $2.28
69	69 48600509 Piston rod compression As Required	48600509	US $20.60
71	71 48600575 Piston rebound sx 2007 2007	48600575	US $26.96
72	72 48600455 Piston ring 5x1x68 2007	48600455	US $13.80
74	74 48601056 Ring 23,45X8,9 2007	48601056	US $8.43
75	75 48600829 Shaft seal ring 12mm 2007	48600829	US $8.72
76	76 48601055S Screw Sleeve M24,5X1 Cpl 2007	48601055S	US $31.30
77	77 48600430 Du bush for piston rod 2007	48600430	US $5.53
78	78 48600709 Check valve stop 2007	48600709	US $20.91
79	79 48600446 Lock washer d=20 2007	48600446	US $3.52
81	81 15080017 Silicon cap 2007	15080017	US $4.39
82	82 48600692 Rubber cap d=26,4 2007	48600692	US $5.90
83	83 48601166S1 Fork Oil Sae4 5L 2007	48601166S1	US $218.08
84	84 40140024 O-ring nbr 43x2 2007	40140024	US $3.32
85	85 48600516S1 Screw cap cpl. l=125 2007	48600516S1	US $115.79
	replacement
85	85 48600516E1 SCREW CAP L=125 2007	48600516E1	US $108.49
87	87 48600526 Screw m4x10 2007	48600526	US $1.48
88	88 48600514 Membrane sleeve 2007	48600514	US $4.54
98	98 T511 Silicone grease f. dust stri 2007	T511	US $132.91
99	99 R14020 Repair Kit Fork 2007	R14020	US $125.21
	replacement
99	99 R14053 REPAIR KIT FORK 2007	R14053	US $125.21

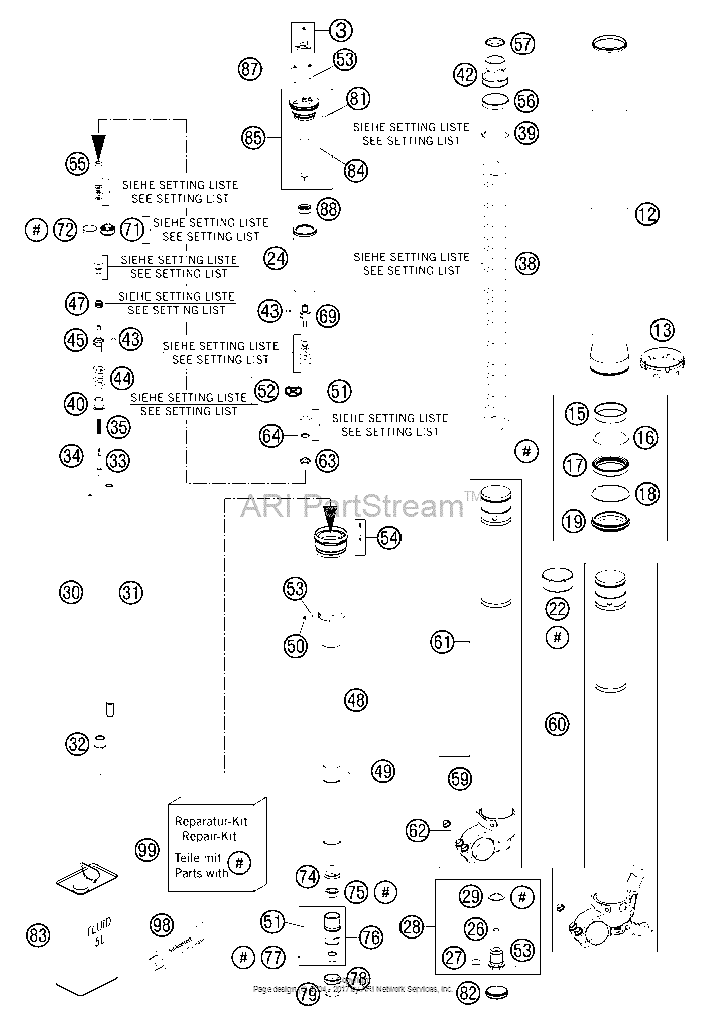

Front Fork Disassembled Diagram KTM 150 150 SX U.S.A. 18078688-939335

Front Fork Disassembled Diagram KTM 150 150 SX U.S.A. 18078688-939335
