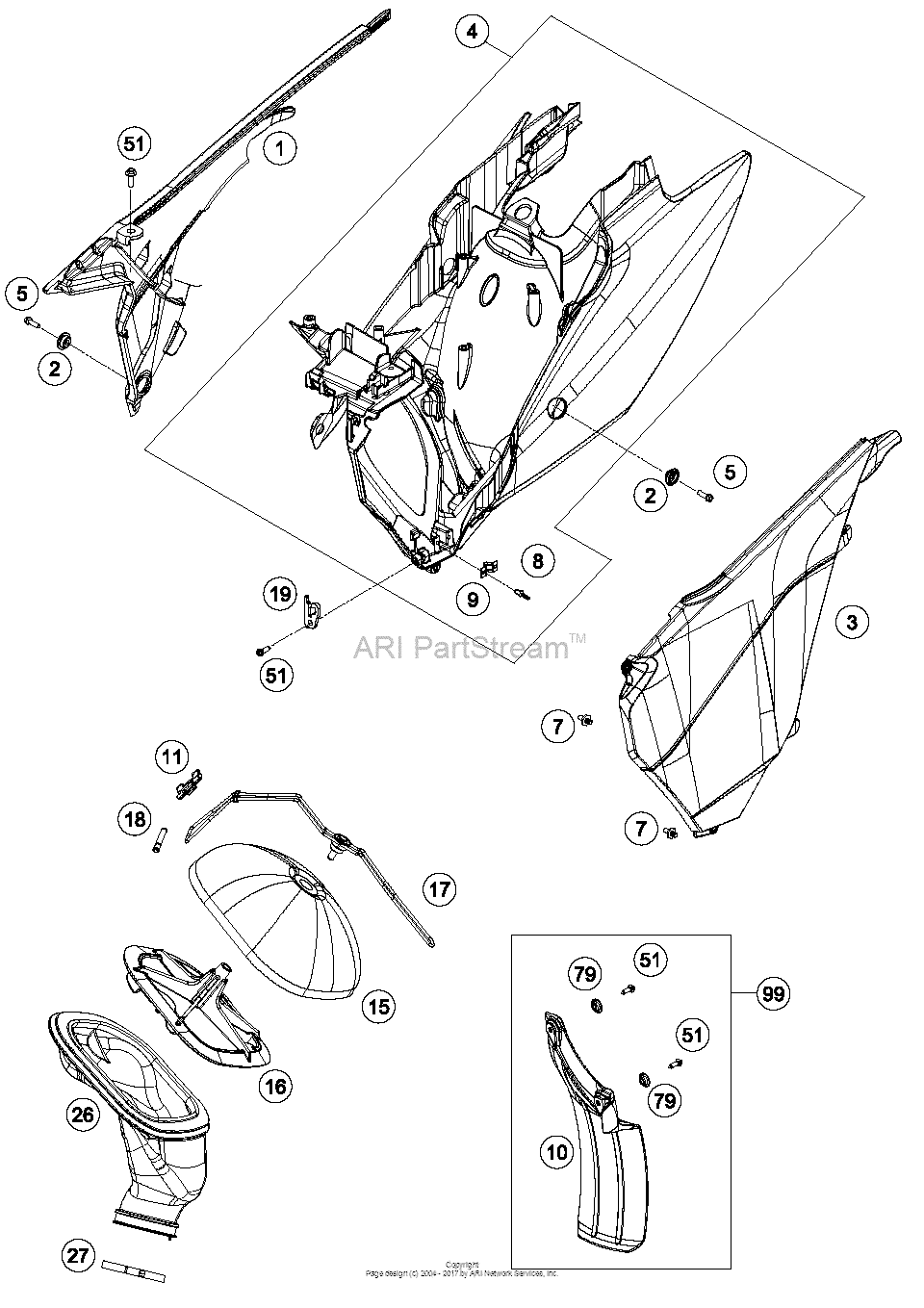

Air Filter Diagram KTM 150 150 XC
- Year
- 2014
- Sales region
- US/EU
- Engine Capacity
- 150
- Model
- 150 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7770600400004C Air Box Cover R/s Sx 1414 |
7770600400004C |
US $26.67 |
||
|
2
|
2
77308013010 Collar bush. f.rear fender 0707 |
77308013010 |
US $4.35 |
||
|
3
|
3
7770600300004C Air Box Cover L/s Sx 1414 |
7770600300004C |
US $26.67 |
||
|
4
|
4
7770600104428 Filter Box Cpl. White 1313 |
7770600104428 |
US $62.97 |
||
|
5
|
5
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
7
|
7
54806008051 Quick release-nipple 0303 |
54806008051 |
US $2.04 |
||
|
8
|
8
54806108052 Blind rivet 3,3x9,7 grooved 0404 |
54806108052 |
US $1.21 |
||
|
9
|
9
54806008050 Quick release-spring hanger04 |
54806008050 |
US $1.33 |
||
|
10
|
10
77306010000 Fender for filter box04 |
77306010000 |
US $19.60 |
||
|
11
|
11
77706017052 Air Box Clip04 |
77706017052 |
US $9.18 |
||
|
15
|
15
77206015000 Air Filter04 |
77206015000 |
US $38.10 |
||
|
16
|
16
54806516000 Filter Carrier04 |
54806516000 |
US $8.23 |
||
|
17
|
17
77206017000 Filter Support Cpl. 1111 |
77206017000 |
US $21.35 |
||
|
18
|
18
77306018000 Filter support bush 0707 |
77306018000 |
US $3.16 |
||
|
19
|
19
77206019000 Fasten. Device Filter S. Sx 1111 |
77206019000 |
US $8.08 |
||
|
26
|
26
51506126000 Caburetor Connect. Boot11 |
51506126000 |
US $44.42 |
||
|
27
|
27
51006027000 Hose Clamp 50-70Mm11 |
51006027000 |
US $5.66 |
||
|
51
|
51
0017060206 Screw F. Plastic K60X20Al Sw611 |
0017060206 |
US $2.89 |
||
|
79
|
79
77304066050 Bushing f. chain sliding pr.0711 |
77304066050 |
US $1.60 |
||
|
99
|
99
77306010010 Splash Protector Kit Sx/excAs Required |
77306010010 |
US $24.70 |
