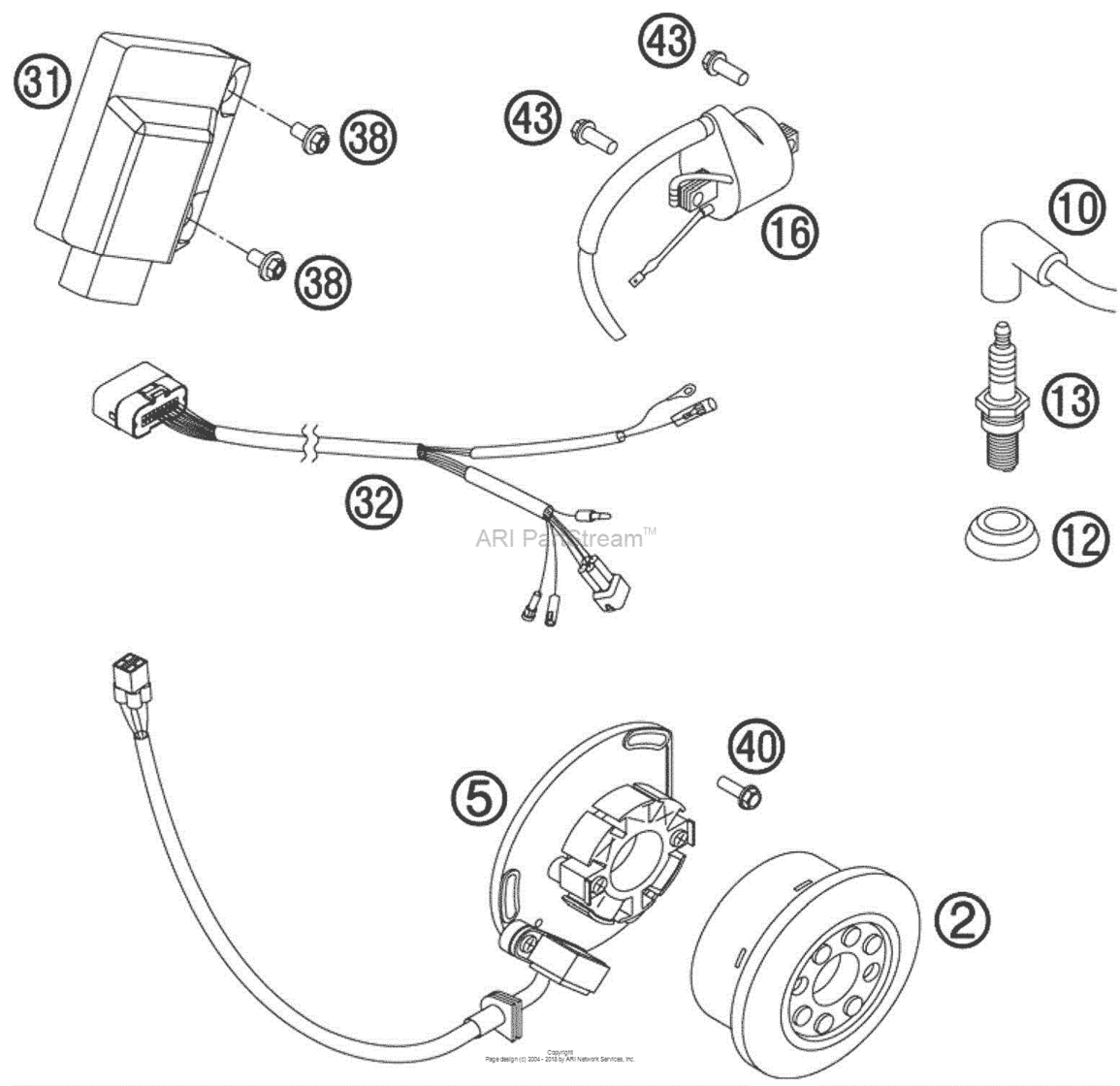

Ignition System Diagram KTM 150 150 XC
- Year
- 2010
- Sales region
- US/EU
- Engine Capacity
- 150
- Model
- 150 XC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
54739005144 Flywheel kokusan 2k-2 cpl. '97'97 |
54739005144 |
US $258.71 |
||
|
5
|
5
54839104000 Stator kokusan 2k-2 20052005 |
54839104000 |
US $270.66 |
||
|
10
|
10
47039090000 Spark plug cap ngk reinforc.0404 |
47039090000 |
US $24.26 |
||
|
12
|
12
50231012000 Sealing cup for spark plug04 |
50231012000 |
US $3.91 |
||
|
13
|
13
51539093000 Spark plug br9ecmvx04 |
51539093000 |
US $20.81 |
||
|
16
|
16
59039006000 Ignitioncoil "ig5128"04 |
59039006000 |
US $132.38 |
||
|
31
|
31
51539031300 Electronicbox 150xc 1004 |
51539031300 |
US $279.43 |
||
|
32
|
32
54839032300 Wiring harness f.cdi 2-st.sx0707 |
54839032300 |
US $67.86 |
||
|
38
|
38
0023060123 Collar screw m6x12 txTX |
0023060123 |
US $0.87 |
||
|
40
|
40
0025050166 Hh collar screw m5x16 tx30TX30 |
0025050166 |
US $2.60 |
||
|
43
|
43
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
