Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 48601633S1 Axle Clamp Oc R/s Cpl. & Tube As Required	48601633S1	US $552.72
2	2 48601632S1 Axle Clamp Oc L/s Cpl. & Tube As Required	48601632S1	US $552.72
3	3 48601671 Outer Tube L577 D54/60Mm 2L As Required	48601671	US $275.49
4	4 91410099S Spring 3,8N/mm Set D=4,9Mm As Required	91410099S	US $223.13
4	4 91410100S Spring 4,0N/mm Set D=4,9Mm As Required	91410100S	US $223.13
4	4 91410101S Spring 4,2N/mm Set D=4,9Mm As Required	91410101S	US $223.13
4	4 91410102S Spring 4,4N/mm Set D=4,9Mm As Required	91410102S	US $223.13
4	4 91410103S Spring 4,6N/mm Set D=4,9Mm As Required	91410103S	US $223.13
4	4 91410104S Spring 4,8N/mm Set D=4,9Mm As Required	91410104S	US $223.13
5	5 R14026 Spring Spacer Kit As Required	R14026	US $80.43
6	6 48601631S Screw Cap M51X 1,5 Reb. Cpl As Required	48601631S	US $108.29
7	7 48601844S Screw Cap M51X1,5 Compression Cpl As Required	48601844S	US $107.80
8	8 R14033 Screw Cap Small Part Kit As Required	R14033	US $37.15
9	9 48600048 O-ring nbr 46 x 2 As Required	48600048	US $1.94
10	10 R14046 Sealing Kit As Required	R14046	—
	replacement
10	10 RP10048T Gasket Kit Cpl As Required	RP10048T	US $85.99
11	11 R14063 Fork Rep. Kit 48Mm Offroad As Required	R14063	—
12	12 48600763S1 Pipe&threaded Sleeve With Hole As Required	48600763S1	US $175.36
13	13 48600763S2 Pipe & Threaded Sleeve As Required	48600763S2	US $175.36
14	14 48600430 Du bush for piston rod As Required	48600430	US $5.53
15	15 48601843S Tap Compression Cpl As Required	48601843S	US $66.79
16	16 40540486 Nut m6x0,5 rebound As Required	40540486	US $5.20
17	17 48600575S1 Piston Cpl As Required	48600575S1	US $29.43
18	18 48600382 Shuttle valve spring c=0,4 As Required	48600382	US $2.67
19	19 48600576 Piston rod rebound As Required	48600576	US $14.28
20	20 48600299 O-ring 6x1,2 nbr As Required	48600299	US $3.52
21	21 48600578S Spring Rebound + Spring Guide As Required	48600578S	US $7.06
22	22 48601298 Spring Support As Required	48601298	US $9.20
23	23 48600277S Adjusting Needle Cpl As Required	48600277S	US $11.95
24	24 48601558S Compression Adj. Needle Cpl As Required	48601558S	US $15.67
25	25 48600568 Piston rod d=12 l=554 alu As Required	48600568	US $133.09
26	26 48601786 Adjusting Pipe As Required	48601786	US $30.82
27	27 48601556S Hydr. Stop L200 Dia31,9 Cpl.07 As Required	48601556S	US $59.21
28	28 48600163 Check valve nut m6x0,5 d=2 As Required	48600163	US $13.80
29	29 48600202 Spring check valve d=0,7 As Required	48600202	US $2.28
30	30 48600047S Piston + O-Ring As Required	48600047S	US $16.32
31	31 48601553S Screw Cap Oc Split Cpl As Required	48601553S	US $34.71
32	32 04500003 O-Ring 11X2,5 Nbr 70 Sh Ptfe As Required	04500003	US $1.14
33	33 48601702 Washer 27,5X33X0,3 As Required	48601702	US $2.48
34	34 0025080256 Hh Collar Screw M8X25 Tx40 TX40	0025080256	US $4.10
98	98 T14034 Fuchs Grease Ipr (250G) TX40	T14034	US $35.34
99	99 48601166S1 Fork Oil Sae4 5L TX40	48601166S1	US $218.08

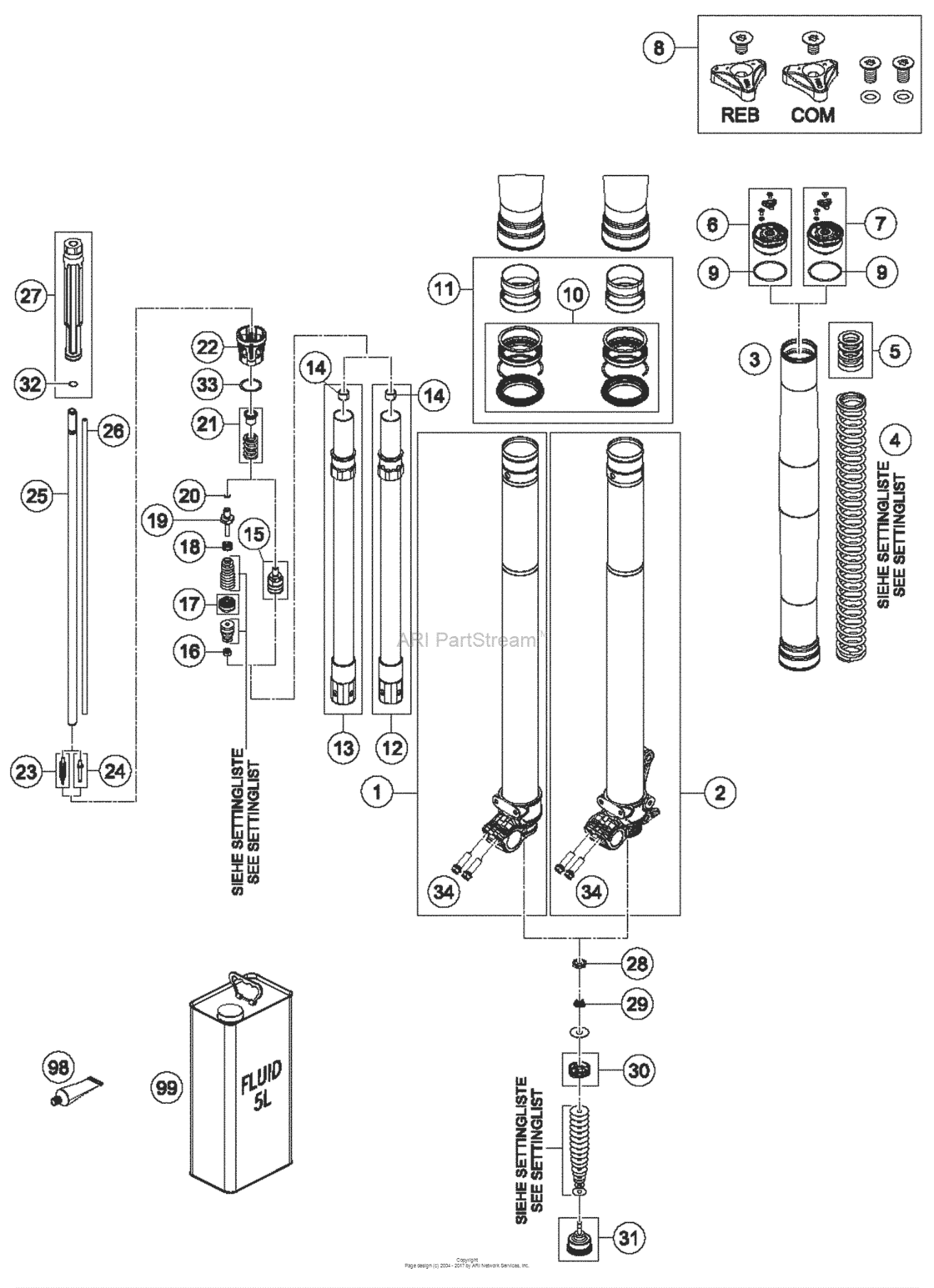

Front Fork Disassembled Diagram KTM 150 150 XC-W US/EU 18078906-939347

Front Fork Disassembled Diagram KTM 150 150 XC-W US/EU 18078906-939347
