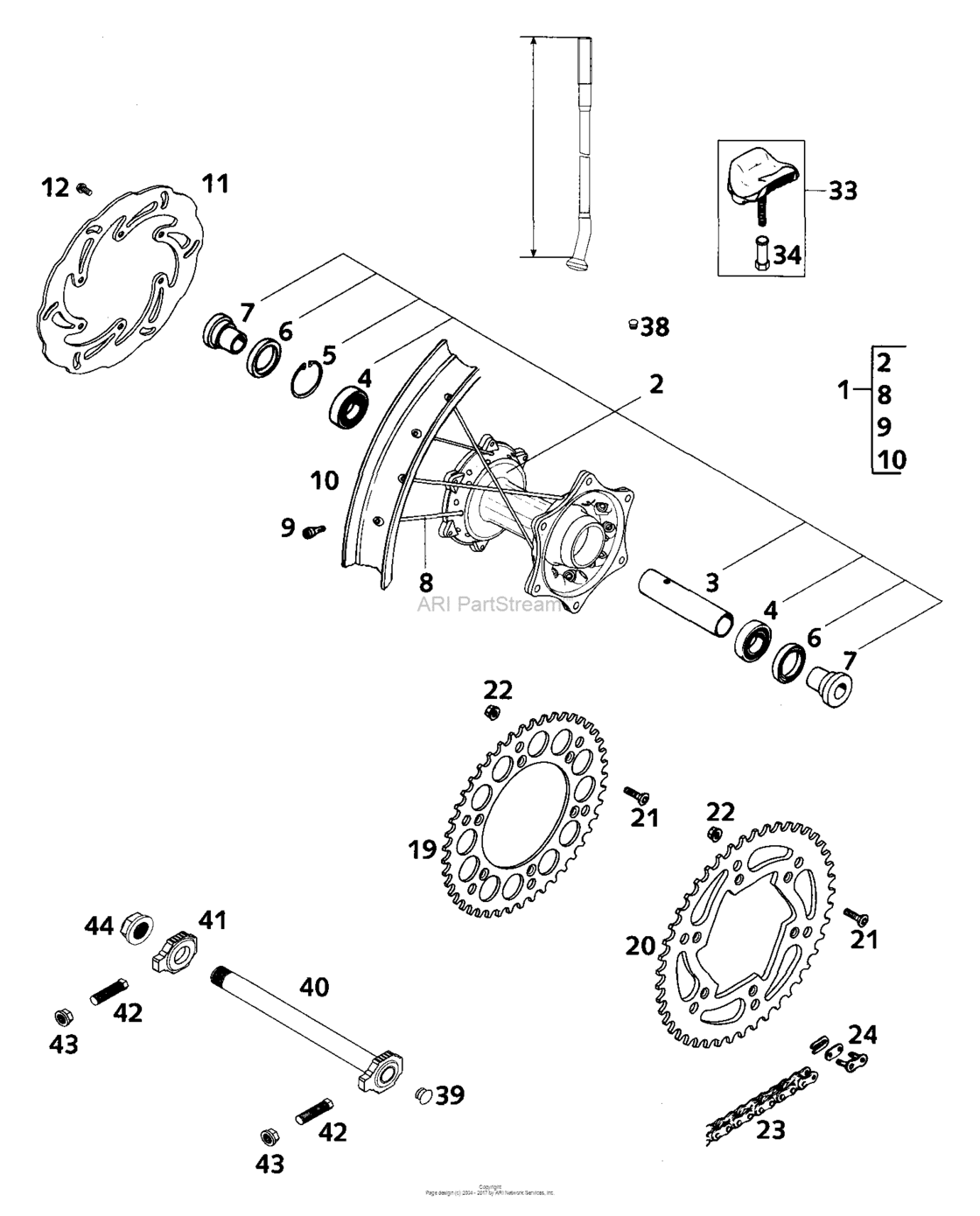

Rear Wheel Diagram KTM 200 200 EXC
- Year
- 2001
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 EXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50310001144
Rear Wheel Cpl. 2,15X19 Excel
FOR SPOILER 6X11X16X7,5 |
50310001144 |
— | ||
| replacement | |||||
|
1
|
1
8001000114491 REAR WHEEL CPL. 2,15X19" EXCELFOR SPOILER 6X11X16X7,5 |
8001000114491 |
US $805.58 |
||
|
1
|
1
50310001244
Rearwheel cpl.2.15x18"did 2000
FOR SPOILER 6X11X16X7,5 |
50310001244 |
— | ||
|
2
|
2
50310010044 Rearhub CplFOR SPOILER 6X11X16X7,5 |
50310010044 |
US $367.25 |
||
| replacement | |||||
|
2
|
2
26510010144 Rear hubFOR SPOILER 6X11X16X7,5 |
26510010144 |
US $396.81 |
||
|
3
|
3
56510011000
Bearing Distance Tube 121,5Mm
FOR SPOILER 6X11X16X7,5 |
56510011000 |
— | ||
| replacement | |||||
|
3
|
3
77710011000 Bearing Distance Tube 121,5MmFOR SPOILER 6X11X16X7,5 |
77710011000 |
US $19.06 |
||
|
4
|
4
0625060058 Gr.ball bear.6005 ddu2cg23s6nmFOR SPOILER 6X11X16X7,5 |
0625060058 |
US $23.17 |
||
|
5
|
5
0472047175 Circlip Din0472-47X1,75FOR SPOILER 6X11X16X7,5 |
0472047175 |
US $3.89 |
||
|
6
|
6
0760324771 Shaft Seal Ring 32X47X7 BslFOR SPOILER 6X11X16X7,5 |
0760324771 |
US $17.20 |
||
|
7
|
7
54610016000
Bushing For Hub 08
FOR SPOILER 6X11X16X7,5 |
54610016000 |
— | ||
| replacement | |||||
|
7
|
7
78010016000 Bushing for hub 08FOR SPOILER 6X11X16X7,5 |
78010016000 |
US $29.68 |
||
|
8
|
8
50310071207 Spoke M5X207-10G 19 DdeFOR SPOILER 6X11X16X7,5 |
50310071207 |
US $4.15 |
||
|
8
|
8
50310071197 Spoke M5X197-10G 18 DdeFOR SPOILER 6X11X16X7,5 |
50310071197 |
US $4.71 |
||
|
9
|
9
58309072000 Spoke Sipple Quadrax M5 Not AvailableFOR SPOILER 6X11X16X7,5 |
58309072000 |
US $2.35 |
||
| replacement | |||||
|
9
|
9
60310072000
SPOKE NIPPLE QUADRAX M5
FOR SPOILER 6X11X16X7,5 |
60310072000 |
— | ||
|
10
|
10
54610070100 Rear Rim 2,15X19 Excel Al4FOR SPOILER 6X11X16X7,5 |
54610070100 |
US $348.42 |
||
|
10
|
10
54610070300 Rear rim 2,15x18" didFOR SPOILER 6X11X16X7,5 |
54610070300 |
US $273.48 |
||
|
11
|
11
50310060000 Brake Disc Rear D=220Mm 2000FOR SPOILER 6X11X16X7,5 |
50310060000 |
US $139.01 |
||
|
12
|
12
59009062013 Special Screw M6X13 Ws=8 10.9FOR SPOILER 6X11X16X7,5 |
59009062013 |
US $2.24 |
||
|
19
|
19
58310051038 Rear Sprocket 38-TFOR SPOILER 6X11X16X7,5 |
58310051038 |
US $87.19 |
||
|
19
|
19
58310151040 Rear Sprocket 40-TFOR SPOILER 6X11X16X7,5 |
58310151040 |
US $87.19 |
||
|
19
|
19
58310051042 Rear Sprocket 42-TFOR SPOILER 6X11X16X7,5 |
58310051042 |
US $87.19 |
||
|
19
|
19
58310151045
Rear Sprocket 45-T
FOR SPOILER 6X11X16X7,5 |
58310151045 |
— | ||
| replacement | |||||
|
19
|
19
7771015104501 New Genuine PartFOR SPOILER 6X11X16X7,5 |
7771015104501 |
US $54.04 |
||
|
20
|
20
58310151048 Rear Sprocket 48-TFOR SPOILER 6X11X16X7,5 |
58310151048 |
US $87.19 |
||
|
20
|
20
58310151050 Rear Sprocket 50-TFOR SPOILER 6X11X16X7,5 |
58310151050 |
US $87.19 |
||
|
20
|
20
58310151052 Rear Sprocket 52-TFOR SPOILER 6X11X16X7,5 |
58310151052 |
US $84 |
||
| replacement | |||||
|
20
|
20
7771015105201 Rear Sprocket 52-TFOR SPOILER 6X11X16X7,5 |
7771015105201 |
US $54.04 |
||
|
21
|
21
54510052100
Counter-Sunk Screw Isa45 M8X26
FOR SPOILER 6X11X16X7,5 |
54510052100 |
— | ||
| replacement | |||||
|
21
|
21
0019080266S Counter-sunk screw isa45 m8x26FOR SPOILER 6X11X16X7,5 |
0019080266S |
US $2.23 |
||
|
22
|
22
54310086200 Self Locking Nut M8 10.9FOR SPOILER 6X11X16X7,5 |
54310086200 |
US $1.56 |
||
|
23
|
23
50010065000 Chain 5/8X1/4 MxFOR SPOILER 6X11X16X7,5 |
50010065000 |
US $115.86 |
||
| replacement | |||||
|
23
|
23
50310165118 Chain 5/8X1/4 MxFOR SPOILER 6X11X16X7,5 |
50310165118 |
US $89.56 |
||
|
23
|
23
50010065100 Superseded By 78010167118FOR SPOILER 6X11X16X7,5 |
50010065100 |
US $168.30 |
||
| replacement | |||||
|
23
|
23
50310800118
Superseded By 78010167118
FOR SPOILER 6X11X16X7,5 |
50310800118 |
— | ||
|
23
|
23
50010065001
Chain 5/8X1/4 /m
FOR SPOILER 6X11X16X7,5 |
50010065001 |
— | ||
|
23
|
23
50010065101
Chain /m
FOR SPOILER 6X11X16X7,5 |
50010065101 |
— | ||
|
24
|
24
50010066000 Connecting Link F. 50310165118FOR SPOILER 6X11X16X7,5 |
50010066000 |
US $11.25 |
||
| replacement | |||||
|
24
|
24
50310166000 Connecting Link F. 50310165118FOR SPOILER 6X11X16X7,5 |
50310166000 |
US $6.10 |
||
|
24
|
24
50010066100 Master Link 5/8X1/4 X-RingFOR SPOILER 6X11X16X7,5 |
50010066100 |
US $8.64 |
||
|
33
|
33
54010100100 Rim Lock 2,15FOR SPOILER 6X11X16X7,5 |
54010100100 |
US $33.01 |
||
| replacement | |||||
|
33
|
33
78110090000 Rim Lock 2,15FOR SPOILER 6X11X16X7,5 |
78110090000 |
US $24.77 |
||
|
34
|
34
50310090050 Nut for wheel holder '96FOR SPOILER 6X11X16X7,5 |
50310090050 |
US $4.01 |
||
| replacement | |||||
|
34
|
34
77110090050 Nut For Wheel HolderFOR SPOILER 6X11X16X7,5 |
77110090050 |
US $3.60 |
||
|
38
|
38
55003135000 Plug For RimFOR SPOILER 6X11X16X7,5 |
55003135000 |
US $1.02 |
||
|
39
|
39
50210086000 Covering cap sfl16FOR SPOILER 6X11X16X7,5 |
50210086000 |
US $3.54 |
||
|
40
|
40
50310085044
Wheel Spindle Re. Cpl.265Mm 07
FOR SPOILER 6X11X16X7,5 |
50310085044 |
— | ||
| replacement | |||||
|
40
|
40
77310085044 Wheel Spindle Re. Cpl.265Mm 07FOR SPOILER 6X11X16X7,5 |
77310085044 |
US $65.35 |
||
|
41
|
41
50310084000 Chain tensioner r/s 2000FOR SPOILER 6X11X16X7,5 |
50310084000 |
US $18.45 |
||
|
42
|
42
50304040000
Screw M10X1,25X50 Ws=10
FOR SPOILER 6X11X16X7,5 |
50304040000 |
— | ||
| replacement | |||||
|
42
|
42
50304040100 Screw M10X1,25X50 Ws=10FOR SPOILER 6X11X16X7,5 |
50304040100 |
US $6.61 |
||
|
43
|
43
58414030000 Hh collar nut m10x1,25 ws=13FOR SPOILER 6X11X16X7,5 |
58414030000 |
US $2.60 |
||
|
44
|
44
50310099000 Hexagon Nut M20X1,5 '98FOR SPOILER 6X11X16X7,5 |
50310099000 |
US $19.04 |
||
