Speedometer Exc Diagram KTM 200 200 Jackpinner
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 Jackpinner
Difficulties in parts search?

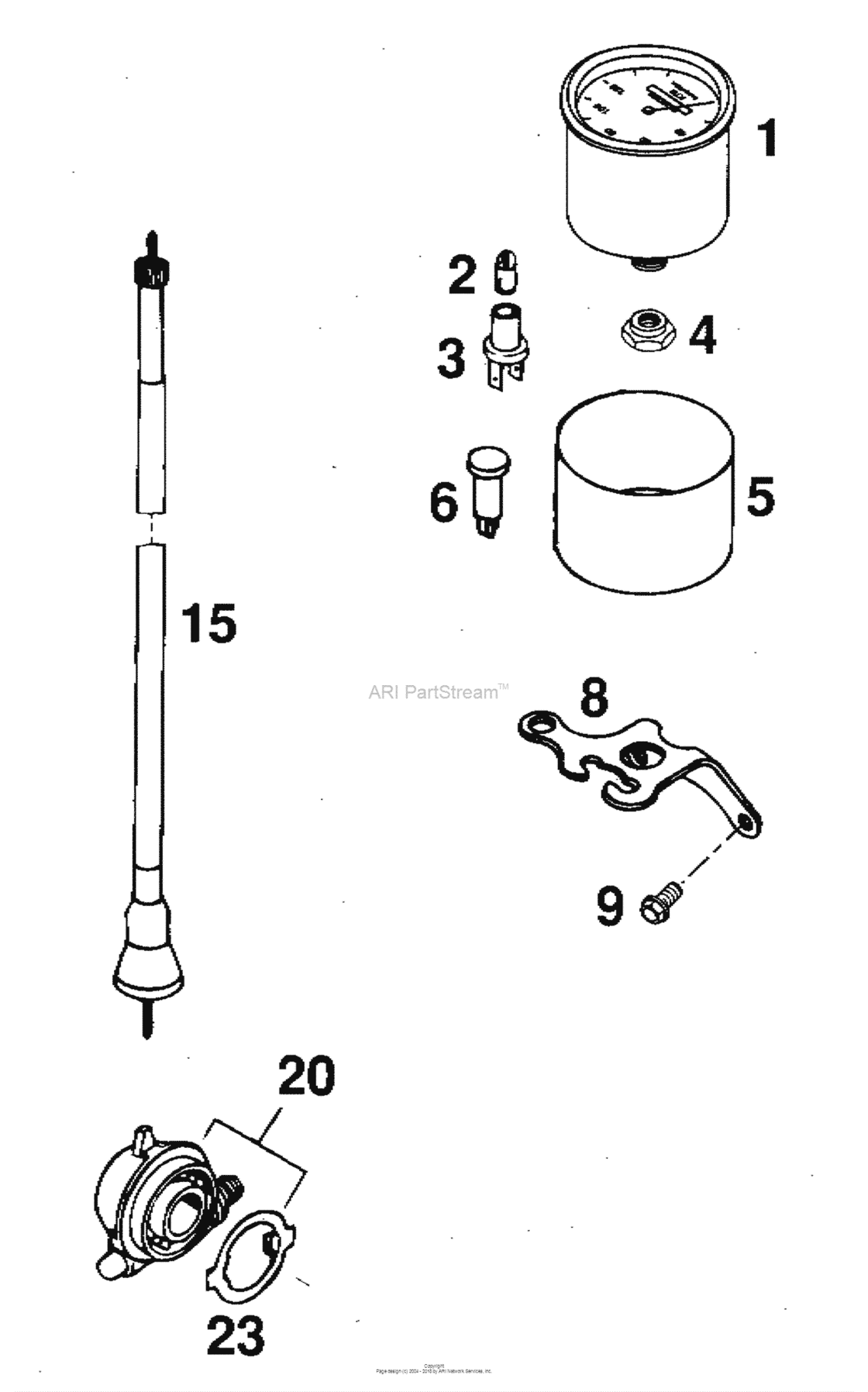

Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55011080000
Speedometer vdo 140 km/h
92 |
55011080000 |
— | ||
|
2
|
2
44111025000
Bulb 125/250/300/440
92 |
44111025000 |
— | ||
|
3
|
3
33011069000
Socket
92 |
33011069000 |
— | ||
|
4
|
4
55011080050
Collar Nut
WS=17 |
55011080050 |
— | ||
|
5
|
5
57011068000
Speedometer housing vdo
WS=17 |
57011068000 |
— | ||
|
6
|
6
58011021100 Indicator light blue 12v roundWS=17 |
58011021100 |
US $14.23 |
||
|
8
|
8
54611120200 Speedometer Bracket Vdo/odo'9595 |
54611120200 |
US $8.52 |
||
|
9
|
9
15060123
Hh Collar Screw M6X12,ws8
SW=8 |
15060123 |
— | ||
|
15
|
15
56511188700
Speedom.cable m10/m12 960mm'96
96 |
56511188700 |
— | ||
|
20
|
20
58111152100
Speedometer Drive
92 |
58111152100 |
— | ||
|
23
|
23
58111053100 Driving dog f.speedom.drive'9292 |
58111053100 |
US $6.83 |
