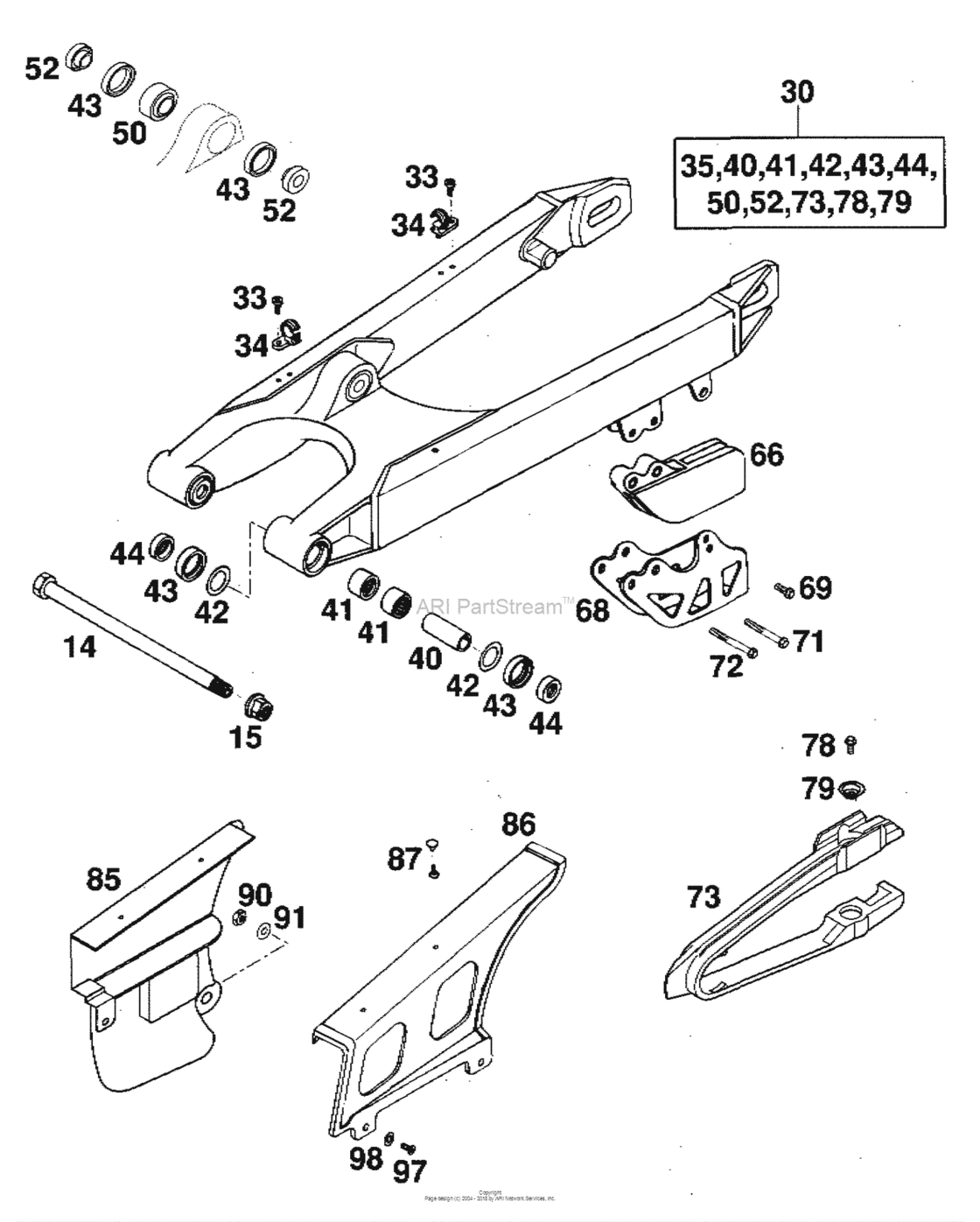

Swingarm Diagram KTM 200 200 Jackpinner
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 Jackpinner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14
|
14
54603014000 Swingarm Bolt Kpl. L=25392 |
54603014000 |
US $91.09 |
||
| replacement | |||||
|
14
|
14
54603014100 Swingarm bolt kpl. l=25392 |
54603014100 |
US $38.78 |
||
|
15
|
15
54603015000 Self locking nut m14x1,5 ws=19WS=19 |
54603015000 |
US $4.85 |
||
|
30
|
30
50304030044 Swingarm Cpl98 |
50304030044 |
US $632.72 |
||
| replacement | |||||
|
30
|
30
50304030144
Swingarm cpl.pds 125-380 '99
98 |
50304030144 |
— | ||
|
33
|
33
0010050103 Special Screw M 5,0X1098 |
0010050103 |
US $0.85 |
||
|
34
|
34
54611076100 Retain.clamp For Brake Hose'9696 |
54611076100 |
US $1.09 |
||
|
40
|
40
54603081000 Bushing sleeve 15 x 20 x 4896 |
54603081000 |
US $25.01 |
||
|
41
|
41
54603097000 Needle bush hk 201696 |
54603097000 |
US $15.33 |
||
|
42
|
42
54603036000 Stop Disk 22,2X31,7X196 |
54603036000 |
US $1.55 |
||
|
43
|
43
0760253270 Shaft seal ring 25x32x796 |
0760253270 |
US $6.51 |
||
|
44
|
44
54603090000 Bucket f.shaftsealring 15x25x996 |
54603090000 |
US $11.63 |
||
|
50
|
50
50304090000 Pivot bearing for pds '9898 |
50304090000 |
US $63.75 |
||
|
52
|
52
50304091000 Bush f. heim joint 25x13,25'9898 |
50304091000 |
US $15.27 |
||
| replacement | |||||
|
52
|
52
51504091000 BUSHING PIVOT BEARING 25X13,2598 |
51504091000 |
US $8.76 |
||
|
66
|
66
54607066100 Chain Guide Rear '9494 |
54607066100 |
US $41.46 |
||
|
68
|
68
54607070100
Retaining Plate Cpl
94 |
54607070100 |
— | ||
| replacement | |||||
|
68
|
68
54607070144 Retaining plate cpl.94 |
54607070144 |
US $30.38 |
||
|
69
|
69
0015060163 Hh Collar Screw M 6X16 Ws=8WS=8 |
0015060163 |
US $2.23 |
||
|
71
|
71
0015060503
Hh collar screw m 6x50 ws=8
WS=8 |
0015060503 |
— | ||
| replacement | |||||
|
71
|
71
0025060506 Hh collar screw m6x50 tx30WS=8 |
0025060506 |
US $3.30 |
||
|
72
|
72
0015060553 Hh collar screw m 6x55 ws=8WS=8 |
0015060553 |
US $2.09 |
||
|
73
|
73
50304066000
Chain Guard 05
97 |
50304066000 |
— | ||
| replacement | |||||
|
73
|
73
50304066100 Chain Guard 0597 |
50304066100 |
US $35.17 |
||
|
78
|
78
0009050103
Special screw m 5,0x10
97 |
0009050103 |
— | ||
| replacement | |||||
|
78
|
78
0009050106 Ejot Spiral Screw Sf M5X10-K97 |
0009050106 |
US $2.60 |
||
|
79
|
79
72210079000 Bucket97 |
72210079000 |
US $2.72 |
||
|
85
|
85
50304060000 Chain guard exc '9797 |
50304060000 |
US $7.97 |
||
|
86
|
86
54607460000
Chain guard large egs
90 |
54607460000 |
— | ||
|
87
|
87
20012062055 Hollow rivet two parts90 |
20012062055 |
US $2.87 |
||
|
90
|
90
0985060003 Self Lock. Nut Din0985-M 690 |
0985060003 |
US $2.60 |
||
|
91
|
91
0021060003 Washer Din9021-A 6,490 |
0021060003 |
US $3.26 |
||
|
97
|
97
0010050103 Special Screw M 5,0X1090 |
0010050103 |
US $0.85 |
||
|
98
|
98
0021050003 Washer din9021-a 5,390 |
0021050003 |
US $1.29 |
||
