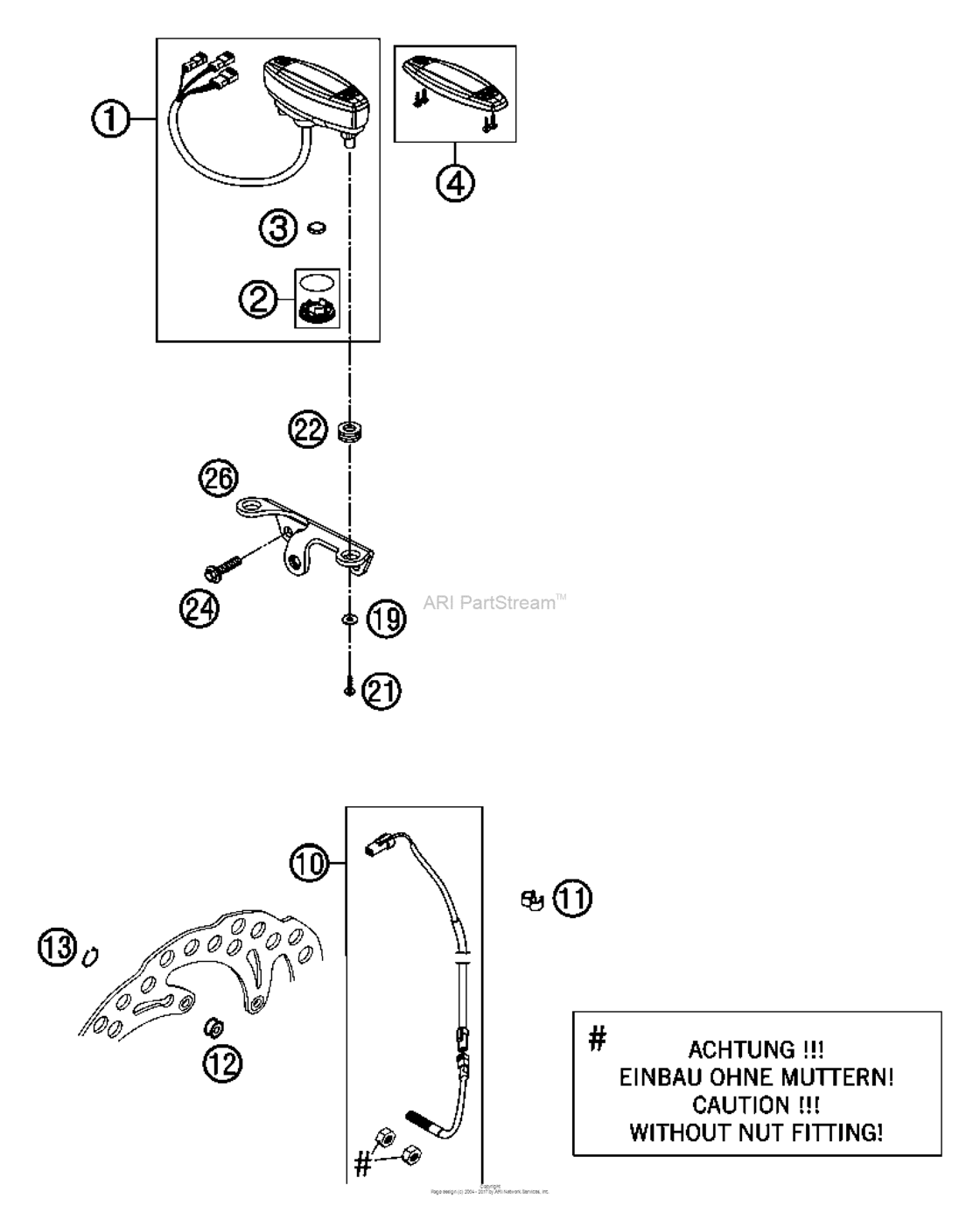

Speedometer Diagram KTM 200 200 XC-W
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54814069000 Speedometer km/h f. 21" 2005(As required) |
54814069000 |
US $269.99 |
||
|
2
|
2
54814069010 Battery cover f. speedom. 2005(As required) |
54814069010 |
US $12.41 |
||
|
3
|
3
58314068000 Battery f. speedom. m.a.e. 02(As required) |
58314068000 |
US $9.64 |
||
|
4
|
4
54814069020 Speedometer top part 05(As required) |
54814069020 |
US $30.94 |
||
|
10
|
10
54814068100 Cable for digital speedom. 06(As required) |
54814068100 |
US $90.73 |
||
|
11
|
11
55011022100 Clamp d=6/8mm, black(As required) |
55011022100 |
US $1.07 |
||
|
12
|
12
54814069050 Magnet For Digital Speedom. 03(As required) |
54814069050 |
US $23.21 |
||
|
13
|
13
0471009104 Circlip Din0471- 9X1 Inox(As required) |
0471009104 |
US $2.35 |
||
|
19
|
19
0021050003 Washer din9021-a 5,3(As required) |
0021050003 |
US $1.29 |
||
|
21
|
21
0016050121
Screw for plastic 50x12
(As required) |
0016050121 |
— | ||
| replacement | |||||
|
21
|
21
0081050121 Screw for plastic k50x12 t20(As required) |
0081050121 |
US $1.19 |
||
|
22
|
22
58214069051 Rubber Grommet 16X10,8X3 02(As required) |
58214069051 |
US $4.52 |
||
|
24
|
24
0014060253 Hh collar screw m 6x25 ws=8(As required) |
0014060253 |
US $1.19 |
||
|
26
|
26
52314060000 Speedometer bracket 06(As required) |
52314060000 |
US $17.27 |
||
