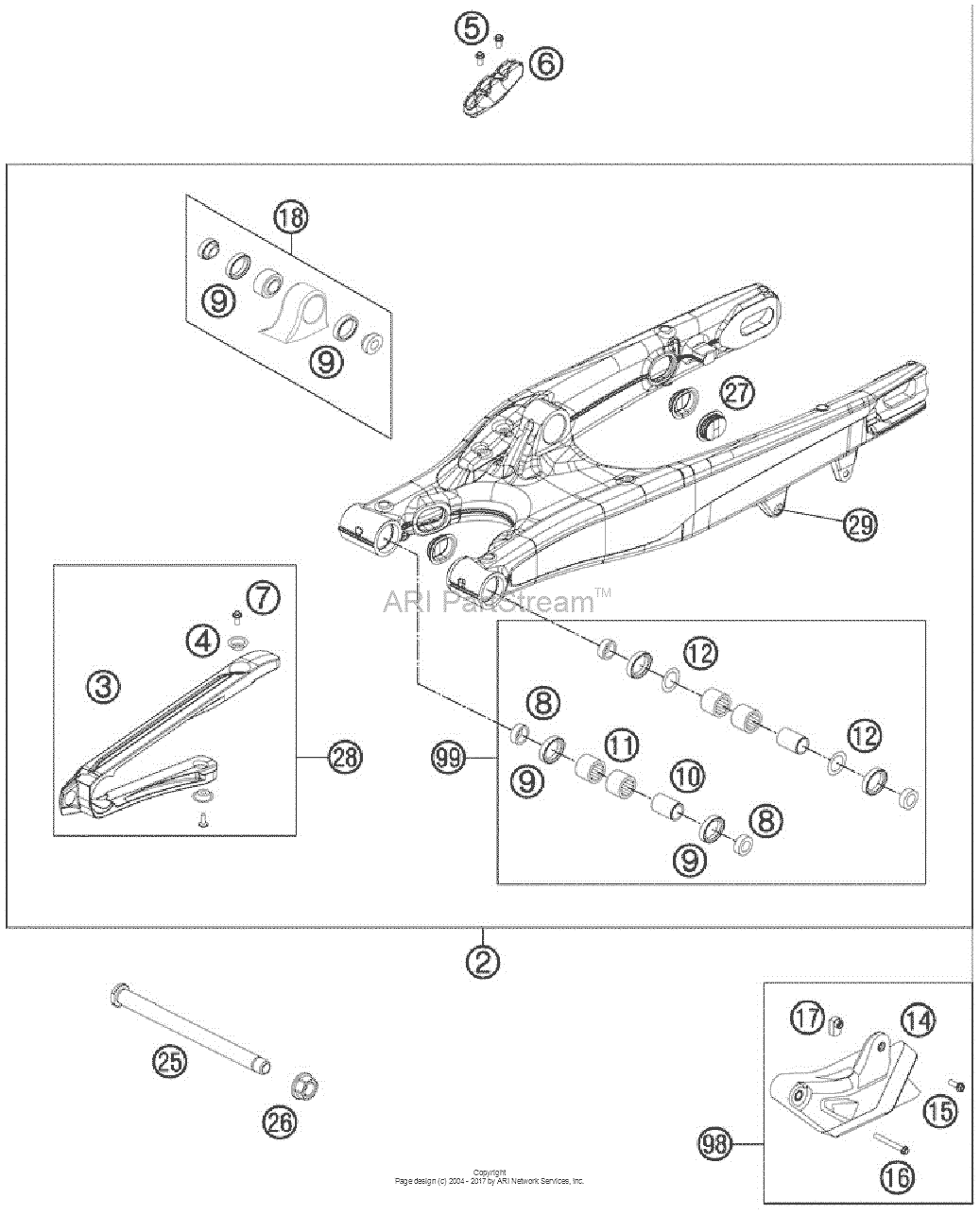

Swing Arm Diagram KTM 200 200 XC-W
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 200
- Model
- 200 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
51504030044 Swing Arm Cpl. Pds 20112011 |
51504030044 |
US $706.13 |
||
|
3
|
3
51504066000 Chain Slid.guard Pds2011 |
51504066000 |
US $21.10 |
||
|
4
|
4
77304066050 Bushing f. chain sliding pr.072011 |
77304066050 |
US $1.60 |
||
|
5
|
5
0009050106 Ejot Spiral Screw Sf M5X10-K2011 |
0009050106 |
US $2.60 |
||
|
6
|
6
77313047000 Brake hose guide lower 072011 |
77313047000 |
US $4.61 |
||
|
7
|
7
59009062013 Special Screw M6X13 Ws=8 10.910.9 |
59009062013 |
US $2.24 |
||
|
8
|
8
54804034000
Bucket f. shaft seal ring 03
03 |
54804034000 |
— | ||
| replacement | |||||
|
8
|
8
77704034000 Support F. Shaft Seal Ring 1603 |
77704034000 |
US $13.07 |
||
|
9
|
9
0760253270 Shaft seal ring 25x32x703 |
0760253270 |
US $6.51 |
||
|
10
|
10
54804032000 Bushing sleeve f. swing arm 0303 |
54804032000 |
US $10.66 |
||
|
11
|
11
58033097000 Needle bearing hk 221603 |
58033097000 |
US $13.94 |
||
|
12
|
12
54603036000 Stop Disk 22,2X31,7X103 |
54603036000 |
US $1.55 |
||
|
14
|
14
78004070100
Chain guide cpl.
03 |
78004070100 |
— | ||
| replacement | |||||
|
14
|
14
78104070100 Chain Guide Exc03 |
78104070100 |
US $48.14 |
||
|
15
|
15
59009062019 Special screw m6x19 ws=8 10.910.9 |
59009062019 |
US $1.22 |
||
|
16
|
16
0025060456 Hh collar screw m6x45 tx30TX30 |
0025060456 |
US $1.89 |
||
|
17
|
17
77304070030 Insertion nut f. chain guideTX30 |
77304070030 |
US $7.51 |
||
|
18
|
18
50304090144 Pivot bearing+bush. pds '11'11 |
50304090144 |
US $73.64 |
||
|
25
|
25
77304037000 Swingarm Bolt M16X1,5 0707 |
77304037000 |
US $52 |
||
|
26
|
26
54804038000 Self Lock.nut M16X1,5 Ws=19 0303 |
54804038000 |
US $1.05 |
||
|
27
|
27
77204041000 Closing Cover03 |
77204041000 |
US $2.99 |
||
|
28
|
28
51504066044 Chain Sliding Guard Kit 11-152011 (As required) |
51504066044 |
US $36.24 |
||
|
29
|
29
54603055051 Press in nut m6 steel zinc2011 (As required) |
54603055051 |
US $2.02 |
||
|
98
|
98
77304070310 Chain Guide Kit Rear 08-1408-11 |
77304070310 |
US $26.01 |
||
|
99
|
99
54804230210 Swingarm repair kit 05-1005-11 (As required) |
54804230210 |
US $108.56 |
||
