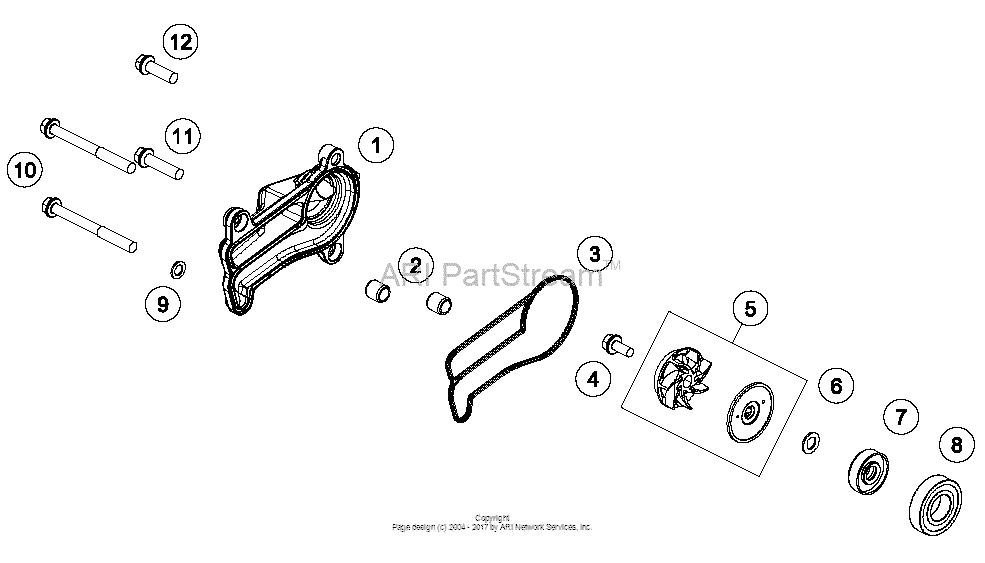

Water Pump Diagram KTM 250 250 SX
- Year
- 2017
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 SX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55435052000 Water Pump CoverTX30 |
55435052000 |
US $23.72 |
||
|
2
|
2
49030090100 Dowel 9,8 X7X10TX30 |
49030090100 |
US $2.60 |
||
|
3
|
3
55435053000 Gasket Water Pump CoverTX30 |
55435053000 |
US $10.68 |
||
|
4
|
4
0014050123 Hh collar screw m 5x12 ws=6TX30 |
0014050123 |
US $2.19 |
||
|
5
|
5
79235055044 Water Pump Wheel CplTX30 |
79235055044 |
US $19.52 |
||
|
6
|
6
50435049000 Preformed WasherTX30 |
50435049000 |
US $3.43 |
||
|
7
|
7
0760082472 Shaft seal ring 8x24x7 a duoTX30 |
0760082472 |
US $8.33 |
||
|
8
|
8
0625160020 Ball bearing 16002 c3TX30 |
0625160020 |
US $18.99 |
||
|
9
|
9
0603061001 Cu-Seal Ring Din7603-6X10X1TX30 |
0603061001 |
US $2.64 |
