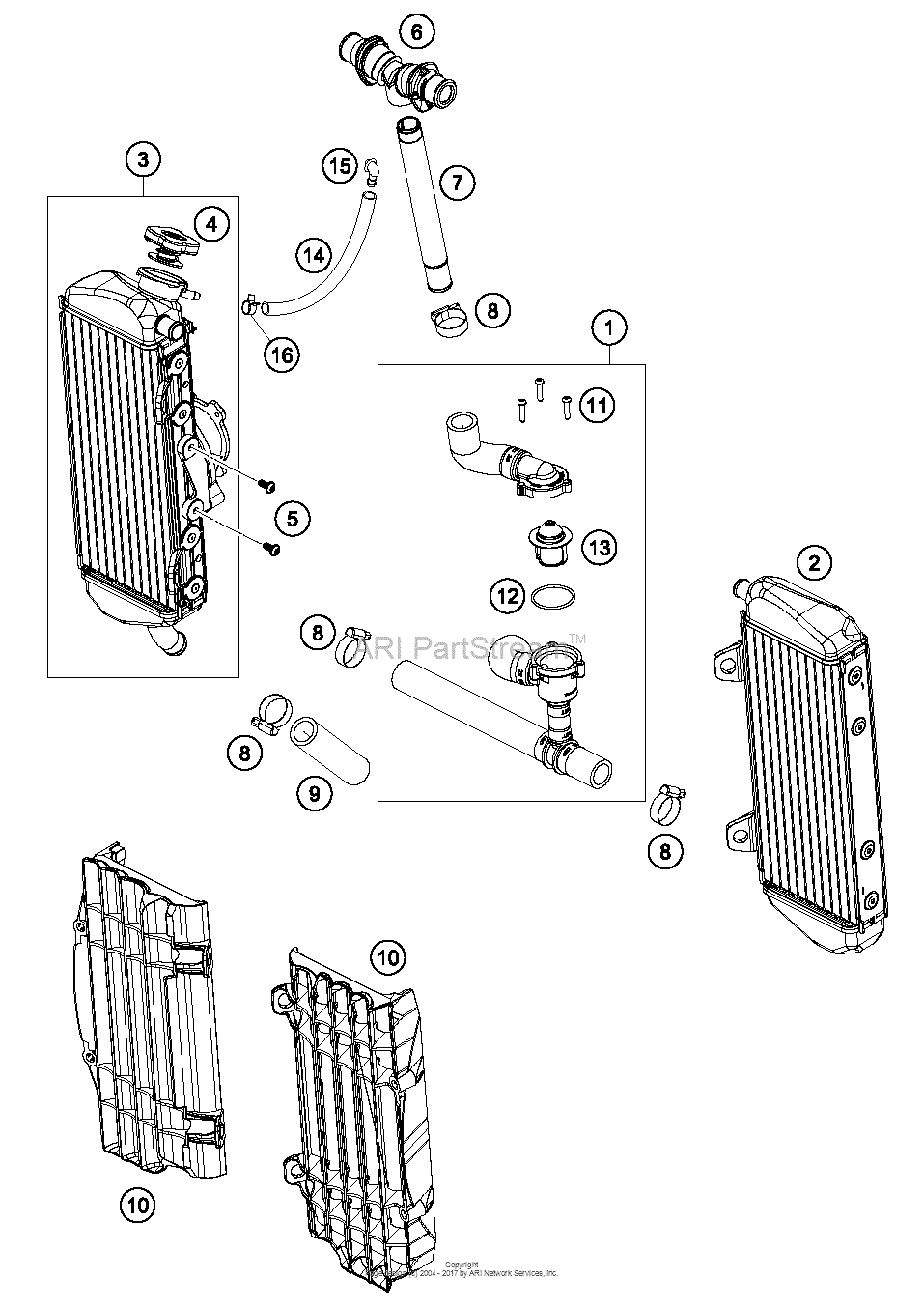

Cooling System Diagram KTM 250 250 XC-W
- Year
- 2017
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55635026033 Radiator Hose With ThermoTX30 |
55635026033 |
US $163.29 |
||
|
2
|
2
50435008100 Radiator Right 17TX30 |
50435008100 |
US $278.04 |
||
|
3
|
3
50435007100 Radiator Left 17TX30 |
50435007100 |
US $226.22 |
||
|
4
|
4
79035016000 Radiator Cap 1,8 BarTX30 |
79035016000 |
US $23.94 |
||
|
5
|
5
0024060123 Collar screw m6x12 txTX30 |
0024060123 |
US $0.66 |
||
|
6
|
6
79035071044 Y-Piece CplTX30 |
79035071044 |
US $55.73 |
||
|
7
|
7
50435073000 Cooling Water PipeTX30 |
50435073000 |
US $16.78 |
||
|
8
|
8
10001020000 Hose Clamp 18-29TX30 |
10001020000 |
US $4.71 |
||
|
9
|
9
55635027000
Radiator Hose 18X25 Per Metre
TX30 |
55635027000 |
— | ||
| replacement | |||||
|
9
|
9
56535025001 Radiator hose 18x25 per metreTX30 |
56535025001 |
US $42.30 |
||
|
10
|
10
7903503400030 Radiator Protect 20162016 |
7903503400030 |
US $23.43 |
||
|
11
|
11
0016040183 Screw for plastic d=4x182016 |
0016040183 |
US $1.17 |
||
|
12
|
12
0770320020 O-ring 32,00x2,002016 |
0770320020 |
US $2.09 |
||
|
13
|
13
59435017000 Thermostat 70 degree 042016 |
59435017000 |
US $39.59 |
||
|
14
|
14
50335030001 Pvc-Hose 6X92016 |
50335030001 |
US $5.12 |
||
|
15
|
15
50303089000 Angle piece '97'97 |
50303089000 |
US $4.52 |
||
|
16
|
16
59007017000 Clamp ydnac 10096f (9,6mm)'97 |
59007017000 |
US $1.48 |
||
