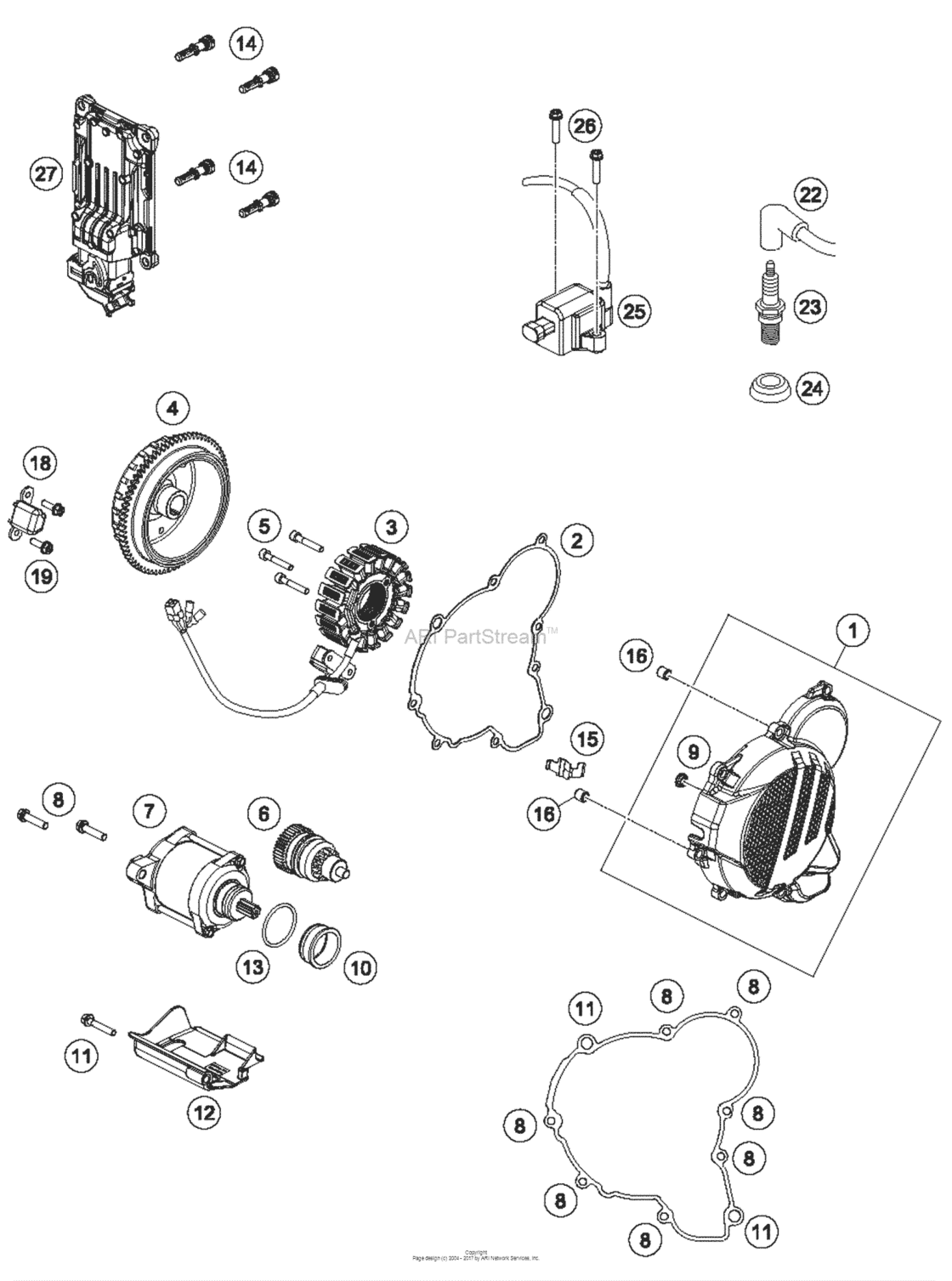

Ignition System Diagram KTM 250 250 XC-W TPI
- Year
- 2018
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XC-W TPI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5543010214415
Ignition Cover Cpl
2003 |
5543010214415 |
— | ||
|
2
|
2
55430040000
Gasket Ignition Cover
2003 |
55430040000 |
— | ||
| replacement | |||||
|
2
|
2
55430040100 GASKET IGNITION COVER2003 |
55430040100 |
US $13.67 |
||
|
3
|
3
55439104000
Stator
2003 |
55439104000 |
— | ||
|
4
|
4
55439105000
Rotor
2003 |
55439105000 |
— | ||
|
5
|
5
0912050303 Ah Screw Din0912-M 5X302003 |
0912050303 |
US $0.66 |
||
|
6
|
6
55440126000 Bendix2003 |
55440126000 |
US $111.21 |
||
|
7
|
7
55440001000
Starter Engine
2003 |
55440001000 |
— | ||
| replacement | |||||
|
7
|
7
55540001000 Starter Engine2003 |
55540001000 |
US $301.36 |
||
|
8
|
8
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
9
|
9
55140030100 Collar bushingTX30 |
55140030100 |
US $2.87 |
||
|
10
|
10
55440012000 Bearing BushTX30 |
55440012000 |
US $10.61 |
||
|
11
|
11
0025060306 Hh collar screw m6x30 tx30TX30 |
0025060306 |
US $3.96 |
||
|
12
|
12
55440040044 Protection Cap Starter EngineTX30 |
55440040044 |
US $14.47 |
||
|
13
|
13
0770021260 O-ring 34,59x2,62TX30 |
0770021260 |
US $1.09 |
||
|
14
|
14
55641030000
Holder Control Unit
TX30 |
55641030000 |
— | ||
|
15
|
15
55439140220
Holding Plate Generator Cable
TX30 |
55439140220 |
— | ||
|
16
|
16
49030090100 Dowel 9,8 X7X10TX30 |
49030090100 |
US $2.60 |
||
|
18
|
18
59039034000 Pulser coil kokusan 4k3-a/bTX30 |
59039034000 |
US $114.99 |
||
|
19
|
19
0025050166 Hh collar screw m5x16 tx30TX30 |
0025050166 |
US $2.60 |
||
|
22
|
22
55639007000
Ignition Wire
TX30 |
55639007000 |
— | ||
|
23
|
23
55439193000
Spark Plug
TX30 |
55439193000 |
— | ||
|
24
|
24
50231012000 Sealing cup for spark plugTX30 |
50231012000 |
US $3.91 |
||
|
25
|
25
55639006000
Iginition Coil
TX30 |
55639006000 |
— | ||
|
26
|
26
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
27
|
27
55641031000
Control Device Efi
TX30 |
55641031000 |
— | ||
