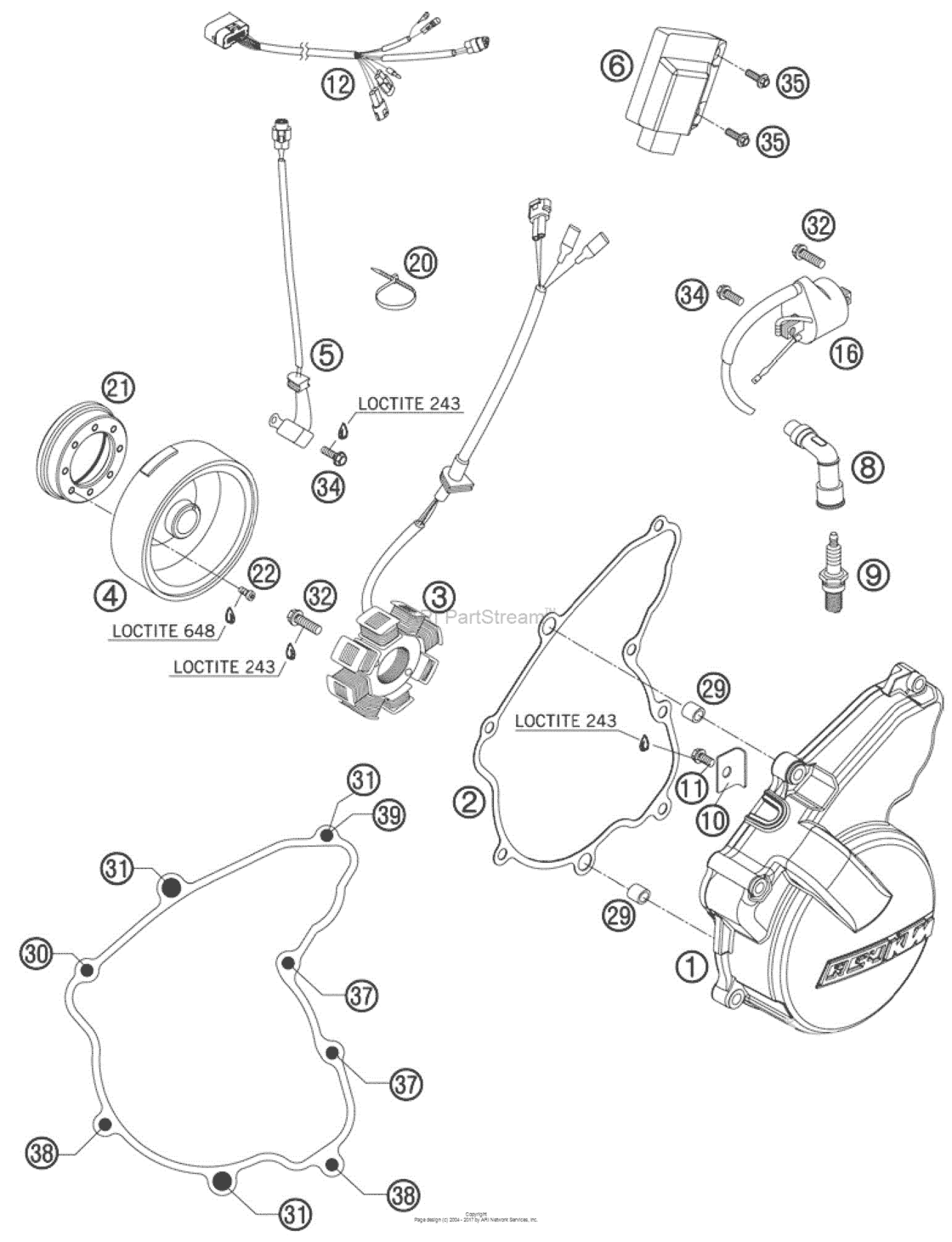

Ignition System Diagram KTM 250 250 XCF-W SD
- Year
- 2011
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XCF-W SD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7703010230015 Ignition cover exc 0909 |
7703010230015 |
US $92.29 |
||
|
2
|
2
77030140000 Ignition cover gasket exc-f09 |
77030140000 |
US $10.61 |
||
|
3
|
3
77039104000 Stator 20072007 |
77039104000 |
US $202.88 |
||
|
4
|
4
77039105100 Flywheel2007 |
77039105100 |
US $417.25 |
||
|
5
|
5
77039134000 Pulser coil 0808 |
77039134000 |
US $65.23 |
||
|
6
|
6
77039131400 Cdi unit 250 exc-f 0909 |
77039131400 |
US $313.14 |
||
|
8
|
8
59039090100
Spark plug connect. vd05eg 03
03 |
59039090100 |
— | ||
| replacement | |||||
|
8
|
8
77139090000 Spark Plug Connector03 |
77139090000 |
US $56.17 |
||
|
9
|
9
77039093000 Spark plug (NGK CR9EKB) -05'05 |
77039093000 |
US $22.08 |
||
|
10
|
10
77030002050 Wire retaining bracket 06'05 |
77030002050 |
US $3.71 |
||
|
11
|
11
0025060086 Hh collar screw m6x8 tx30TX30 |
0025060086 |
US $1.39 |
||
|
12
|
12
59439032100 Wiring harness for cdi exc 0404 (As Required) |
59439032100 |
US $102.20 |
||
|
12
|
12
78039032000 Wiring harness f. cdi-box 0808 (As Required) |
78039032000 |
US $74.22 |
||
|
16
|
16
59039006000 Ignitioncoil "ig5128"08 (As Required) |
59039006000 |
US $132.38 |
||
|
20
|
20
44011076140 Cable tie 140/2,5mm black(As Required) |
44011076140 |
US $0.29 |
||
|
21
|
21
77040025000 Freewheel hub(As Required) |
77040025000 |
US $56.73 |
||
|
22
|
22
00120500810 Ah screw din6912-m5x8 10.910.9 |
00120500810 |
US $1.14 |
||
|
29
|
29
49030090000 Dowel 9,8 x 7 x 1010.9 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
29
|
29
49030090100 Dowel 9,8 X7X1010.9 |
49030090100 |
US $2.60 |
||
|
30
|
30
0025060506 Hh collar screw m6x50 tx30TX30 |
0025060506 |
US $3.30 |
||
|
31
|
31
0025060306 Hh collar screw m6x30 tx30TX30 |
0025060306 |
US $3.96 |
||
|
32
|
32
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
34
|
34
0025050166 Hh collar screw m5x16 tx30TX30 |
0025050166 |
US $2.60 |
||
|
35
|
35
0024060106 Hh collar screw m6x10 tx30TX30 |
0024060106 |
US $4.35 |
||
|
37
|
37
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
38
|
38
0025060956 Hh collar screw m6x95 tx30TX30 |
0025060956 |
US $2.35 |
||
|
39
|
39
0603061001 Cu-Seal Ring Din7603-6X10X1TX30 |
0603061001 |
US $2.64 |
||
