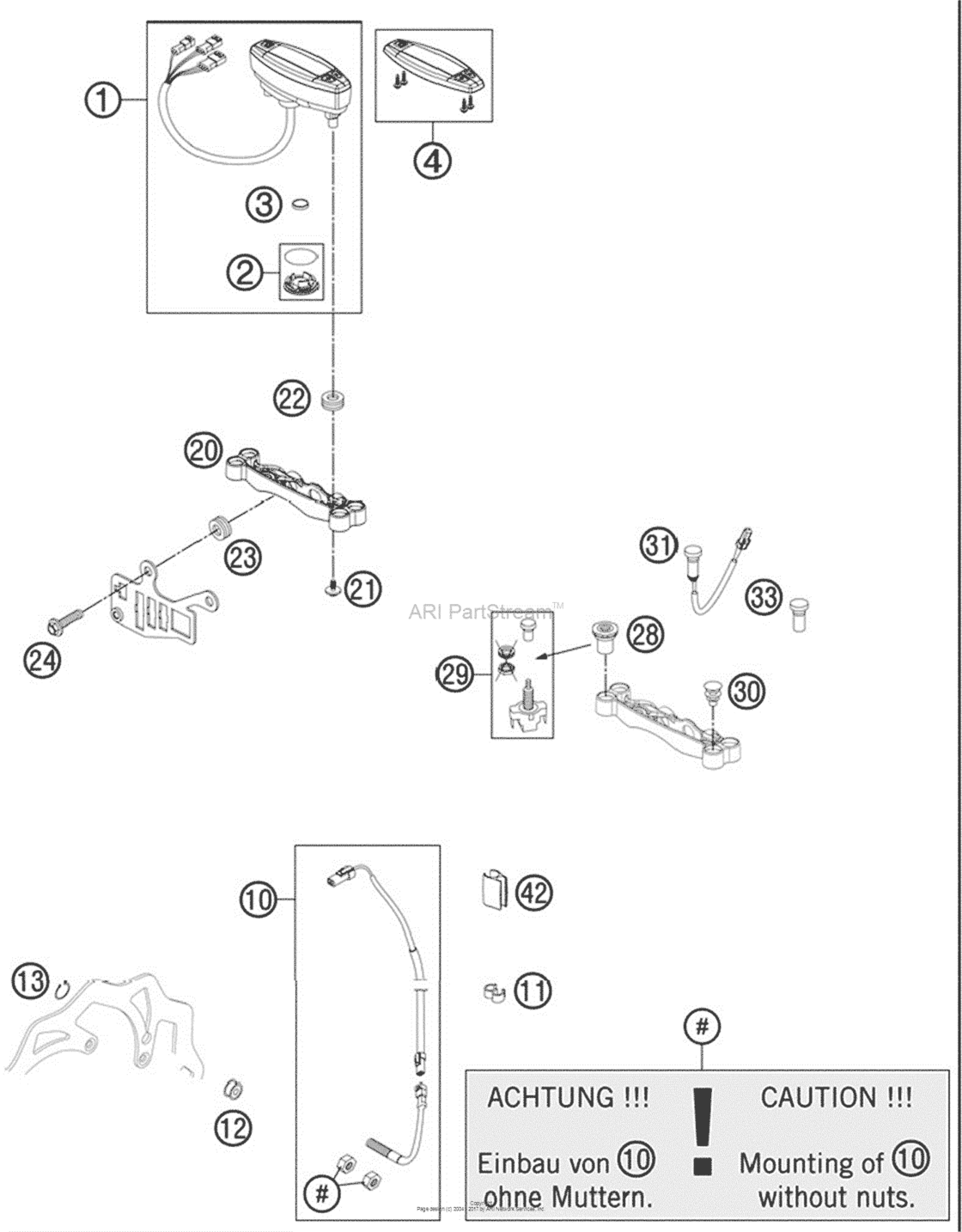

Instruments / Lock System Diagram KTM 250 250 XCF-W
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XCF-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54814069000 Speedometer km/h f. 21" 20052005 |
54814069000 |
US $269.99 |
||
|
2
|
2
54814069010 Battery cover f. speedom. 20052005 |
54814069010 |
US $12.41 |
||
|
3
|
3
58314068000 Battery f. speedom. m.a.e. 0202 |
58314068000 |
US $9.64 |
||
|
4
|
4
54814069020 Speedometer top part 0505 |
54814069020 |
US $30.94 |
||
|
10
|
10
54814068100 Cable for digital speedom. 0606 |
54814068100 |
US $90.73 |
||
|
11
|
11
55011022100 Clamp d=6/8mm, black06 |
55011022100 |
US $1.07 |
||
|
12
|
12
54814069050 Magnet For Digital Speedom. 0306 |
54814069050 |
US $23.21 |
||
|
13
|
13
0471009104 Circlip Din0471- 9X1 InoxINOX |
0471009104 |
US $2.35 |
||
|
20
|
20
81214060000 Speedometer bracketINOX |
81214060000 |
US $4.78 |
||
|
21
|
21
0081650121 Ejot Pt Screw K50X12 Wn5452INOX |
0081650121 |
US $1.21 |
||
|
22
|
22
58214069051 Rubber Grommet 16X10,8X3 0202 |
58214069051 |
US $4.52 |
||
|
23
|
23
31008060000 Rubber Sleeve D=8Mm Open02 |
31008060000 |
US $1.09 |
||
|
24
|
24
0024060256 Hh collar screw m6x25 tx30TX30 |
0024060256 |
US $1.79 |
||
|
28
|
28
54814060050 Spec. nut f. pull switch ws=17TX30 |
54814060050 |
US $4.81 |
||
|
29
|
29
55011599000 Pull switch looseTX30 |
55011599000 |
US $19.47 |
||
|
30
|
30
50210086000 Covering cap sfl16TX30 |
50210086000 |
US $3.54 |
||
|
31
|
31
81214083000 Indicator light led yellow fiTX30 |
81214083000 |
US $31.30 |
||
|
33
|
33
81214086000 Indicator light reserveTX30 |
81214086000 |
US $7 |
||
|
42
|
42
54813026000 Cable support 10/6mm 0606 |
54813026000 |
US $2.35 |
