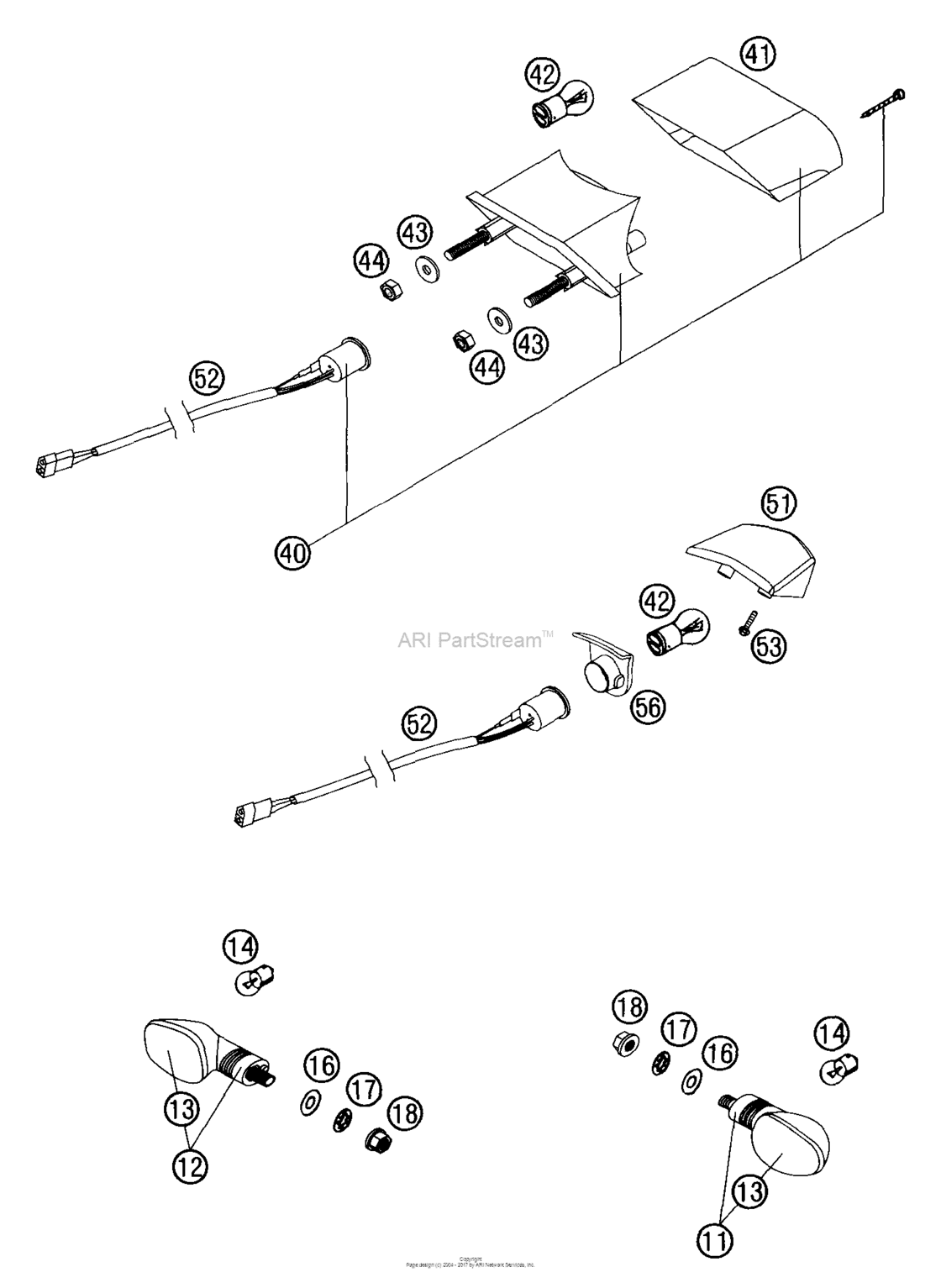

Flasher, Rear Light Diagram KTM 300 300 MXC
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 MXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11
|
11
5841402500030
Flasher Cpl.front L/s Rear R/s
(BLACK) |
5841402500030 |
— | ||
|
12
|
12
5841402600030 Flasher Cpl.front R/s Rear L/s(BLACK) |
5841402600030 |
US $25.93 |
||
|
13
|
13
58414028000 Flasher lens l/s & r/s '98(BLACK) |
58414028000 |
US $6.75 |
||
|
14
|
14
44111015100 Bulb 12v 10w (ba15s)(BLACK) |
44111015100 |
US $2.30 |
||
|
16
|
16
0125100003 Washer Din0125-A10,5(BLACK) |
0125100003 |
US $1.19 |
||
|
17
|
17
0797100003 Lock washer din6797-j10,5 zi(BLACK) |
0797100003 |
US $0.65 |
||
|
18
|
18
58414030000 Hh collar nut m10x1,25 ws=13(BLACK) |
58414030000 |
US $2.60 |
||
|
40
|
40
50314040100 Rear Light Cpl. Exc 07(BLACK) |
50314040100 |
US $72.47 |
||
| replacement | |||||
|
40
|
40
50314040200 Rear Light Cpl. Exc 07(BLACK) |
50314040200 |
US $70.24 |
||
|
41
|
41
50314041100 Rear Light Lens 125-380 Egs'98(BLACK) |
50314041100 |
US $27.57 |
||
|
42
|
42
58414042000 Bulb 12V 21/5W (Bay15S)Reinfo(BLACK) |
58414042000 |
US $12.56 |
||
|
43
|
43
0021060003 Washer Din9021-A 6,4(BLACK) |
0021060003 |
US $3.26 |
||
|
44
|
44
0985060003 Self Lock. Nut Din0985-M 6(BLACK) |
0985060003 |
US $2.60 |
||
|
51
|
51
50314041200 Rear light lens 04(BLACK) |
50314041200 |
US $9.52 |
||
|
52
|
52
50311076000 Wiring harness rear 125-380'98(BLACK) |
50311076000 |
US $40.94 |
||
|
53
|
53
0017060203
Screw For Plastic K60X20 Sw6
(BLACK) |
0017060203 |
— | ||
| replacement | |||||
|
53
|
53
0017060205 Screw For Plastic K60X20 Sw6(BLACK) |
0017060205 |
US $2.24 |
||
|
56
|
56
54811076050 Lamp holder 04(BLACK) |
54811076050 |
US $4.95 |
||
