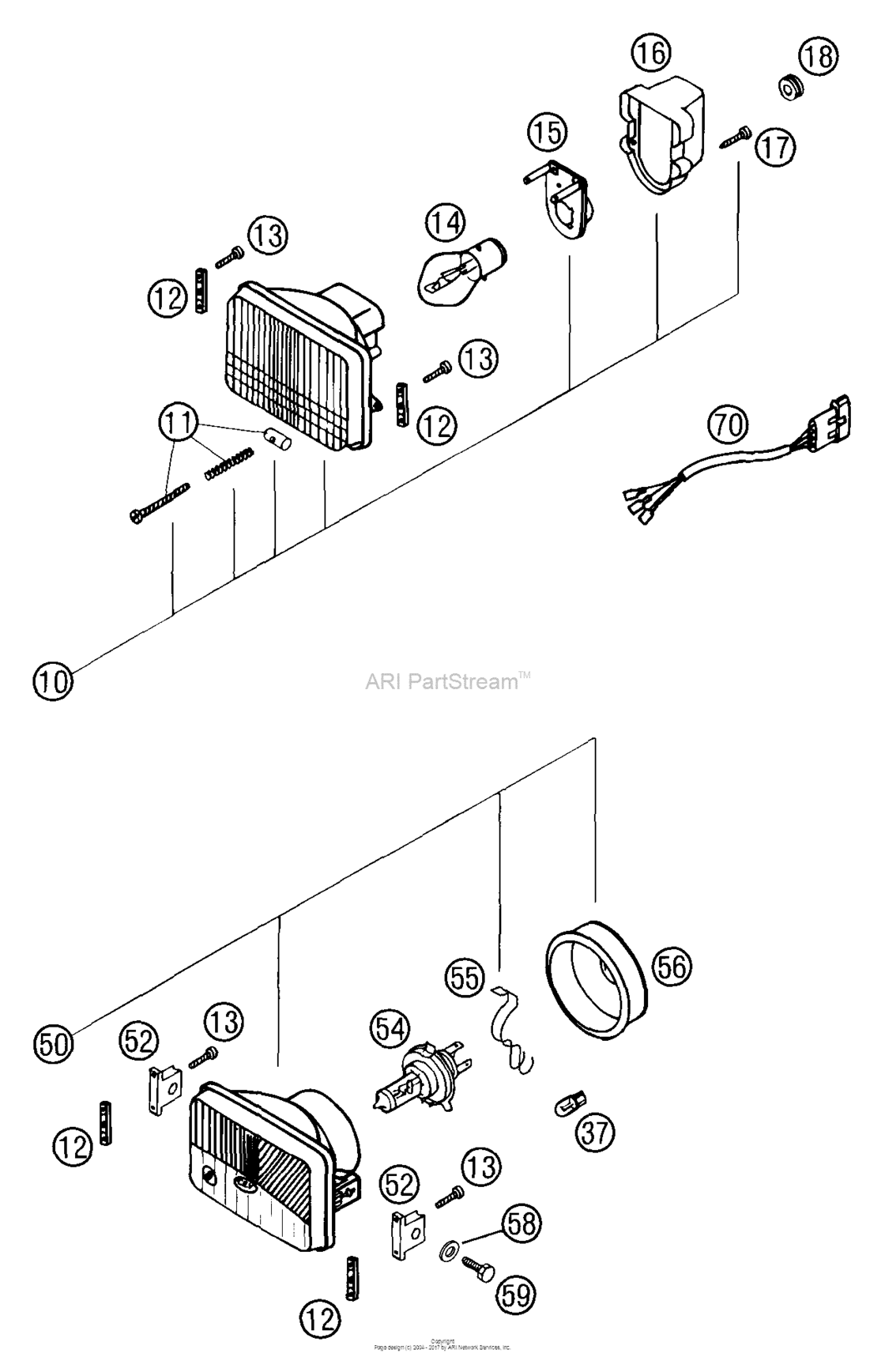

Head Light Diagram KTM 300 300 MXC
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 MXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10
|
10
50211610000 Headlight Cpl. Elcom '93(BLACK) |
50211610000 |
US $66.25 |
||
|
11
|
11
50211631000 Adjusting screw cpl. m4x40(BLACK) |
50211631000 |
US $3.96 |
||
|
12
|
12
50211410050 Headlight bracket '93(BLACK) |
50211410050 |
US $6.73 |
||
|
13
|
13
0016040183 Screw for plastic d=4x18(BLACK) |
0016040183 |
US $1.17 |
||
|
14
|
14
44111038000 Bilux-bulb 12v 35/35w ba20d(BLACK) |
44111038000 |
US $16.30 |
||
|
15
|
15
57011036000 Bulb socket(BLACK) |
57011036000 |
US $24.12 |
||
|
16
|
16
50211637000 Cover cap(BLACK) |
50211637000 |
US $7.11 |
||
|
17
|
17
0981350133 Sheet met.scr.din7981-3,5x13(BLACK) |
0981350133 |
US $0.17 |
||
|
18
|
18
31008060000 Rubber Sleeve D=8Mm Open(BLACK) |
31008060000 |
US $1.09 |
||
|
37
|
37
49011435000 Bulb 12V 5W (W2,1X9,5D) Phil(BLACK) |
49011435000 |
US $4.27 |
||
| replacement | |||||
|
37
|
37
49011435100 Bulb 12V 5W (W2,1X9,5D) Phil(BLACK) |
49011435100 |
US $3.81 |
||
|
50
|
50
59014002000 Head light 186(ri)"1003202 r"(BLACK) |
59014002000 |
US $96.82 |
||
|
50
|
50
59014002100 Head light 186(le)"1003203 l"(BLACK) |
59014002100 |
US $102.61 |
||
|
52
|
52
58414010100
Head light support 2001
(BLACK) |
58414010100 |
— | ||
|
54
|
54
54611038012 Bulb hs1 12v 35/35w white(BLACK) |
54611038012 |
US $33.52 |
||
|
55
|
55
49011436100 Bulb holder(BLACK) |
49011436100 |
US $2.69 |
||
|
56
|
56
50211537000 Rubber cap(BLACK) |
50211537000 |
US $3.43 |
||
|
58
|
58
0125060003 Washer Din0125-A 6,4(BLACK) |
0125060003 |
US $0.37 |
||
|
59
|
59
0933060203 Hh screw din0933-m 6x20(BLACK) |
0933060203 |
US $0.65 |
||
|
70
|
70
50211610010
Cable for headlight '93
(BLACK) |
50211610010 |
— | ||
