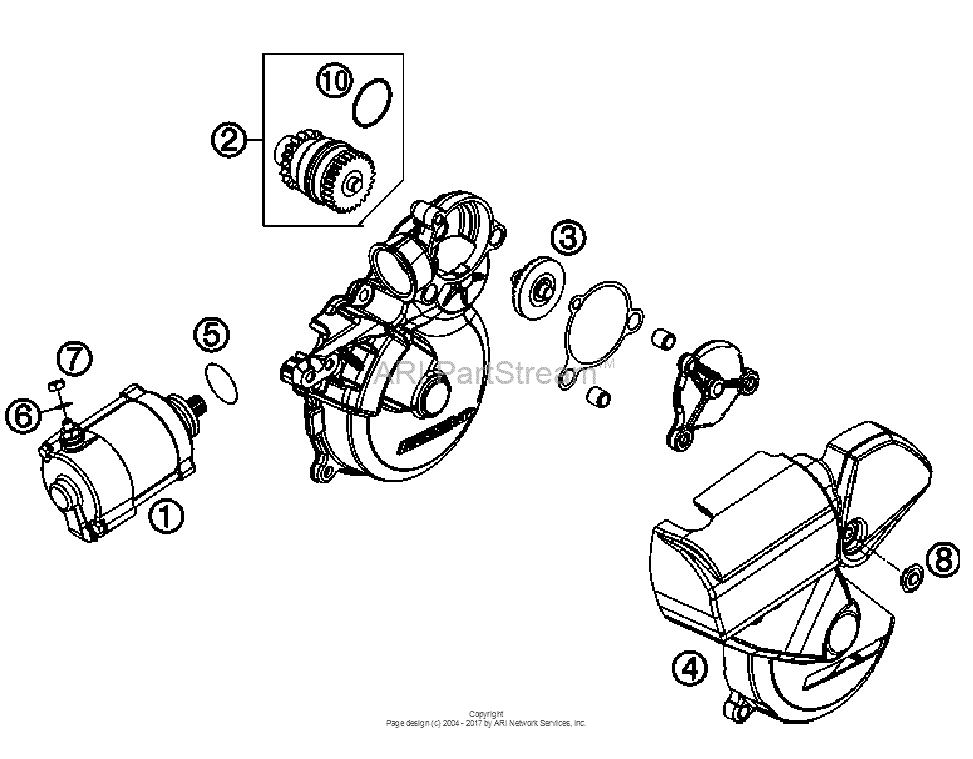

Electric Starter Diagram KTM 300 300 SD
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 SD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55140001000
E-starter engine kpl. 07
07 |
55140001000 |
— | ||
| replacement | |||||
|
1
|
1
55140001100 Starter Moric07 |
55140001100 |
US $409.96 |
||
|
2
|
2
55140026000
Bendix 2007
2007 |
55140026000 |
— | ||
| replacement | |||||
|
2
|
2
55140026100 Bendix2007 |
55140026100 |
US $146.01 |
||
|
3
|
3
55140022000 Intermediate shaft cpl. 0707 |
55140022000 |
US $71.62 |
||
| replacement | |||||
|
3
|
3
55140022100 Crown wheel e-starter07 |
55140022100 |
US $66.90 |
||
|
4
|
4
55140040044
Starter drive cover 07
07 |
55140040044 |
— | ||
| replacement | |||||
|
4
|
4
55140040144 Starter drive cover cpl.07 |
55140040144 |
US $38.62 |
||
|
5
|
5
0770250030 O-ring 25,00x3,00 nbr 7007 |
0770250030 |
US $4.35 |
||
|
6
|
6
0125060003 Washer Din0125-A 6,407 |
0125060003 |
US $0.37 |
||
|
7
|
7
0985060003 Self Lock. Nut Din0985-M 607 |
0985060003 |
US $2.60 |
||
|
8
|
8
50308052000 Bush 6X11X16X5 Mm07 |
50308052000 |
US $3.49 |
||
| replacement | |||||
|
8
|
8
79608052000 Bush 6X11X16X5 Mm07 |
79608052000 |
US $1.31 |
||
|
10
|
10
55140027000 Bendixspring07 |
55140027000 |
US $9.28 |
||
