	Description	OEM Part #	Price
1	1 0019050103 Int. torx flat head m 5x10 8.8 As Required, 08	0019050103	US $0.82
	replacement
1	1 0019050106S Int. Torx Flat Head M5X10 10.9 As Required, 08	0019050106S	US $0.27
2	2 54837362000 Retaining plate 300 r/s 08 08	54837362000	US $16.08
3	3 54837363000 Retaining plate 300 l/s 08 08	54837363000	US $16.08
4	4 0770160021 O-ring 16,00x2,00 viton 08	0770160021	US $1.87
5	5 54837361044 Control valve 300 l/s cpl. 08 08	54837361044	US $35.70
6	6 54837361144 Control valve 300 r/s cpl. 08 08	54837361144	US $35.70
10	10 0912060203 Ah Screw Din0912-M 6X20 08	0912060203	US $1.04
11	11 54637067000 Spring sleeve 08	54637067000	US $4.49
12	12 54637066000 Overload spring 08	54637066000	US $5.20
13	13 54637085300 Retain.plate control flap '92 92	54637085300	US $4.42
14	14 54637065000 Control lever with ball type 92	54637065000	US $21.32
15	15 54637068100 Bushing sleeve 92	54637068100	US $8.57
16	16 54837364044 Gear segment right cpl. 08 08	54837364044	US $44.13
17	17 54837364050 Gear segment 300 l/s 08 08	54837364050	US $28.14
18	18 54737019000 Bear. sleeve f.control flap'97 97	54737019000	US $7.16
19	19 0770150151 O-ring 15,00x1,50 viton 97	0770150151	US $2.60
20	20 54837320100 Control flap 300 08 08	54837320100	US $96.44
21	21 0912060163 Ah Screw Din0912-M 6X16 08	0912060163	US $1.29
22	22 54637056100 Washer 6,5x11x2 08	54637056100	US $0.31
23	23 0912060083 Ah screw din0912-m 6x 8 08	0912060083	US $0.85
25	25 0014050123 Hh collar screw m 5x12 ws=6 08	0014050123	US $2.19
26	26 0349000050 Washer din7349-5x15x2 08	0349000050	US $0.65
27	27 54835005000 Water pump wheel 07 07	54835005000	US $5.20
28	28 0760082472 Shaft seal ring 8x24x7 a duo 07	0760082472	US $8.33
29	29 0137060003 Spring Washer Din0137-B 6 As Required	0137060003	US $0.43
30	30 0625160020 Ball bearing 16002 c3 As Required	0625160020	US $18.99
31	31 54837050044 Centrifugal timer cpl. 250/300 As Required	54837050044	US $267.78
36	36 54637098100 Ball bearing 626llbc3/5k As Required	54637098100	US $12.56
40	40 0014050203 Hh collar screw m 5x20 ws=6 As Required	0014050203	US $2.79
41	41 54637070100 Cover lid 250-380'98 98	54637070100	US $17.03
43	43 54837075000 Spring guide 250/300 98	54837075000	US $12.99
44	44 0770021120 O-ring 12,37x2,62 nbr70 98	0770021120	US $2.43
45	45 0770240020 O-ring 24,00x2,00 nbr70 98	0770240020	US $1.45
46	46 54637072100 Adjusting Spring 96	54637072100	US $4.45
	replacement
46	46 54837069000 Adjust. spring 2003 96	54837069000	US $1.97
47	47 54637072300 Auxiliary spring mid., yellow 96	54637072300	US $1.55
47	47 54837072000 Auxiliary spring soft, red As Required	54837072000	US $1.43
47	47 54837072100 Auxiliary spring hard, green As Required	54837072100	US $2.60
48	48 54637071200 Spring insert As Required	54637071200	US $9.13
50	50 54637055244 Angle lever cpl. '91 91	54637055244	US $35.33
51	51 0988101610 Shim washer din988 10x16x1 91	0988101610	US $1.51
52	52 54637096000 Needle sleeve hk 1010 91	54637096000	US $8.94
	replacement
52	52 0618101410 Needle sleeve hk 1010 10/14/10 91	0618101410	US $5.92
53	53 54837057000 Control lever 03 03	54837057000	US $34.97
60	60 54637095344 Connect.rod cpl. l=109,5mm '91 91	54637095344	US $40.17
61	61 50237195055 Securing din-71805-s-8 91	50237195055	US $1.51

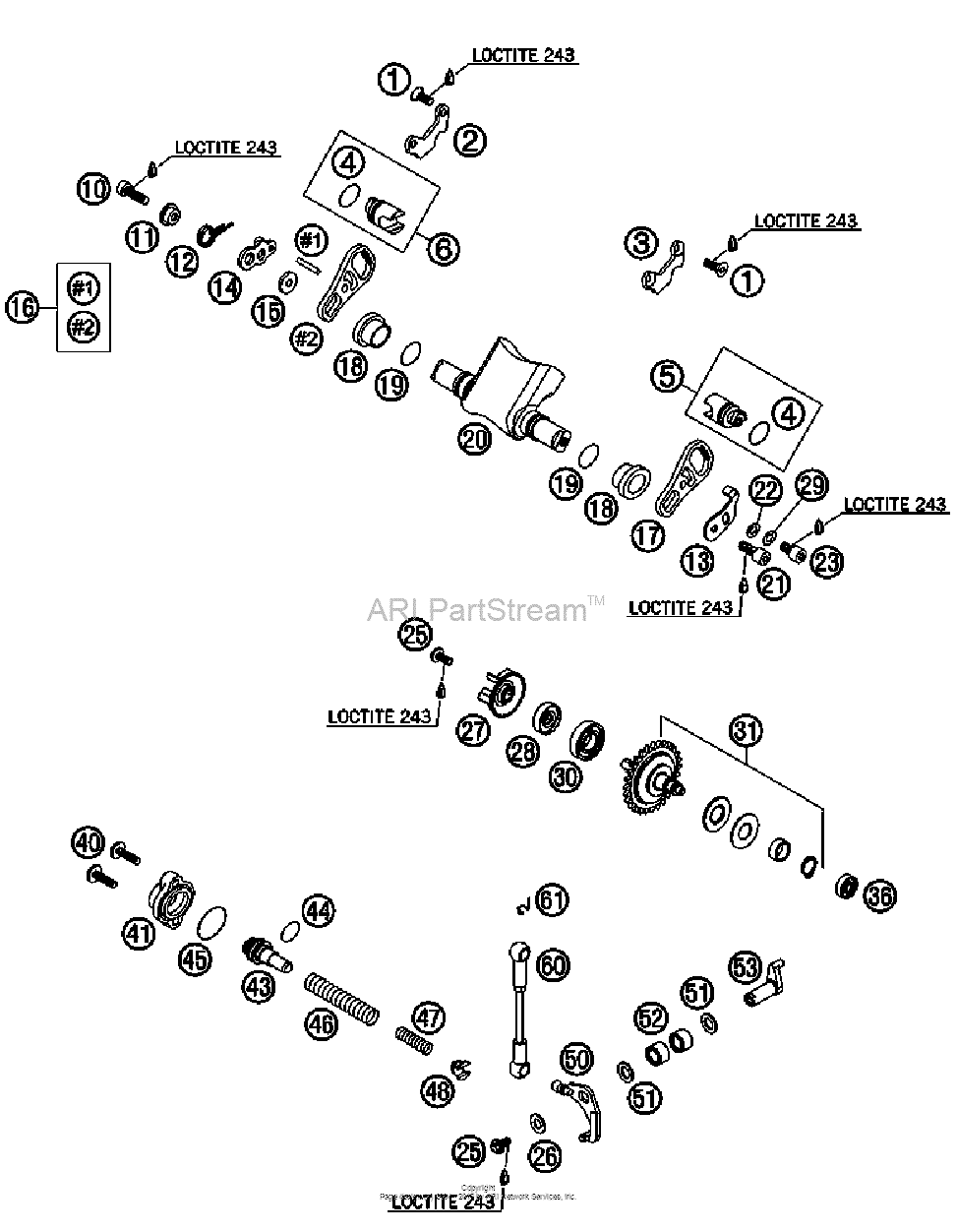

Exhaust Control Diagram KTM 300 300 SD US/EU 18086864-939733

Exhaust Control Diagram KTM 300 300 SD US/EU 18086864-939733
