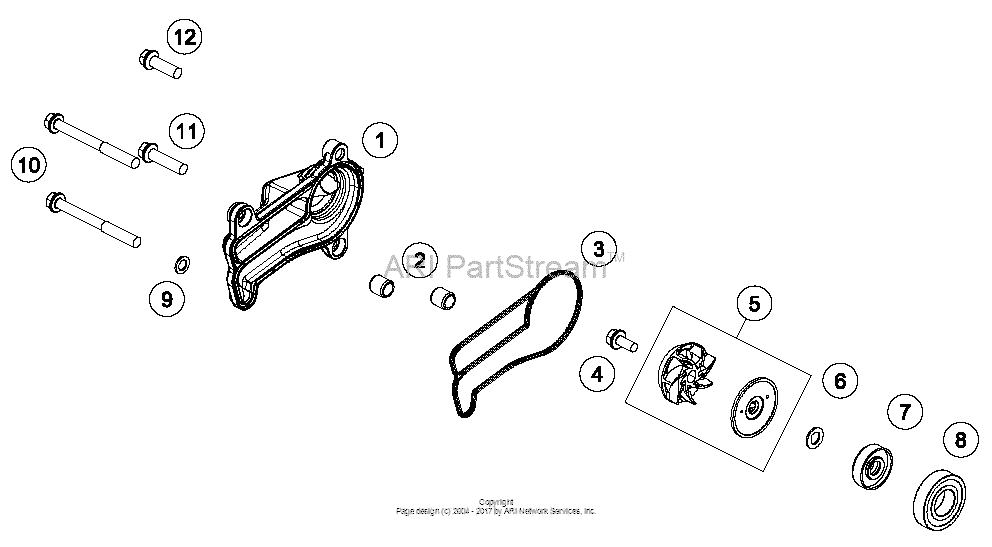

Water Pump Diagram KTM 300 300 XC-W
- Year
- 2017
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55435052000 Water Pump CoverAs Required |
55435052000 |
US $23.72 |
||
|
2
|
2
49030090100 Dowel 9,8 X7X10As Required |
49030090100 |
US $2.60 |
||
|
3
|
3
55435053000 Gasket Water Pump CoverAs Required |
55435053000 |
US $10.68 |
||
|
4
|
4
0014050123 Hh collar screw m 5x12 ws=6As Required |
0014050123 |
US $2.19 |
||
|
5
|
5
79235055044 Water Pump Wheel CplAs Required |
79235055044 |
US $19.52 |
||
|
6
|
6
50435049000 Preformed WasherAs Required |
50435049000 |
US $3.43 |
||
|
7
|
7
0760082472 Shaft seal ring 8x24x7 a duoAs Required |
0760082472 |
US $8.33 |
||
|
8
|
8
0625160020 Ball bearing 16002 c3As Required |
0625160020 |
US $18.99 |
||
|
9
|
9
0603061001 Cu-Seal Ring Din7603-6X10X1As Required |
0603061001 |
US $2.64 |
||
|
10
|
10
0025060556 Hh collar screw m6x55 tx30TX30 |
0025060556 |
US $2.52 |
||
|
11
|
11
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
12
|
12
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
