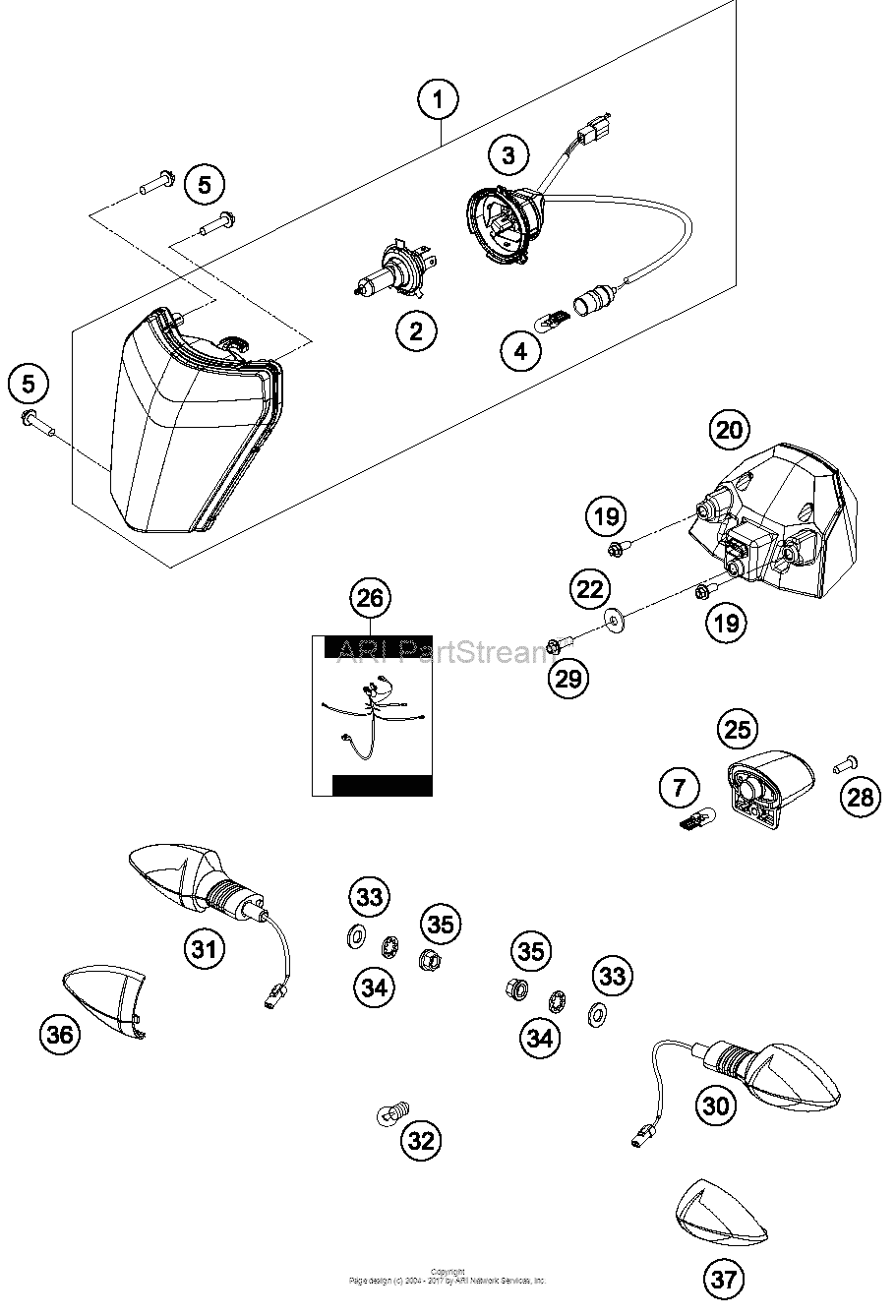

Lighting System Diagram KTM 350 350 EXC-F
- Year
- 2014
- Sales region
- US/EU
- Engine Capacity
- 350
- Model
- 350 EXC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78114001000 Head Light Cpl. 20132013 |
78114001000 |
US $125.05 |
||
|
2
|
2
54611038012 Bulb hs1 12v 35/35w white2013 |
54611038012 |
US $33.52 |
||
|
3
|
3
78114001050 Lamp Bracket Cpl. 20142014 |
78114001050 |
US $45.53 |
||
|
4
|
4
49011435100 Bulb 12V 5W (W2,1X9,5D) Phil2014 |
49011435100 |
US $3.81 |
||
|
5
|
5
0081050181 Screw for plastic k50x18 t202014 |
0081050181 |
US $0.73 |
||
|
19
|
19
0014050123 Hh collar screw m 5x12 ws=62014 |
0014050123 |
US $2.19 |
||
|
20
|
20
78114140000
Rear Light Usa
2014 |
78114140000 |
— | ||
| replacement | |||||
|
20
|
20
78114140100 BACK TAIL USA2014 |
78114140100 |
US $105.66 |
||
|
22
|
22
0021050003 Washer din9021-a 5,32014 |
0021050003 |
US $1.29 |
||
|
25
|
25
75014047000 License plate illumination 0707 |
75014047000 |
US $8.21 |
||
|
26
|
26
77711081000 Flasher Wir. Harness 1414 |
77711081000 |
US $62.97 |
||
|
28
|
28
0081250181 Screw for plastic 50x18 t2014 |
0081250181 |
US $0.60 |
||
|
29
|
29
0014050163 Hh collar screw m 5x16 ws=614 |
0014050163 |
US $1.36 |
||
|
30
|
30
78114025000 Flasher cpl.front l/s rear r/s14 |
78114025000 |
US $42.13 |
||
|
31
|
31
78114026000 Flasher cpl.front r/s rear l/s14 |
78114026000 |
US $42.13 |
||
|
32
|
32
60114027000 Bulb 12v orange (ry10w)14 |
60114027000 |
US $5.90 |
||
|
33
|
33
0125100003 Washer Din0125-A10,514 |
0125100003 |
US $1.19 |
||
|
34
|
34
0797100003 Lock washer din6797-j10,5 zi14 |
0797100003 |
US $0.65 |
||
|
35
|
35
58414030000 Hh collar nut m10x1,25 ws=1314 |
58414030000 |
US $2.60 |
||
|
36
|
36
78114028000 Flasher Lens L/s R/s Transp14 |
78114028000 |
US $8.81 |
||
|
37
|
37
78114027000 Flasher Lens Fro.l/s-Rear R/s14 |
78114027000 |
US $8.81 |
||
