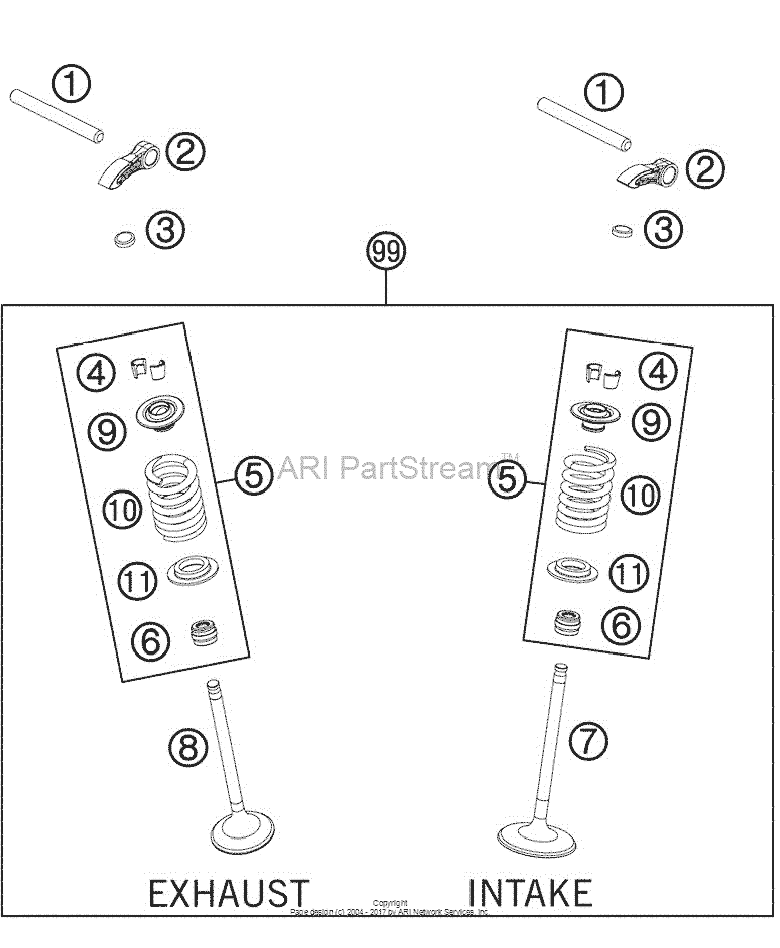

Valve Drive Diagram KTM 350 350 EXC-F
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 350
- Model
- 350 EXC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77236056000 Valve lever shaft(As required) |
77236056000 |
US $10.34 |
||
|
2
|
2
77236060000 Valve lever(As required) |
77236060000 |
US $107.41 |
||
|
3
|
3
77036035172 Shim d=8,9/1,72(As required) |
77036035172 |
US $5.71 |
||
|
3
|
3
77036035176 Shim d=8,9/1,76(As required) |
77036035176 |
US $5.71 |
||
|
3
|
3
77036035180 Shim d=8,9/1,80(As required) |
77036035180 |
US $5.71 |
||
|
3
|
3
77036035184 Shim d=8,9/1,84(As required) |
77036035184 |
US $5.71 |
||
|
3
|
3
77036035188 Shim d=8,9/1,88(As required) |
77036035188 |
US $5.71 |
||
|
3
|
3
77036035192 Shim d=8,9/1,92(As required) |
77036035192 |
US $5.71 |
||
|
3
|
3
77036035196 Shim d=8,9/1,96(As required) |
77036035196 |
US $5.71 |
||
|
3
|
3
77036035200 Shim d=8,9/2,00(As required) |
77036035200 |
US $5.71 |
||
|
3
|
3
77036035204 Shim d=8,9/2,04(As required) |
77036035204 |
US $5.71 |
||
|
3
|
3
77036035208 Shim d=8,9/2,08(As required) |
77036035208 |
US $5.71 |
||
|
3
|
3
77036035212 Shim d=8,9/2,12(As required) |
77036035212 |
US $5.71 |
||
|
3
|
3
77036035216 Shim d=8,9/2,16(As required) |
77036035216 |
US $5.71 |
||
|
3
|
3
77036035220 Shim d=8,9/2,20(As required) |
77036035220 |
US $5.71 |
||
|
3
|
3
77036035224 Shim d=8,9/2,24(As required) |
77036035224 |
US $5.71 |
||
|
3
|
3
77036035228 Shim d=8,9/2,28(As required) |
77036035228 |
US $5.71 |
||
|
3
|
3
77036035232 Shim d=8,9/2,32(As required) |
77036035232 |
US $5.71 |
||
|
3
|
3
77036035236 Shim d=8,9/2,36(As required) |
77036035236 |
US $5.71 |
||
|
3
|
3
77036035240 Shim d=8,9/2,40(As required) |
77036035240 |
US $5.71 |
||
|
3
|
3
77036035244 Shim d=8,9/2,44(As required) |
77036035244 |
US $5.71 |
||
|
3
|
3
77036035248 Shim d=8,9/2,48(As required) |
77036035248 |
US $5.71 |
||
|
3
|
3
77036035252 Shim d=8,9/2,52(As required) |
77036035252 |
US $5.71 |
||
|
3
|
3
77036035256 Shim d=8,9/2,56(As required) |
77036035256 |
US $5.71 |
||
|
3
|
3
77036035260 Shim d=8,9/2,60(As required) |
77036035260 |
US $5.71 |
||
|
4
|
4
77236033000 Valve collet(As required) |
77236033000 |
US $2.04 |
||
|
5
|
5
77536028044 Valve Spring Kit(As required) |
77536028044 |
US $46.02 |
||
|
6
|
6
77236027000 Valve-stem sealing(As required) |
77236027000 |
US $5.46 |
||
|
7
|
7
77236030200 Intake Valve(As required) |
77236030200 |
US $220.75 |
||
|
8
|
8
77236031100 Exhaust valve(As required) |
77236031100 |
US $203.42 |
||
|
9
|
9
77536032000 Valve-Spring Retainer(As required) |
77536032000 |
US $11.68 |
||
| replacement | |||||
|
9
|
9
77536032100 Valve-Spring Retainer(As required) |
77536032100 |
US $10.52 |
||
|
10
|
10
77036028300 Valve spring inside(As required) |
77036028300 |
US $10.61 |
||
|
11
|
11
77536036100 Valve Spring Holder(As required) |
77536036100 |
US $6.41 |
||
|
99
|
99
77536030010 Valve Kit 350 Exc-F 12-14(As required) |
77536030010 |
US $834.67 |
||
