Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 77730100033 Engine Case Cpl 02	77730100033	US $1,384.16
2	2 58030080000 Locating screw m8 l=23 02	58030080000	US $13.60
3	3 58030081000 Cu-seal ring 8 x 14 x 3 02	58030081000	US $1.22
4	4 402040980 Needle Rol.din5402 Nrb 4X9,8 02	402040980	—
5	5 906100100 Plug Din0906-M10X1 02	906100100	—
6	6 78036081000 Holding bolt m14x1,5 02	78036081000	US $8.25
7	7 770110015 O-Ring 02	770110015	—
8	8 25060556 Hh Collar Screw M6X55 Tx30 TX30	25060556	—
9	9 25060656 Hh Collar Screw M6X65 Tx30 TX30	25060656	—
10	10 80030058060 Oil jet "60" m4 TX30	80030058060	US $10.27
11	11 77230066000 Throttle M5X10X0,5 TX30	77230066000	US $9.83
12	12 77830064050 Oil Jet Curved 50 TX30	77830064050	US $11.14
13	13 770035020 O-ring 3,5x2,00 nbr TX30	770035020	—
14	14 912040103 Ah.screw Din0912-M 4X10 TX30	912040103	—
15	15 60030063050 Oil jet 50 05 05	60030063050	US $7.92
16	16 59030058000 Jet 100 bing(44-031/180) m4 05	59030058000	US $3.45
17	17 59030024000 Dowel 17 x 19 x 12 05	59030024000	US $4.47
18	18 54630027000 Dowel bushing 13,8x11x12 05	54630027000	US $5.73
19	19 59030023000 Dowel 6X8X11,5 05	59030023000	US $2.92
20	20 75030010100 Case Bush 05	75030010100	US $9.93
21	21 58038022000 Cu-Seal Ring Din7603-12X18X1,5 05	58038022000	US $1.97
22	22 58030021000 Oildrain Plug With Magnet 05	58030021000	—
	replacement
22	22 58030021100 Oildrain Plug With Magnet 05	58030021100	US $12.02
23	23 77038022000 Oil intakepipe 05	77038022000	US $5.85
24	24 402050080 Cylinder Roller Zro 5X8 05	402050080	—
25	25 25060856 Hh Collar Screw M6X85 Tx30 TX30	25060856	—
60	60 77830099000 Gasket Set 350 Sx-F TX30	77830099000	US $342.81

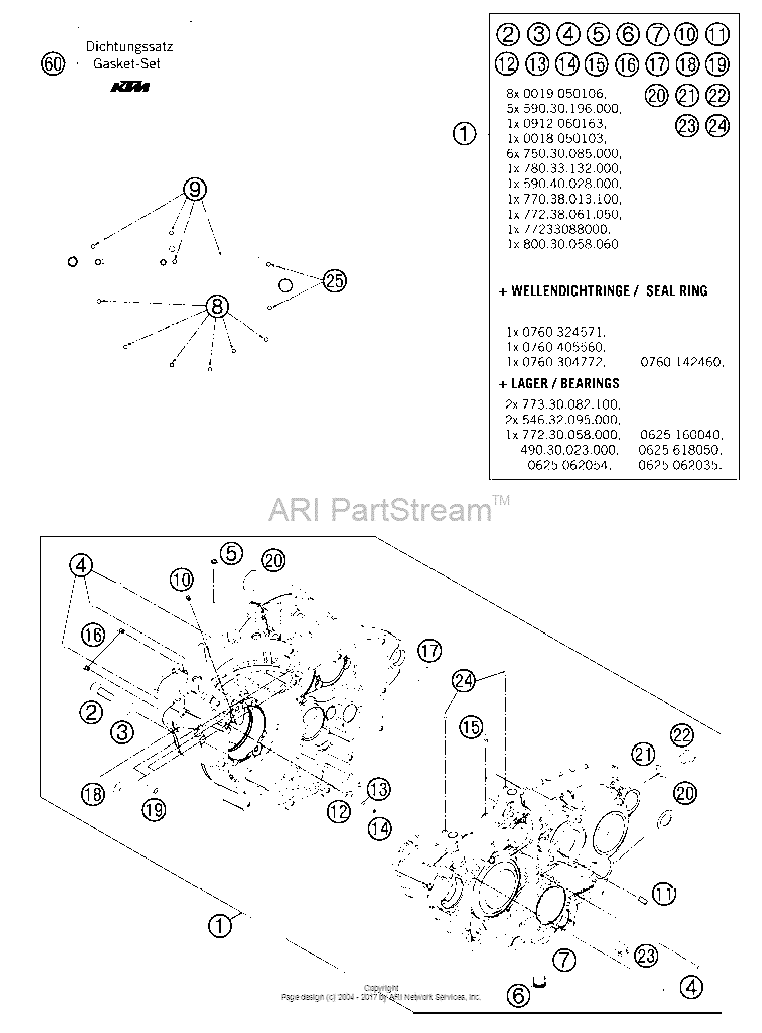

Engine Case Diagram KTM 350 350 SX-F US/EU 18088788-939827

Engine Case Diagram KTM 350 350 SX-F US/EU 18088788-939827
