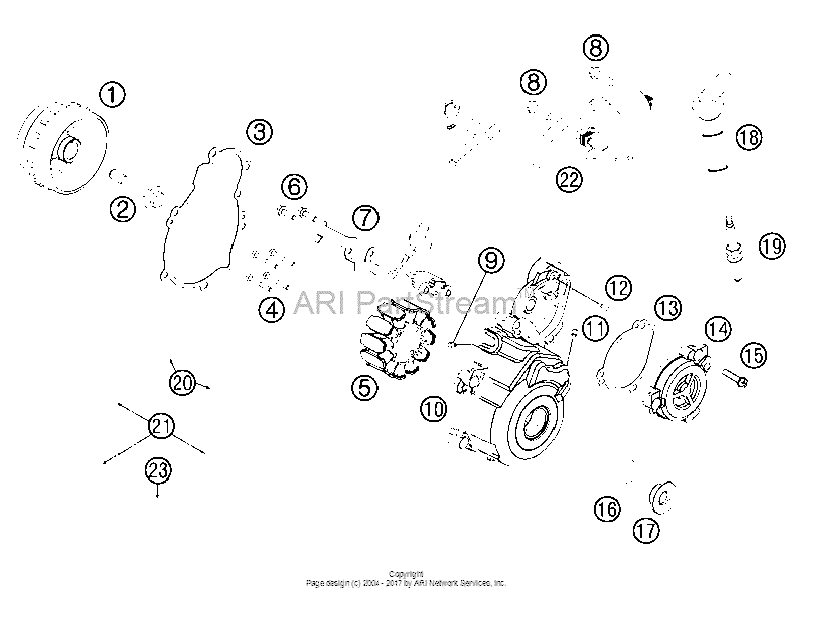

Ignition System Diagram KTM 350 350 SX-F
- Year
- 2013
- Sales region
- US/EU
- Engine Capacity
- 350
- Model
- 350 SX-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77239005100
Rotor Efi
TX30 |
77239005100 |
— | ||
|
2
|
2
77339010100 Flywheel screwTX30 |
77339010100 |
US $4.66 |
||
|
3
|
3
77530040000 Ignition Cover GasketTX30 |
77530040000 |
US $16.80 |
||
|
4
|
4
12040303
Ah Screw Din6912 M4X30
TX30 |
12040303 |
— | ||
|
5
|
5
77239004000 StatorTX30 |
77239004000 |
US $199.16 |
||
|
6
|
6
25050166
Hh Collar Screw M5X16 Tx30
TX30 |
25050166 |
— | ||
|
7
|
7
77230002050 Wiring Retaining BracketTX30 |
77230002050 |
US $10.37 |
||
|
8
|
8
25060166
Hh Collar Screw M6X16 Tx30
TX30 |
25060166 |
— | ||
|
9
|
9
80030058060 Oil jet "60" m4TX30 |
80030058060 |
US $10.27 |
||
|
10
|
10
7723000200015 Ignition CoverTX30 |
7723000200015 |
US $161.62 |
||
|
11
|
11
913050063
Thread Pin Din 913 M5X6
TX30 |
913050063 |
— | ||
|
12
|
12
402040980
Needle Rol.din5402 Nrb 4X9,8
TX30 |
402040980 |
— | ||
|
13
|
13
77240043000 Gasket torque limiterTX30 |
77240043000 |
US $2.84 |
||
|
14
|
14
7723000201015 Cover Torque LimiterTX30 |
7723000201015 |
US $32.57 |
||
|
15
|
15
25060256
Hh Collar Screw M6X25 Tx30
TX30 |
25060256 |
— | ||
|
16
|
16
7700240251
O-Ring 24X2,5 Viton
TX30 |
7700240251 |
— | ||
|
17
|
17
7723000206030
Screw Plug M24X1,5
TX30 |
7723000206030 |
— | ||
| replacement | |||||
|
17
|
17
7723000216030 Screw Plug M24X1,5TX30 |
7723000216030 |
US $39.24 |
||
|
18
|
18
77239090000 Spark plug connectorTX30 |
77239090000 |
US $32.98 |
||
|
19
|
19
77239093000 Plug ngk lmar9ai - 8TX30 |
77239093000 |
US $23.63 |
||
|
20
|
20
25060506
Hh Collar Screw M6X50 Tx30
TX30 |
25060506 |
— | ||
|
21
|
21
25060306
Hh Collar Screw M6X30 Tx30
TX30 |
25060306 |
— | ||
|
22
|
22
58439006000 Ignitioncoil ig3826 kokusan'9696 |
58439006000 |
US $83.22 |
||
|
23
|
23
25060406
Hh Collar Screw M6X40 Tx30
TX30 |
25060406 |
— | ||
