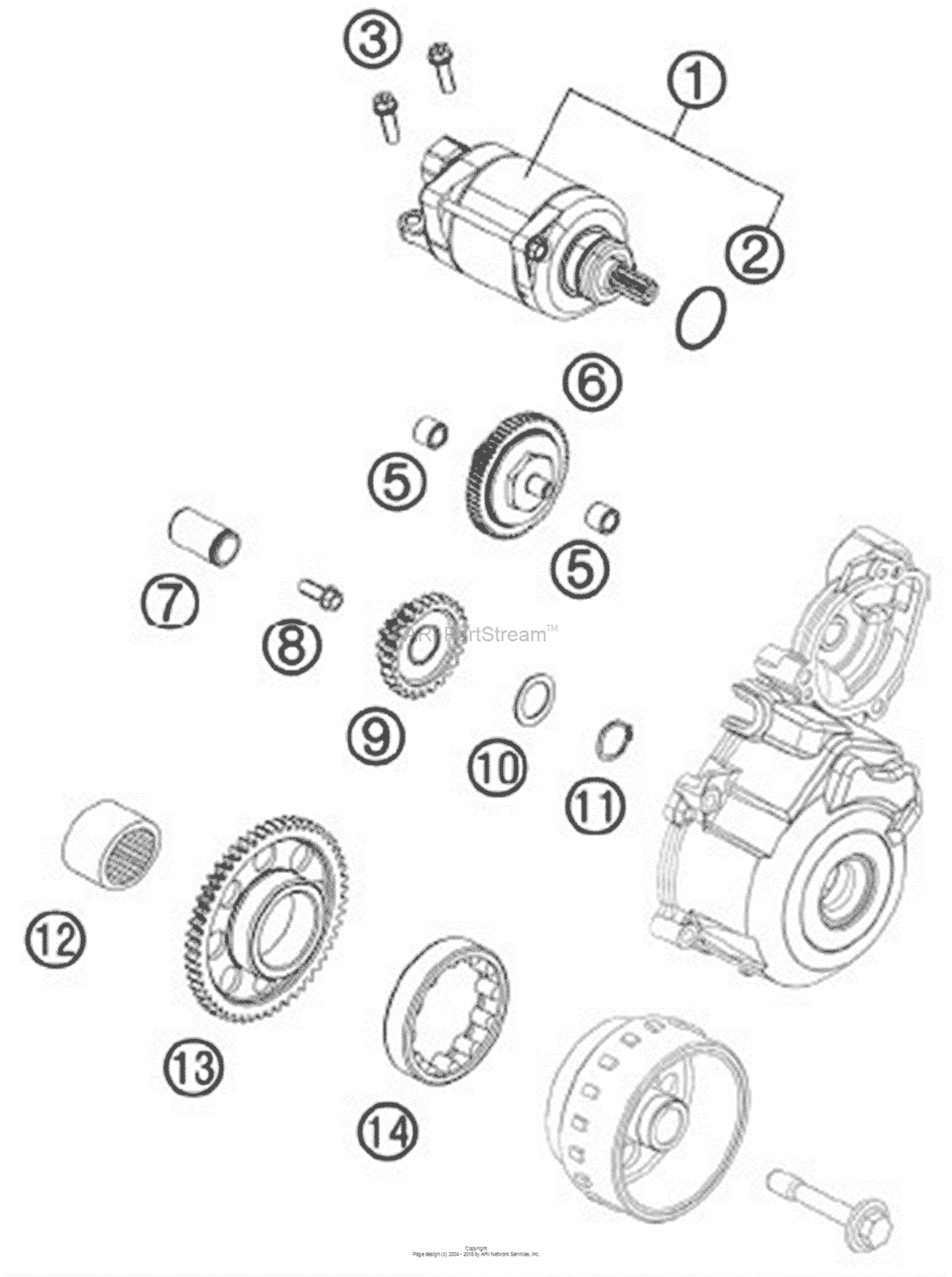

Electric Starter Diagram KTM 350 350 SX-F
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 350
- Model
- 350 SX-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77240001100 E-Starter Engine Cpl00 |
77240001100 |
US $284.92 |
||
|
2
|
2
0770250030 O-ring 25,00x3,00 nbr 7000 |
0770250030 |
US $4.35 |
||
|
3
|
3
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
5
|
5
0618081210 Needle Bush Hk 0810 Din 618TX30 |
0618081210 |
US $3.67 |
||
|
6
|
6
77240016000 Torque LimiterTX30 |
77240016000 |
US $147.19 |
||
|
7
|
7
59040028000 Bushing pinTX30 |
59040028000 |
US $9.04 |
||
|
8
|
8
0015060163 Hh Collar Screw M 6X16 Ws=8WS=8 |
0015060163 |
US $2.23 |
||
|
9
|
9
77240022000 Intermediate Starting GearWS=8 |
77240022000 |
US $72.11 |
||
|
10
|
10
54633090000 Stop disk 17,2x25x1WS=8 |
54633090000 |
US $2.94 |
||
|
11
|
11
0471170010 Circlip Din0471-17X1WS=8 |
0471170010 |
US $1 |
||
|
12
|
12
0618301617 Needle bearing hk 3016 bWS=8 |
0618301617 |
US $11.80 |
||
|
13
|
13
77240020000 Freewheel GearWS=8 |
77240020000 |
US $87.30 |
||
|
14
|
14
77240026000 Roller free wheelWS=8 |
77240026000 |
US $262.34 |
