	Description	OEM Part #	Price
1	1 79236009000 Camshaft Intake TX30	79236009000	US $261.15
2	2 79236010044 Camshaft Exhaust Cpl TX30	79236010044	US $358.60
3	3 79236004000 Timing Chain Guide Top TX30	79236004000	US $39.49
4	4 79236001000 Guide Rail TX30	79236001000	US $10.57
5	5 79236002000 Tensioning Rail TX30	79236002000	US $21.54
6	6 77236001160 Bushing Screw M6 TX30	77236001160	US $4.34
7	7 77236002160 Bushing Screw M8 TX30	77236002160	US $2.28
8	8 0770180020 O-ring 18,00x2,00 nbr 70 TX30	0770180020	US $2.64
9	9 77036003000 Chain adjuster hyd. 05 TX30	77036003000	US $95.13
10	10 0603242920 Cu seal-ring din7603 a24x29x2 TX30	0603242920	US $2.13
11	11 77336008000 Holding bolt m24x1,5 TX30	77336008000	US $17.48
12	12 0770010010 O-ring 10,00x1,00 nbr 70 sh TX30	0770010010	US $2.24
13	13 77236080000 Screw Plug TX30	77236080000	US $6.95
	replacement
13	13 77236080100 Screw Plug TX30	77236080100	US $2.69
14	14 77236081000 Angle piece f. breather system TX30	77236081000	US $4.49
15	15 77236005000 Securing protection TX30	77236005000	US $3.38
16	16 79236013100 Timing Chain TX30	79236013100	US $133.99
17	17 79236016000 Deco Lever TX30	79236016000	US $28.95
18	18 0402061780 Needle Roller TX30	0402061780	US $1.87
19	19 77336016055 Deco Spring Pin L=10,6 07 TX30	77336016055	US $18.05
20	20 77336017030 Spring For Auto Decompr TX30	77336017030	US $2.11
21	21 77336017050 Deco Screw Plug TX30	77336017050	US $15.79

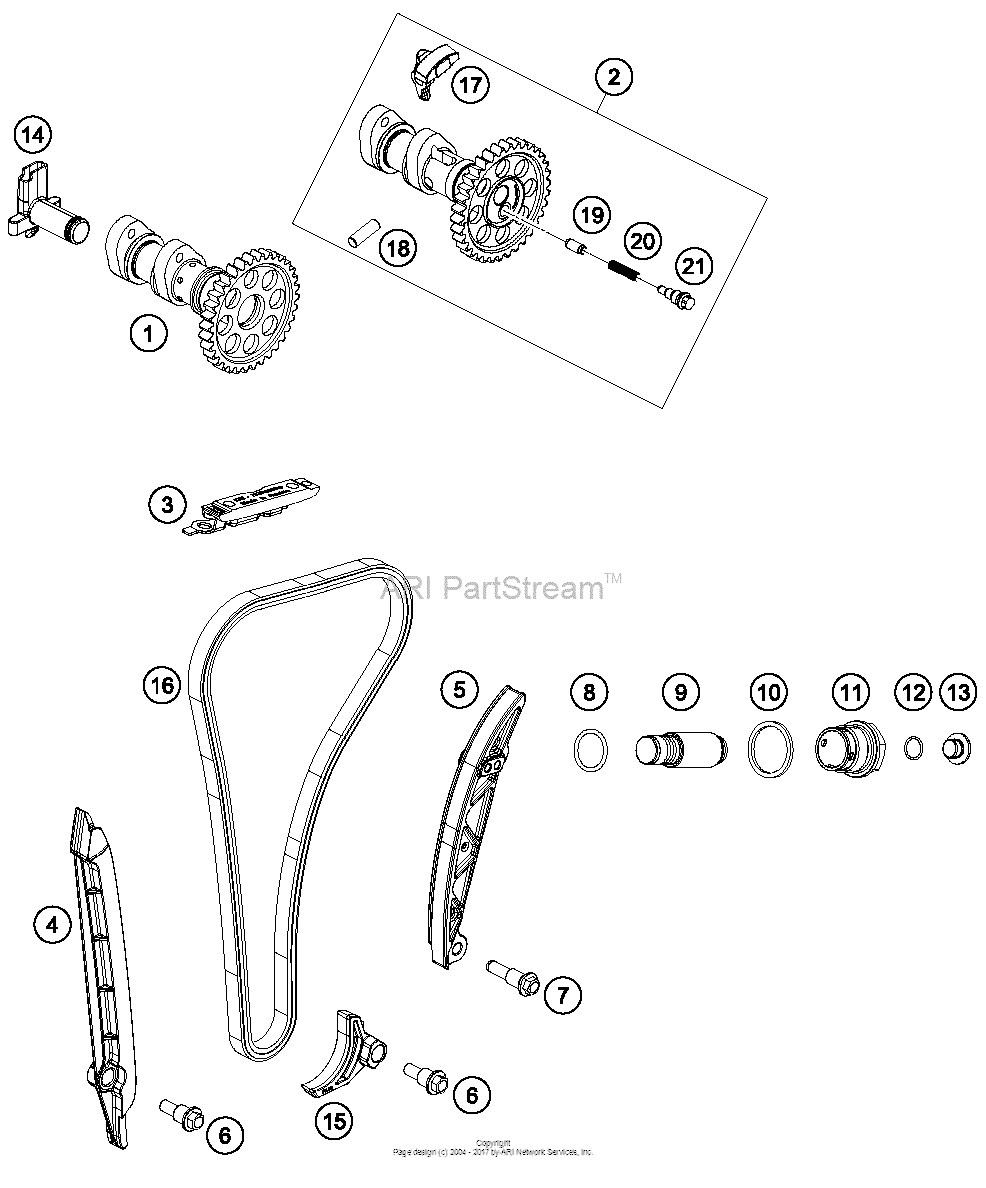

Timing Drive Diagram KTM 350 350 XC-F US/EU 18089222-939848
