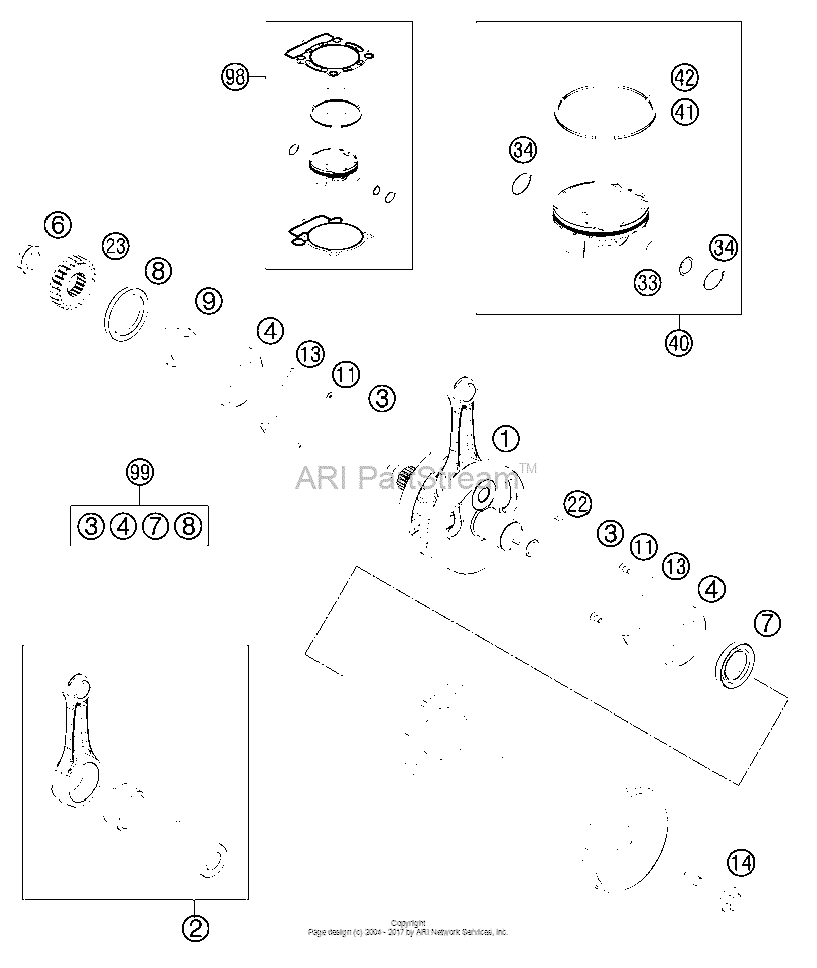

Crankshaft, Piston Diagram KTM 350 350 XCF-W
- Year
- 2013
- Sales region
- US/EU
- Engine Capacity
- 350
- Model
- 350 XCF-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77530018000 Crankshaft CplT20 |
77530018000 |
US $938.91 |
||
|
2
|
2
77230115044 Connecting Rod Repair SetT20 |
77230115044 |
US $551.94 |
||
| replacement | |||||
|
2
|
2
77230015044 Connecting Rod Repair SetT20 |
77230015044 |
US $456.88 |
||
|
3
|
3
56030081000 Thrust washer 30,5x45x0,10As Required |
56030081000 |
US $0.43 |
||
|
3
|
3
56030081100 Thrust washer 30,7x47x0,15As Required |
56030081100 |
US $0.94 |
||
|
3
|
3
56030081200 Thrust washer 30,5x45x0,30As Required |
56030081200 |
US $1.21 |
||
|
4
|
4
77330082200 Bearing Nj 206 Ecp/hn3C4Hva624As Required |
77330082200 |
US $85.58 |
||
|
6
|
6
77230029000 Nut primary wheelAs Required |
77230029000 |
US $14.99 |
||
| replacement | |||||
|
6
|
6
0910001801000S Nut primary wheelAs Required |
0910001801000S |
US $14.99 |
||
|
7
|
7
0760304772 Sh.seal Ring 30X47X7 Bsl VitonAs Required |
0760304772 |
US $26.23 |
||
|
8
|
8
0760405560 Shaft seal ring a40x55x6 vitonAs Required |
0760405560 |
US $13.04 |
||
|
9
|
9
77232022000 Spacer Bushing Primary GearAs Required |
77232022000 |
US $22.27 |
||
|
11
|
11
0019050106 Int. Torx Flat Head M5X10As Required |
0019050106 |
US $0.61 |
||
| replacement | |||||
|
11
|
11
0019050106S Int. Torx Flat Head M5X10 10.9As Required |
0019050106S |
US $0.27 |
||
|
13
|
13
75030085000 Retaining plate f. cs bearingAs Required |
75030085000 |
US $4.08 |
||
|
14
|
14
77339010100 Flywheel screwAs Required |
77339010100 |
US $4.66 |
||
|
22
|
22
0888030037 Woodruff key din6888-3x3,7As Required |
0888030037 |
US $0.58 |
||
|
23
|
23
77232023024 Primary Gear 24TAs Required |
77232023024 |
US $83.40 |
||
|
33
|
33
77230133000 Piston Pin 350As Required |
77230133000 |
US $53.60 |
||
|
34
|
34
77230174000 CirclipAs Required |
77230174000 |
US $2.47 |
||
|
40
|
40
77530107100I
Piston I Cpl. 350
As Required |
77530107100I |
— | ||
|
40
|
40
77530107100II
Piston Ii Cpl. 350
As Required |
77530107100II |
— | ||
|
41
|
41
77230032100 Oil Scraper RingAs Required |
77230032100 |
US $52.77 |
||
|
42
|
42
77230030000 Compressionring 350As Required |
77230030000 |
US $43.23 |
||
|
98
|
98
00050000200
Piston Kit Gr.i 350 Exc-F12-13
As Required, 12 |
00050000200 |
— | ||
| replacement | |||||
|
98
|
98
77530107010I Piston Kit Gr.i 350 Exc-F12-13 12As Required, 12 |
77530107010I |
US $649.09 |
||
|
98
|
98
00050000201
Piston Kit Gr.ii 350 Exc-F 12
As Required, 12 |
00050000201 |
— | ||
| replacement | |||||
|
98
|
98
77530107010II Piston Kit Gr.ii 350 Exc-F 12 12As Required, 12 |
77530107010II |
US $644.03 |
||
|
99
|
99
00050002303 Crankshaft Rep. Kit 350Sx-FAs Required |
00050002303 |
US $178.57 |
||
