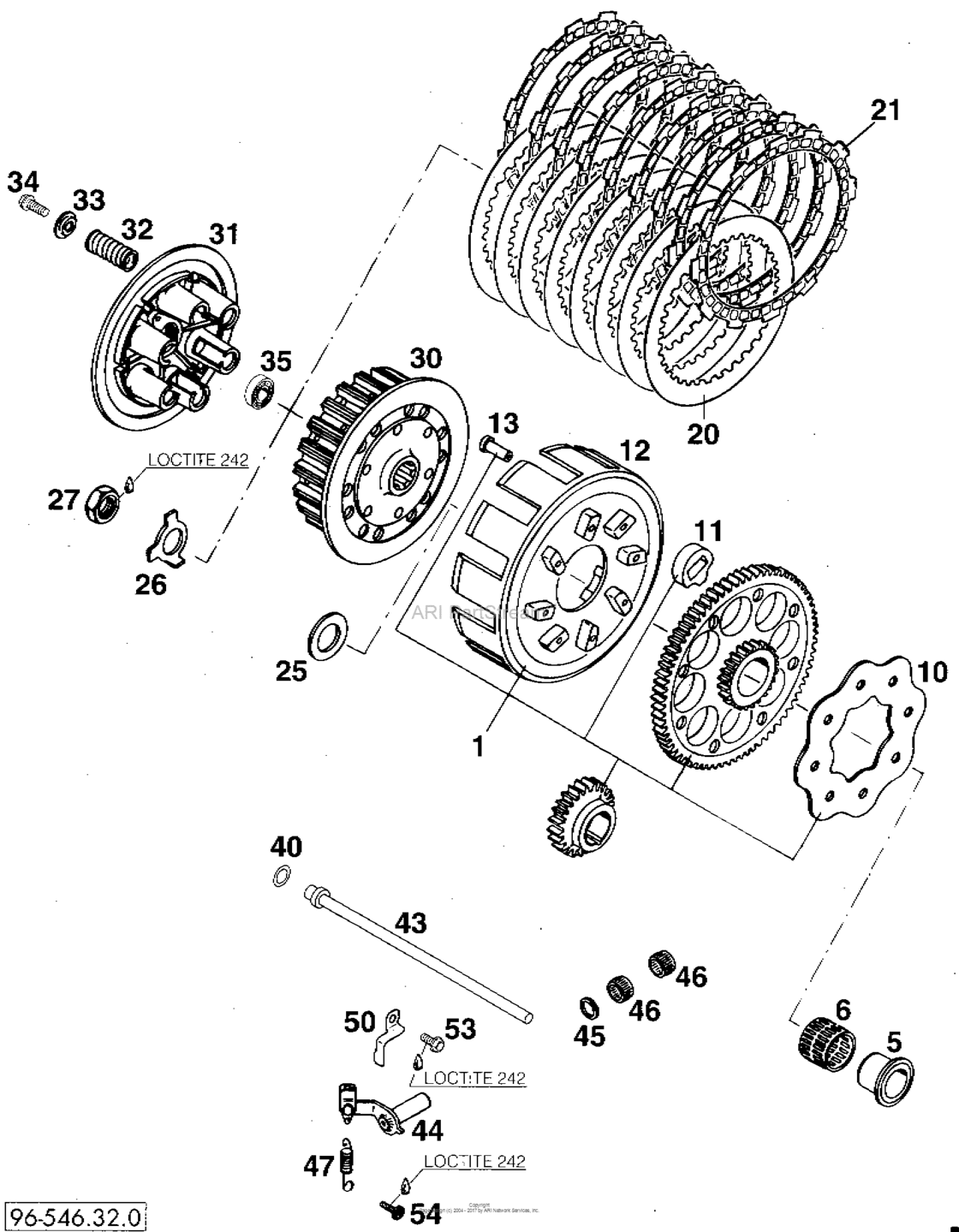

Clutch Diagram KTM 360 360 MXC
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 360
- Model
- 360 MXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
988121805
Washer
(As Required) |
988121805 |
— | ||
|
|
988121810
Vvasher : 2X1 8X1
(As Required) |
988121810 |
— | ||
|
1
|
1
54632001272 Outer clutch hub 72t prim. 25t(As Required) |
54632001272 |
US $526.24 |
||
|
1
|
1
54632001372 Outer clutch hub 72t prim. 26t(As Required) |
54632001372 |
US $526.24 |
||
|
5
|
5
50332070000 Inner ring with collar(As Required) |
50332070000 |
US $47.52 |
||
|
6
|
6
56532095000 Needle bearing k26x30x22zw.kse(As Required) |
56532095000 |
US $21.51 |
||
|
10
|
10
58132028000 Retaining plate(As Required) |
58132028000 |
US $6.87 |
||
|
11
|
11
58132026000 Damping element(As Required) |
58132026000 |
US $6.39 |
||
|
12
|
12
54632001200
Outer clutch hub loose
(As Required) |
54632001200 |
— | ||
|
13
|
13
733060150
Rivet
(As Required) |
733060150 |
— | ||
|
20
|
20
54632012000 Steel Disc(As Required) |
54632012000 |
US $14.98 |
||
| replacement | |||||
|
20
|
20
54832012100 Steel disc(As Required) |
54832012100 |
US $8.48 |
||
|
21
|
21
54632011300
Organic Disk
(As Required) |
54632011300 |
— | ||
| replacement | |||||
|
21
|
21
54832011000 Lining disc fcc 04(As Required) |
54832011000 |
US $21.69 |
||
|
25
|
25
57532013000 Supportwasher 22,2x35x3 harde.(As Required) |
57532013000 |
US $22.51 |
||
|
26
|
26
56532018000 Lock Washer(As Required) |
56532018000 |
US $4.73 |
||
|
27
|
27
0936181505 Hexagon Nut Din0936-M18X1,5 R(As Required) |
0936181505 |
US $7.60 |
||
|
30
|
30
54632002200 Inner clutch hub(As Required) |
54632002200 |
US $152.25 |
||
|
31
|
31
58132003100 Pressure cap '96(As Required) |
58132003100 |
US $85.60 |
||
|
32
|
32
54632080000 Clutch spring 2,5x43 8,5w(As Required) |
54632080000 |
US $5.76 |
||
|
33
|
33
58132081000 Spring retainer 6,2 x 20 x 3,2(As Required) |
58132081000 |
US $1.79 |
||
|
34
|
34
0015060163 Hh Collar Screw M 6X16 Ws=8(As Required) |
0015060163 |
US $2.23 |
||
|
35
|
35
0625060010 Ball bearing 6001 c3(As Required) |
0625060010 |
US $10.08 |
||
|
40
|
40
988121802
Washer
(As Required) |
988121802 |
— | ||
|
43
|
43
54632017344
Push rod cpl 219 mm '96
(As Required) |
54632017344 |
— | ||
|
44
|
44
54632014544
Clutch release shaft '93
(As Required) |
54632014544 |
— | ||
|
45
|
45
54632090000 Seal ring dh/gr 12x16x3(As Required) |
54632090000 |
US $11.03 |
||
|
46
|
46
50232095000 Needle bearing hk 1210(As Required) |
50232095000 |
US $7.41 |
||
|
47
|
47
54632050500
Release lever spring l=33mm'93
(As Required) |
54632050500 |
— | ||
|
50
|
50
54632016500
Release retaining plate '93
(As Required) |
54632016500 |
— | ||
|
53
|
53
0015050123
Hh collar screw m 5x12 ws=8
(As Required) |
0015050123 |
— | ||
| replacement | |||||
|
53
|
53
0025050126 Hh collar screw m5x12 tx30(As Required) |
0025050126 |
US $3.38 |
||
|
54
|
54
0985050103 Oval head scr. din7985-m 5x10(As Required) |
0985050103 |
US $2.18 |
||
