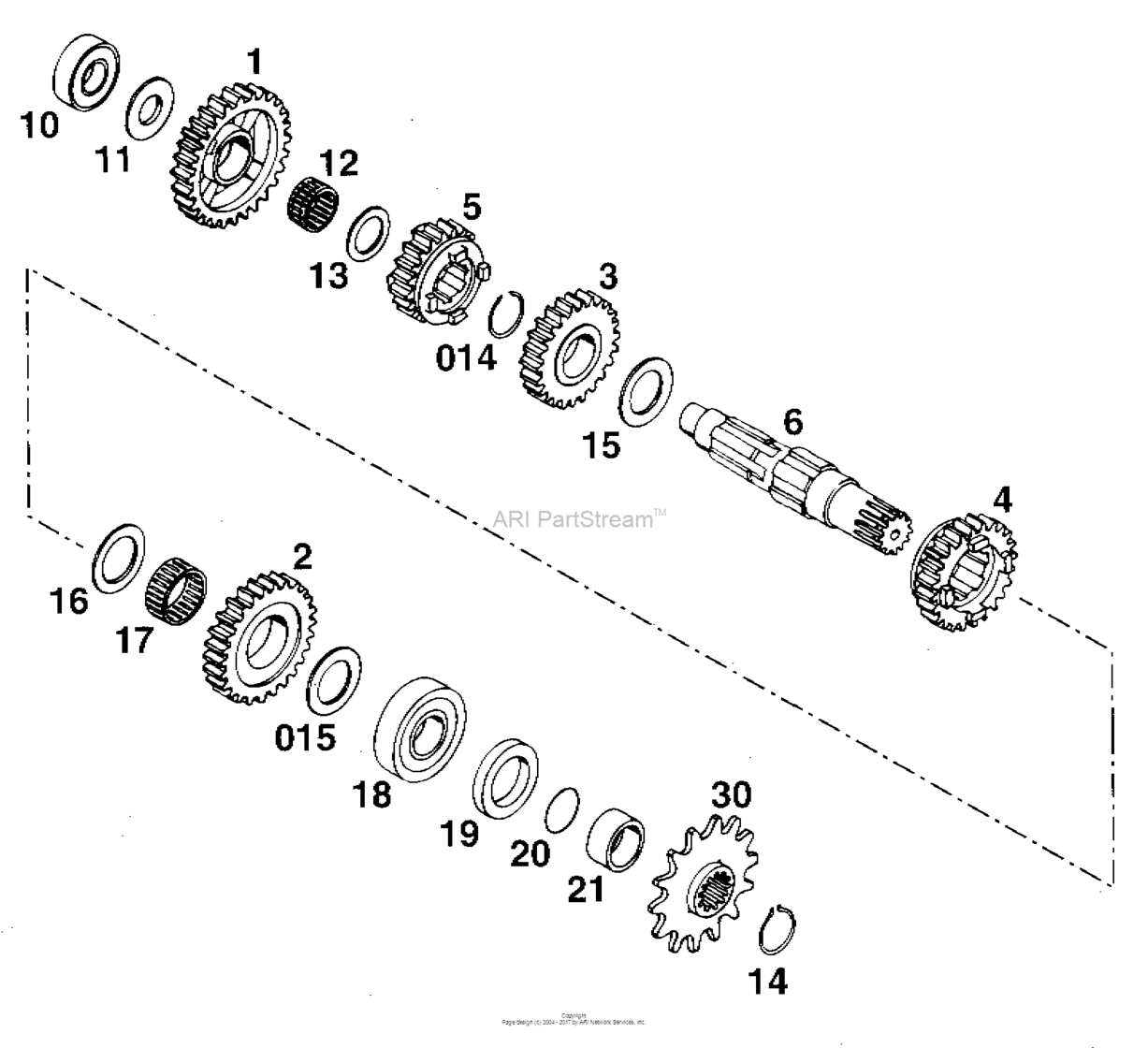

Transmission Ll Diagram KTM 360 360 MXC
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 360
- Model
- 360 MXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54633005000 Idler gear 1st gear 29-t "430"(As Required) |
54633005000 |
US $260.24 |
||
|
2
|
2
54633013000 2nd gear countersh.27-t "450"(As Required) |
54633013000 |
US $134.49 |
||
|
2
|
2
54633113000 Idler gear 2nd gear 26-t "455"(As Required) |
54633113000 |
US $254.07 |
||
|
3
|
3
54633009000 3rd gear countersh.25-t "470"(As Required) |
54633009000 |
US $126.77 |
||
|
3
|
3
54633009100 Idler gear 3rd gear 24-t "472"(As Required) |
54633009100 |
US $113.48 |
||
|
3
|
3
54633109000
Idler gear 3rd gear 22-t "475"
(As Required) |
54633109000 |
— | ||
|
4
|
4
54633011000 Sliding gear 4th g. 23-t "490"(As Required) |
54633011000 |
US $222.84 |
||
|
4
|
4
54633111000
Sliding gear 4th g. 20-t "495"
(As Required) |
54633111000 |
— | ||
|
5
|
5
54633007300 Sliding gear 5th g. 21-t "512"(As Required) |
54633007300 |
US $205.09 |
||
|
5
|
5
54633107300 Sliding gear 5th g. 18-t "517"(As Required) |
54633107300 |
US $241.28 |
||
|
6
|
6
54633003400
Counter shaft '93
(As Required) |
54633003400 |
— | ||
|
10
|
10
625062031
Bearing
(As Required) |
625062031 |
— | ||
|
11
|
11
54633018000 Stop disk 17,2x34x1,5(As Required) |
54633018000 |
US $7.79 |
||
|
12
|
12
56533099000 Needle Bear. K 22X26X13 Tn(As Required) |
56533099000 |
US $11.36 |
||
| replacement | |||||
|
12
|
12
0405222613 Needle Bear. K 22X26X13 Tn(As Required) |
0405222613 |
US $9.52 |
||
|
13
|
13
54633017000
Stop disk 22,2x33x1,5
(As Required) |
54633017000 |
— | ||
|
14
|
14
52033096000 Lock ring din0471-25x1,64sd(As Required) |
52033096000 |
US $4.17 |
||
|
14
|
14
54633196000
Axial circlip 25x2,0
(As Required) |
54633196000 |
— | ||
|
15
|
15
54633020400 Stop disk 26,1x40x1,5(As Required) |
54633020400 |
US $5.15 |
||
|
15
|
15
54633020000 Stop disk 25,6x40x1,5(As Required) |
54633020000 |
US $6.17 |
||
|
16
|
16
54633019000
Stop disk 28,2x40x1,5
(As Required) |
54633019000 |
— | ||
|
17
|
17
54633098000 Needle bearing k 28x33x13 b(As Required) |
54633098000 |
US $18.75 |
||
|
18
|
18
625613742
Superseded By 54833025000
(As Required) |
625613742 |
— | ||
|
19
|
19
760324271
Seal Ring 32X42X7 Bsl
(As Required) |
760324271 |
— | ||
|
20
|
20
770250020
O-Ring 25,00X2,00 Nbr 70
(As Required) |
770250020 |
— | ||
|
21
|
21
54633014100
Spacer bushing 12mm
(As Required) |
54633014100 |
— | ||
| replacement | |||||
|
21
|
21
76633030012 Spacer bushing 12mm(As Required) |
76633030012 |
US $15.16 |
||
|
30
|
30
50033029013
Sprocket 13T
(As Required) |
50033029013 |
— | ||
| replacement | |||||
|
30
|
30
79233029013 Sprocket 13T(As Required) |
79233029013 |
US $33.08 |
||
|
30
|
30
50033029014
Front sprocket 14-t
(As Required) |
50033029014 |
— | ||
| replacement | |||||
|
30
|
30
79233029014 Sprocket 14T(As Required) |
79233029014 |
US $34.80 |
||
|
30
|
30
50033029015 Front sprocket 15-t(As Required) |
50033029015 |
US $33.59 |
||
