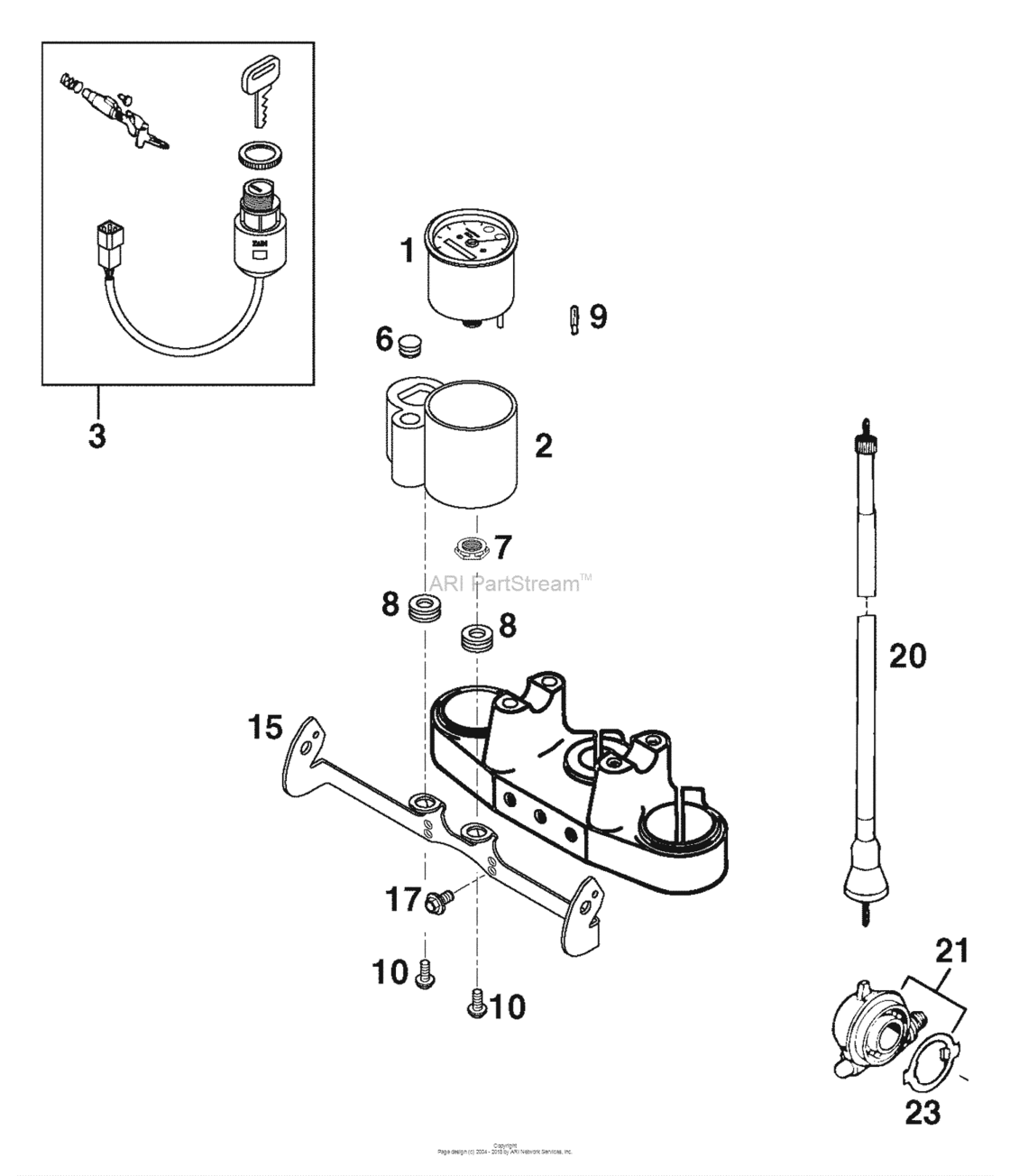

Speedometer Diagram KTM 380 380 EGS
- Year
- 1999
- Sales region
- US/EU
- Engine Capacity
- 380
- Model
- 380 EGS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50314057000
Speedometer facomsa 180 kmh'99
(As Required) |
50314057000 |
— | ||
|
2
|
2
50314065100
Speedometer Case 125-380 Egs
(As Required) |
50314065100 |
— | ||
|
3
|
3
50311065000
Ignition lock cpl. zadi '99
(As Required) |
50311065000 |
— | ||
|
6
|
6
50210086000 Covering cap sfl16(As Required) |
50210086000 |
US $3.54 |
||
|
7
|
7
50314057050 Collar nut m12x1/ws17 h=5mm(As Required) |
50314057050 |
US $7.26 |
||
|
8
|
8
31008060000 Rubber Sleeve D=8Mm Open(As Required) |
31008060000 |
US $1.09 |
||
|
9
|
9
49111425000 Bulb 12V 2,3W (W2X4,6D)(As Required) |
49111425000 |
US $4.18 |
||
| replacement | |||||
|
9
|
9
49111425200 Bulb 12v 2,3w (w2x4,6d)(As Required) |
49111425200 |
US $1.96 |
||
|
10
|
10
0016050121
Screw for plastic 50x12
(As Required) |
0016050121 |
— | ||
| replacement | |||||
|
10
|
10
0081050121 Screw for plastic k50x12 t20(As Required) |
0081050121 |
US $1.19 |
||
|
15
|
15
50314061000
Speedom.bracket 125-380 egs'99
(As Required) |
50314061000 |
— | ||
|
17
|
17
0014060103
Hh Collar Screw M6X10 Tx30
(As Required) |
0014060103 |
— | ||
| replacement | |||||
|
17
|
17
0024060106 Hh collar screw m6x10 tx30(As Required) |
0024060106 |
US $4.35 |
||
|
20
|
20
58414055100
Speedom.cable M12/m12 960Mm'99
(As Required) |
58414055100 |
— | ||
| replacement | |||||
|
20
|
20
58414055200 Speedom.cable M12/m12 960Mm'99(As Required) |
58414055200 |
US $53.70 |
||
|
21
|
21
58111052100
Odometer Drive
(As Required) |
58111052100 |
— | ||
|
23
|
23
58111053100 Driving dog f.speedom.drive'92(As Required) |
58111053100 |
US $6.83 |
||
