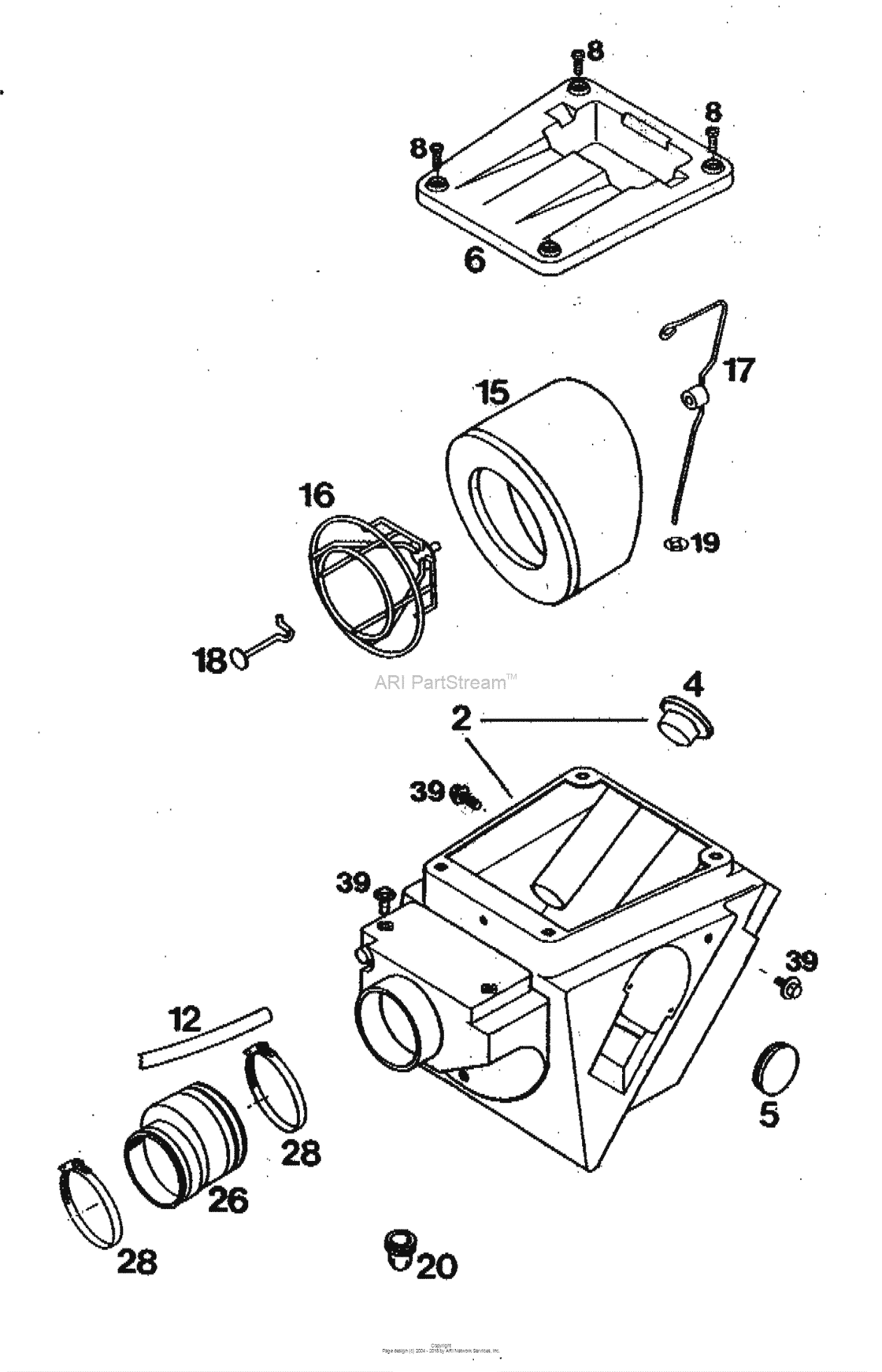

Air Filter Box Diagram KTM 400 400 Duke
- Year
- 1994
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
58306001100
Filter box cpl. without sls'94
LC4'94 |
58306001100 |
— | ||
|
4
|
4
58306004000
Plug 30 mmm
(As Required) |
58306004000 |
— | ||
|
5
|
5
54606004000 Plug 37mm(As Required) |
54606004000 |
US $1.89 |
||
|
6
|
6
58306102000
Filter box cover closed
(As Required) |
58306102000 |
— | ||
|
8
|
8
0985050103 Oval head scr. din7985-m 5x10(As Required) |
0985050103 |
US $2.18 |
||
|
12
|
12
57005020001 Hose 10x14 per meter(As Required) |
57005020001 |
US $13.86 |
||
|
15
|
15
56506015100 Airfilter(As Required) |
56506015100 |
US $37.84 |
||
|
16
|
16
58306016000 Filter Frame Lc4(As Required) |
58306016000 |
US $35.41 |
||
| replacement | |||||
|
16
|
16
58606016000
Filter carrier 05
(As Required) |
58606016000 |
— | ||
|
17
|
17
58306017000
Filter bracket 4str. '93
(As Required) |
58306017000 |
— | ||
|
18
|
18
58306017050 Hook for filter bracket(As Required) |
58306017050 |
US $14.50 |
||
|
19
|
19
54606019004
Clamping disk ks4
(As Required) |
54606019004 |
— | ||
|
20
|
20
50206020000 Rubber grimmet slotted(As Required) |
50206020000 |
US $4.06 |
||
|
26
|
26
58306026000
Carburetor connection boot '98
(As Required) |
58306026000 |
— | ||
|
28
|
28
55006028000 Hose clamp 60-80mm(As Required) |
55006028000 |
US $5.46 |
||
|
39
|
39
0014060103
Hh Collar Screw M6X10 Tx30
SW=8 |
0014060103 |
— | ||
| replacement | |||||
|
39
|
39
0024060106 Hh collar screw m6x10 tx30SW=8 |
0024060106 |
US $4.35 |
||
