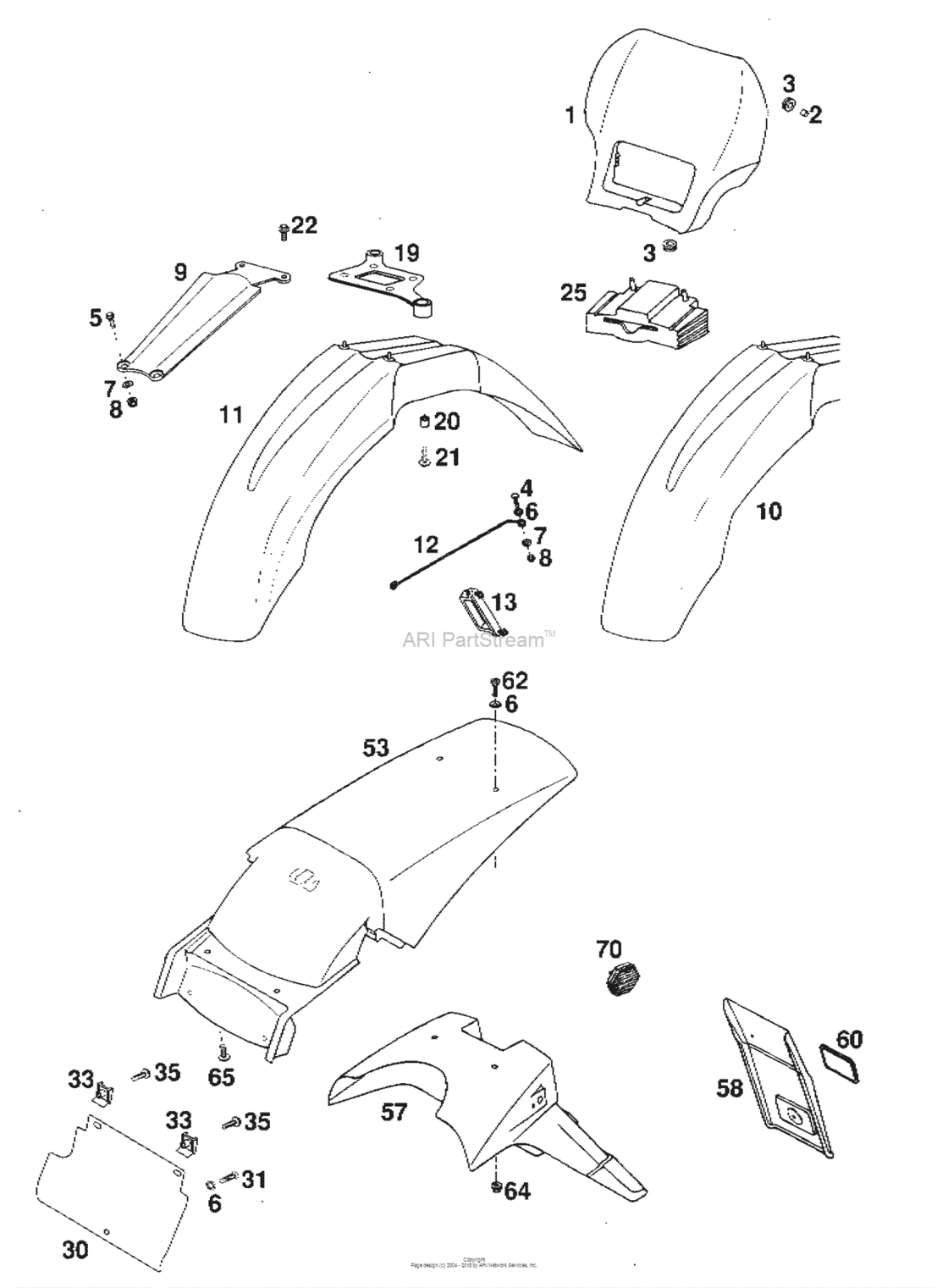

Fenders Diagram KTM 400 400 EGS-E
- Year
- 1997
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 EGS-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5021140100002
Headlight Mask
96 |
5021140100002 |
— | ||
|
2
|
2
58011039000 Spacer bushing 6,5 x 8 x 796 |
58011039000 |
US $1.79 |
||
|
3
|
3
31008060000 Rubber Sleeve D=8Mm Open96 |
31008060000 |
US $1.09 |
||
|
4
|
4
0966050163 Oval head screw din0966-m 5x1696 |
0966050163 |
US $2.18 |
||
|
5
|
5
0015050163 Hh Collar Screw M 5X16 Ws=8WS=8 |
0015050163 |
US $1.31 |
||
|
6
|
6
40006006000 Washer 6mmWS=8 |
40006006000 |
US $2.18 |
||
|
7
|
7
0021050003 Washer din9021-a 5,3WS=8 |
0021050003 |
US $1.29 |
||
|
8
|
8
0985050003 Self Locking Nut Din0985-M 5WS=8 |
0985050003 |
US $3.26 |
||
|
9
|
9
5020800910030
Fender brace black '96
96 |
5020800910030 |
— | ||
|
9
|
9
5020800910068
Fender brace blue '97
97 |
5020800910068 |
— | ||
|
9
|
9
50208009200
Fender Bracket
95 |
50208009200 |
— | ||
|
10
|
10
5020841000002
Front Fender
96 |
5020841000002 |
— | ||
|
11
|
11
50208410100
Front fender white '96
96 |
50208410100 |
— | ||
|
12
|
12
54501092100
Speedo.cable refu. l=260mm'91
91 |
54501092100 |
— | ||
|
12
|
12
58414066000 Speedom.cable refu. l=234mm'9797 |
58414066000 |
US $7.94 |
||
|
13
|
13
54601093000 Cable guide cpl.97 |
54601093000 |
US $11.58 |
||
|
19
|
19
54608019100 Cable guide wp/paioli '9393 |
54608019100 |
US $10.40 |
||
|
20
|
20
50208020000 Spacer Bushing 7X10X7,593 |
50208020000 |
US $3.60 |
||
|
21
|
21
0014060203 Hh Collar Screw M 6X20 Ws=8WS=8 |
0014060203 |
US $3.26 |
||
|
22
|
22
0014060153
Hh Collar Screw M6X15 Tx30
WS=8 |
0014060153 |
— | ||
| replacement | |||||
|
22
|
22
0024060156 Hh collar screw m6x15 tx30WS=8 |
0024060156 |
US $3.96 |
||
|
25
|
25
50211402000
Spacer for headlight mask '93
93 |
50211402000 |
— | ||
|
30
|
30
58308013250
Fender extension lc4-e '97
97 |
58308013250 |
— | ||
|
31
|
31
0016055163 Screw For Plastic D=5X1897 |
0016055163 |
US $1.21 |
||
| replacement | |||||
|
31
|
31
0017050181 Screw for plastic d=5x1897 |
0017050181 |
US $0.61 |
||
|
33
|
33
54603048100 Range Change Metal Nut M697 |
54603048100 |
US $5.27 |
||
|
35
|
35
0014060133
Hh collar screw m 6x13 ws=8
WS=8 |
0014060133 |
— | ||
| replacement | |||||
|
35
|
35
0024060136 Hh collar screw m6x13 tx30WS=8 |
0024060136 |
US $2.09 |
||
|
53
|
53
58308013200
Fender rear white '96
96 |
58308013200 |
— | ||
|
53
|
53
5830801320002
Fender rear orange '96
96 |
5830801320002 |
— | ||
|
57
|
57
58308013051 Number plate carrier egs '9393 |
58308013051 |
US $58.96 |
||
|
58
|
58
49008216000
Extension for number plate
93 |
49008216000 |
— | ||
|
60
|
60
51012080000
Reflector Self-Adhesiv Red
93 |
51012080000 |
— | ||
| replacement | |||||
|
60
|
60
51012180000 Reflector Self-Adhesiv Red93 |
51012180000 |
US $12.33 |
||
|
62
|
62
0991060203 Flat Head Din7991-M 6X2093 |
0991060203 |
US $2.99 |
||
| replacement | |||||
|
62
|
62
0991060202 Flat head din7991-m 6x2093 |
0991060202 |
US $3.26 |
||
|
64
|
64
56509064000 Self Locking Nut M6 10.993 |
56509064000 |
US $1.14 |
||
| replacement | |||||
|
64
|
64
56509064100 Self Locking Nut M6 10.993 |
56509064100 |
US $1.04 |
||
|
65
|
65
0014060133
Hh collar screw m 6x13 ws=8
93 |
0014060133 |
— | ||
| replacement | |||||
|
65
|
65
0024060136 Hh collar screw m6x13 tx3093 |
0024060136 |
US $2.09 |
||
|
70
|
70
16512080000
Reflector yellow cpl.
(As Required) |
16512080000 |
— | ||
