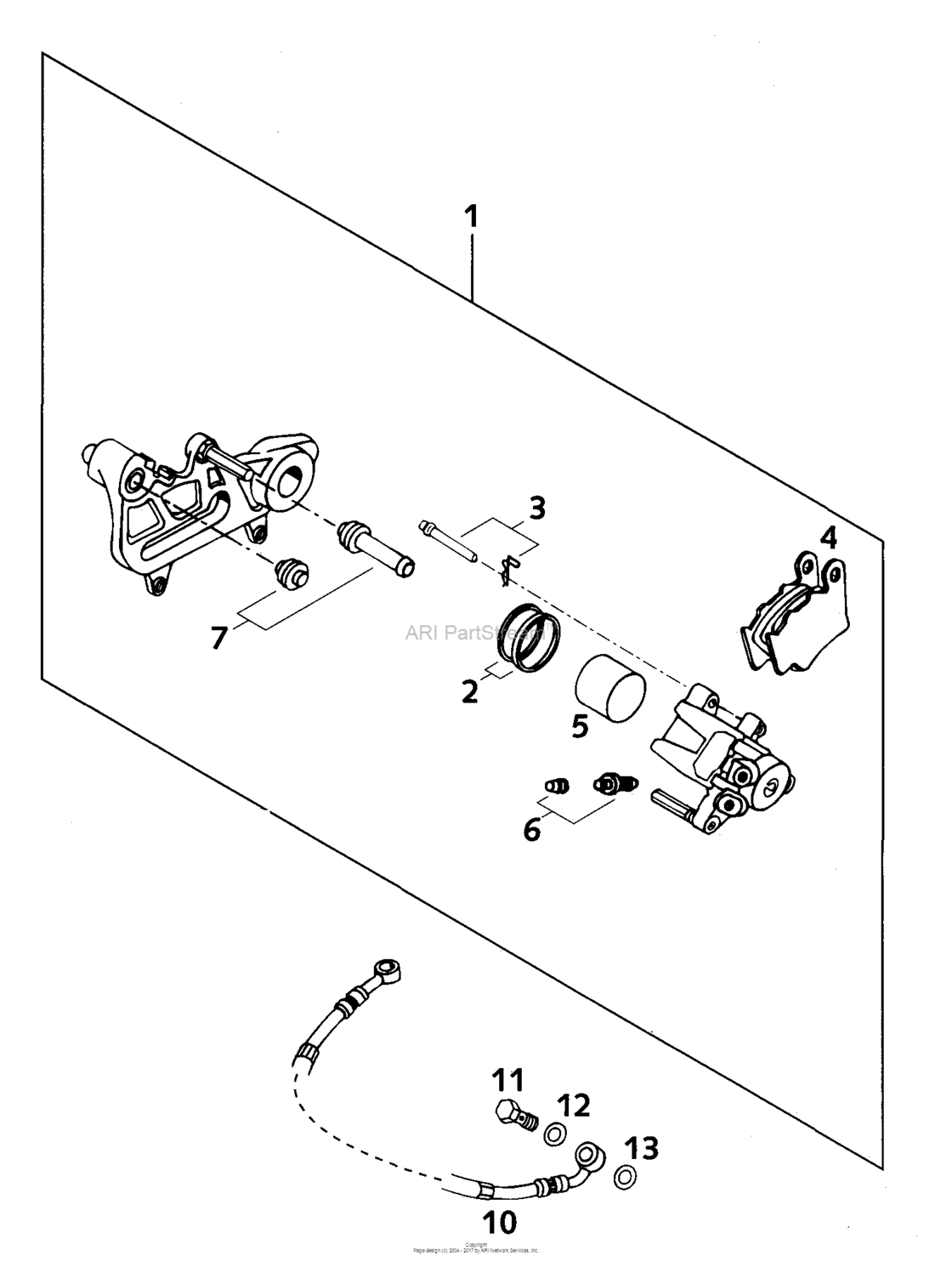

Brake Caliper Rear Diagram KTM 400 400 LC4-E
- Year
- 2001
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 LC4-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50213301644 Brake caliper cpl. rear l/s97 |
50213301644 |
US $292.55 |
||
|
2
|
2
54613318200 Repair Kit Sealing Rings 34Mm97 |
54613318200 |
US $23.24 |
||
|
3
|
3
54613310200 Bolt Set97 |
54613310200 |
US $24.82 |
||
|
4
|
4
54613309200 Brake Pad Set Ferit Id450Ff97 |
54613309200 |
US $51.99 |
||
|
4
|
4
50313090000 Brake pad rear toshiba tth38gf97 |
50313090000 |
US $100.61 |
||
|
5
|
5
54613305200 Brake piston 34mm97 |
54613305200 |
US $45.99 |
||
|
6
|
6
54513214000 Bleeder Screw With Cap97 |
54513214000 |
US $14.89 |
||
| replacement | |||||
|
6
|
6
60013020000 Bleeder Screw With Cap97 |
60013020000 |
US $6.27 |
||
|
7
|
7
54613218000 Cup Set Short97 |
54613218000 |
US $25.72 |
||
| replacement | |||||
|
7
|
7
54613218100 CUP SET SHORT97 |
54613218100 |
US $25.72 |
||
|
10
|
10
58313070000 Brake hose rear 790mm '9797 |
58313070000 |
US $108.46 |
||
|
11
|
11
50213025000 Hollow Screw M10X1X1997 |
50213025000 |
US $5.39 |
||
|
12
|
12
42013226000 Cu-Seal Ring Din7603-10X16X197 |
42013226000 |
US $4.10 |
||
|
13
|
13
42013026000 Cu-seal ring din7603-10x16x1,597 |
42013026000 |
US $2.24 |
||
