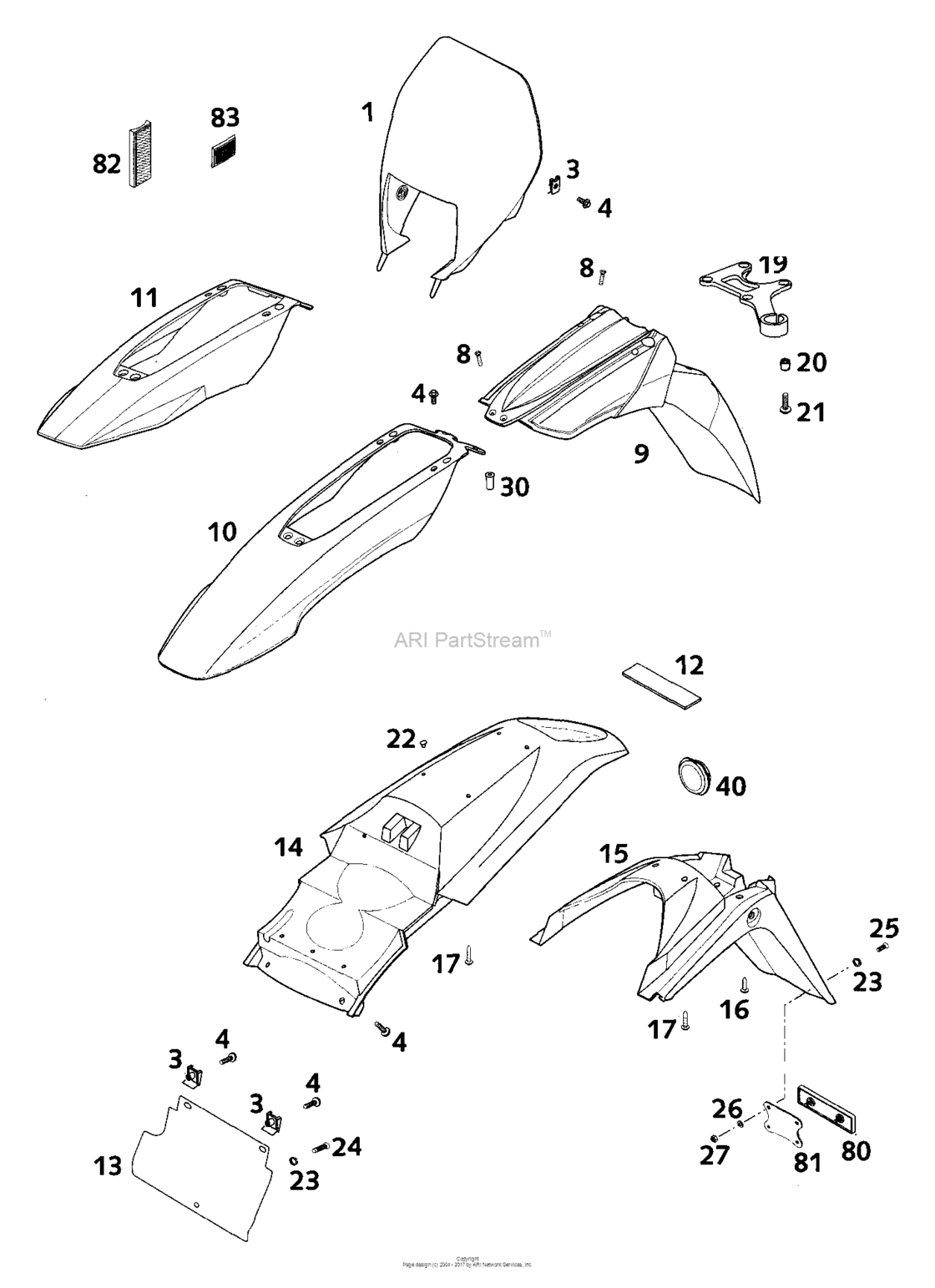

Mask, Fender Diagram KTM 400 400 LC4-E
- Year
- 2001
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 LC4-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5840800100004
Head light mask orange lc4 '98
97 |
5840800100004 |
— | ||
|
1
|
1
5840800100090
Head light mask silver lc4 '99
97 |
5840800100090 |
— | ||
|
3
|
3
54603048100 Range Change Metal Nut M697 |
54603048100 |
US $5.27 |
||
|
4
|
4
0014060153
Hh Collar Screw M6X15 Tx30
97 |
0014060153 |
— | ||
| replacement | |||||
|
4
|
4
0024060156 Hh collar screw m6x15 tx3097 |
0024060156 |
US $3.96 |
||
|
8
|
8
0017050181 Screw for plastic d=5x1897 |
0017050181 |
US $0.61 |
||
|
9
|
9
58408009000
Frontfend.rear part black lc4
97 |
58408009000 |
— | ||
|
10
|
10
5840801000004
Frontfend.frontpart orange lc4
97 |
5840801000004 |
— | ||
|
10
|
10
5840801000090
Frontfend.frontpart silver lc4
97 |
5840801000090 |
— | ||
|
11
|
11
58408010100
Frontfend.fr.part silv.sm 00
97 |
58408010100 |
— | ||
|
12
|
12
54601097000 Rubber strip 85x25x3 mm97 |
54601097000 |
US $0.80 |
||
|
13
|
13
58308013250
Fender extension lc4-e '97
97 |
58308013250 |
— | ||
|
14
|
14
5840801410090
Fender rear silver lc4 '99
97 |
5840801410090 |
— | ||
|
15
|
15
58408015000
Numb.plate carrier black lc4
97 |
58408015000 |
— | ||
|
16
|
16
0017060203
Screw For Plastic K60X20 Sw6
97 |
0017060203 |
— | ||
| replacement | |||||
|
16
|
16
0017060205 Screw For Plastic K60X20 Sw697 |
0017060205 |
US $2.24 |
||
|
17
|
17
0017060303 Special screw t60 6x30 ws=697 |
0017060303 |
US $2.24 |
||
| replacement | |||||
|
17
|
17
0017060305 Special Screw K60X30 Ws=697 |
0017060305 |
US $2.24 |
||
|
19
|
19
59008019000 Brake hose guide 200097 |
59008019000 |
US $3.40 |
||
|
20
|
20
50208020000 Spacer Bushing 7X10X7,597 |
50208020000 |
US $3.60 |
||
|
21
|
21
0014060203 Hh Collar Screw M 6X20 Ws=897 |
0014060203 |
US $3.26 |
||
|
22
|
22
58408012000
Plug Rear Fender
97 |
58408012000 |
— | ||
|
23
|
23
40006006000 Washer 6mm97 |
40006006000 |
US $2.18 |
||
|
24
|
24
0016055163 Screw For Plastic D=5X1897 |
0016055163 |
US $1.21 |
||
| replacement | |||||
|
24
|
24
0017050181 Screw for plastic d=5x1897 |
0017050181 |
US $0.61 |
||
|
25
|
25
0966050163 Oval head screw din0966-m 5x1697 |
0966050163 |
US $2.18 |
||
|
26
|
26
0125050003 Washer Din0125-A 5,397 |
0125050003 |
US $2.18 |
||
|
27
|
27
0985050003 Self Locking Nut Din0985-M 597 |
0985050003 |
US $3.26 |
||
|
30
|
30
58408010050 Bush for fender bracket 200097 |
58408010050 |
US $7.94 |
||
|
40
|
40
58414040050
Rubber for fender rear
97 |
58414040050 |
— | ||
|
80
|
80
58412080000 Reflector Red Lc497 |
58412080000 |
US $5.46 |
||
| replacement | |||||
|
80
|
80
58412080200 Reflector Red ''cev'' Not Available97 |
58412080200 |
US $3.98 |
||
|
81
|
81
58412080050 Bracket for reflector97 |
58412080050 |
US $5.17 |
||
|
82
|
82
58412080100 Reflector yellow '9997 |
58412080100 |
US $8.45 |
||
|
83
|
83
16512180100 Side Reflector Red Rear97 |
16512180100 |
US $6.36 |
||
