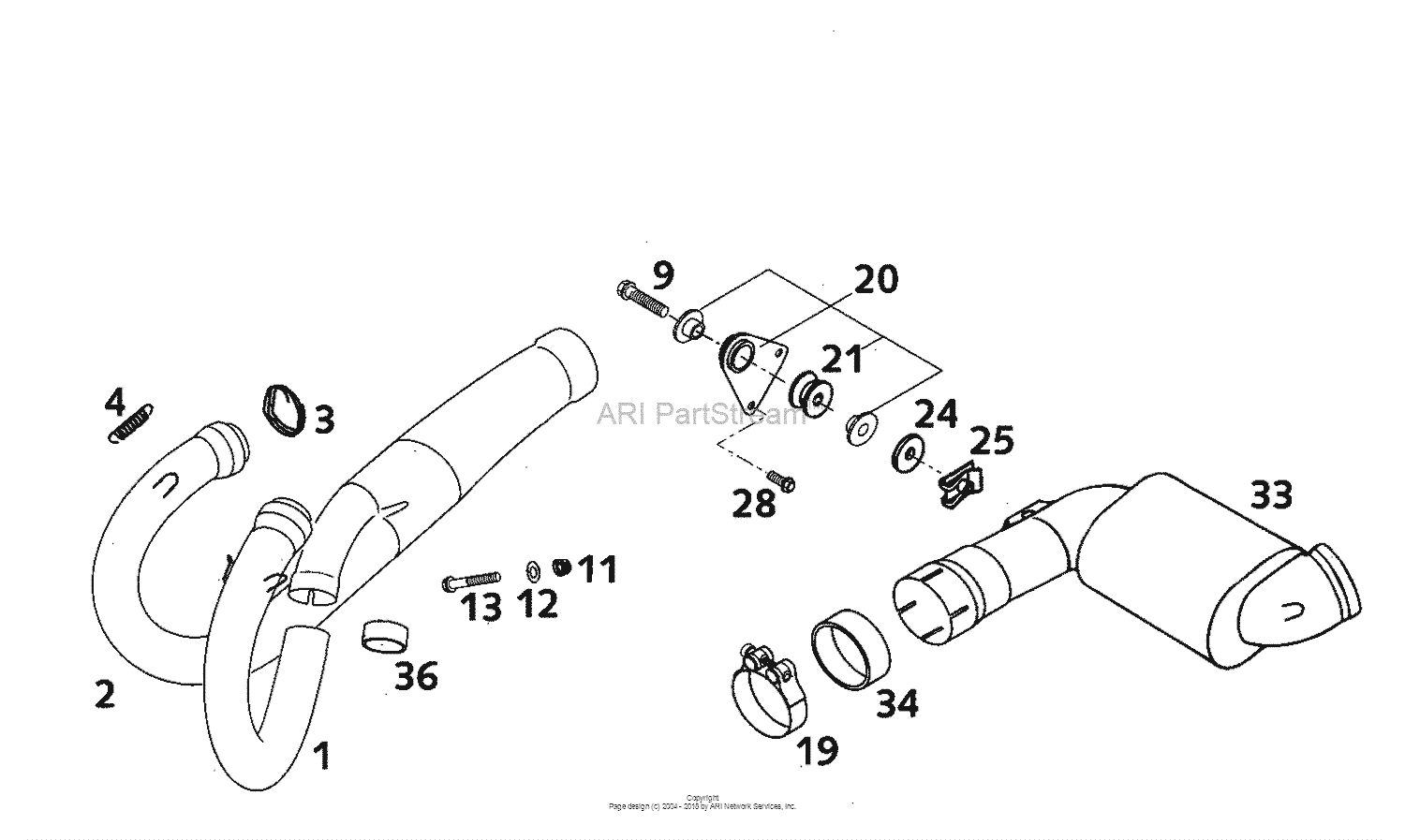

Pipes, Pre Silencer Diagram KTM 400 400 LC4-E
- Year
- 2001
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 LC4-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57705007100 Exhaust pipe l/s "ktm577" '9897 |
57705007100 |
US $116.84 |
||
|
2
|
2
57705008100 Exhaust pipe r/s "ktm577" '9897 |
57705008100 |
US $148.56 |
||
|
3
|
3
58305053001 Ceramic line 1 meter97 |
58305053001 |
US $5.68 |
||
|
4
|
4
54309036000 Return spring l=38 mm97 |
54309036000 |
US $4.23 |
||
|
9
|
9
0015080353 Hh Collar Screw M 8X35 Ws=1097 |
0015080353 |
US $7.12 |
||
|
11
|
11
51010086000 Self locking nut m 6 copper97 |
51010086000 |
US $1.63 |
||
|
12
|
12
0125060003 Washer Din0125-A 6,497 |
0125060003 |
US $0.37 |
||
|
13
|
13
0015060403
Hh Collar Screw M6X40 Tx30
97 |
0015060403 |
— | ||
| replacement | |||||
|
13
|
13
0025060406 Hh collar screw m6x40 tx3097 |
0025060406 |
US $2.23 |
||
|
19
|
19
58705058000 Pre silencer clamp d=53mm '9997 |
58705058000 |
US $32.47 |
||
|
20
|
20
5830506504490 Bracket-pre-sil.cpl silver '9997 |
5830506504490 |
US $46.48 |
||
|
21
|
21
54305068100 Damp. component silicone grey97 |
54305068100 |
US $14.26 |
||
|
24
|
24
51005067000 Insolate washer 8,5x28x397 |
51005067000 |
US $3.26 |
||
|
25
|
25
54603048000 Range Change Metal Nut M897 |
54603048000 |
US $3.35 |
||
|
28
|
28
0015060163 Hh Collar Screw M 6X16 Ws=897 |
0015060163 |
US $2.23 |
||
|
33
|
33
58405050300 Presilencer "ktm v2" 200097 |
58405050300 |
US $396.61 |
||
|
34
|
34
58405005001 Graphitring 45x50x2597 |
58405005001 |
US $33.83 |
||
|
36
|
36
57705005000 Graphit ring 28x32x2097 |
57705005000 |
US $11.87 |
||
