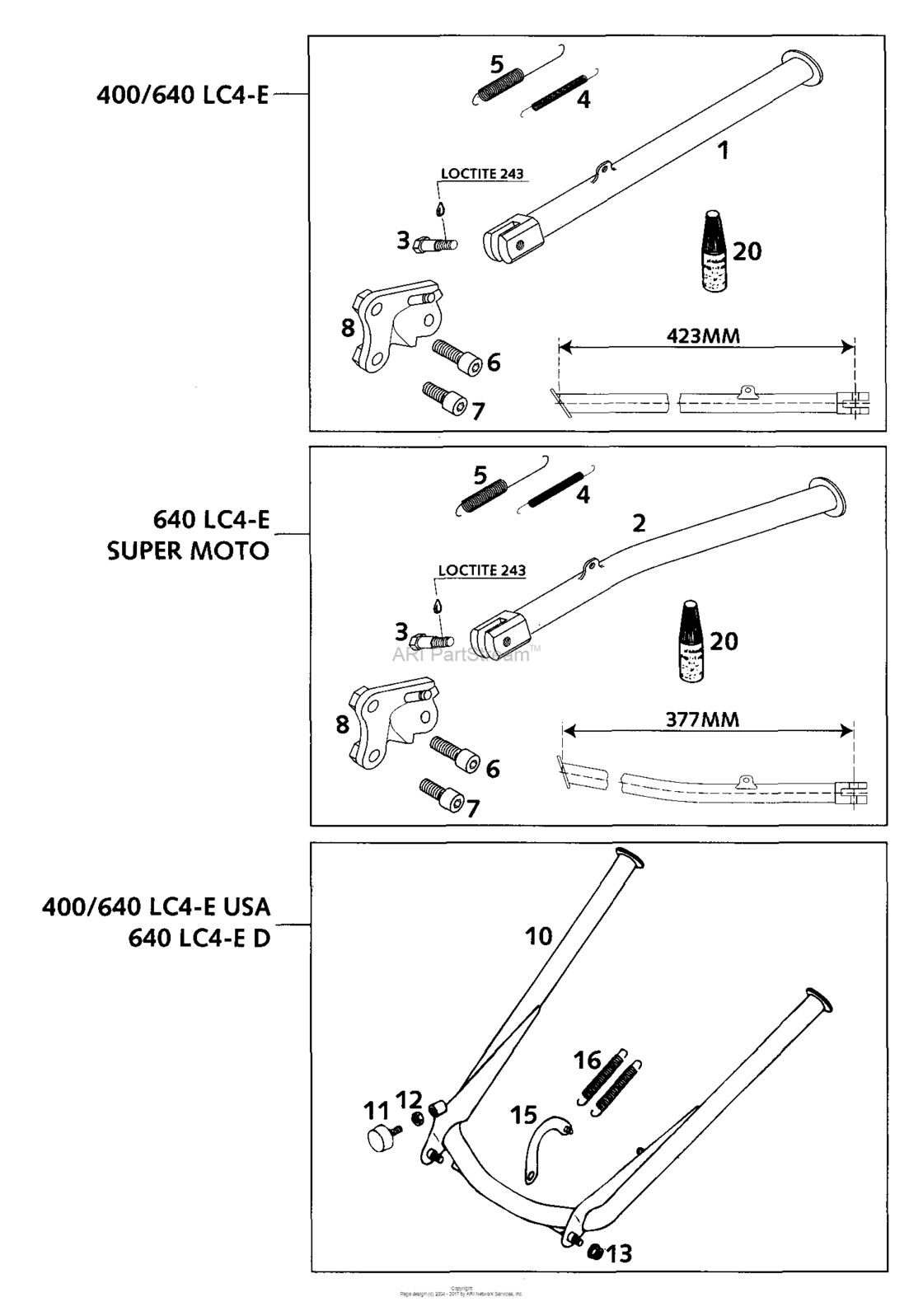

Side - And Center Stand Diagram KTM 400 400 LC4-E
- Year
- 2001
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 LC4-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5840302360090
Side stand silver m10 lc4 2000
97 |
5840302360090 |
— | ||
|
2
|
2
5840302370090 Sidestand silv. m10 s.mot.200097 |
5840302370090 |
US $61.06 |
||
|
3
|
3
58203027200 Screw for side stand m10x26,797 |
58203027200 |
US $21.73 |
||
|
4
|
4
58403030000 Side stand spring d=7,7mm '9797 |
58403030000 |
US $4.56 |
||
|
5
|
5
51003021000 Sidestand spring long97 |
51003021000 |
US $5.87 |
||
|
6
|
6
0912100303 Ah screw din0912-m10x3097 |
0912100303 |
US $2.01 |
||
|
7
|
7
0912100256 Ah screw din0912-m10x25 10.997 |
0912100256 |
US $2.53 |
||
|
8
|
8
58403026500
S.stand bracket m10 lc4/s.m'99
97 |
58403026500 |
— | ||
|
10
|
10
5750302200090
Center Stand 378Mm Silver 2000 (400/640 Lc4-E Usa,640 Lc4-E D)
97 |
5750302200090 |
— | ||
|
11
|
11
58303070000 Stop rubber m897 |
58303070000 |
US $7.23 |
||
|
12
|
12
0934080003 Hexagon Nut Din0934-M 897 |
0934080003 |
US $3.26 |
||
|
13
|
13
54310086200 Self Locking Nut M8 10.997 |
54310086200 |
US $1.56 |
||
|
15
|
15
58303027000 Springbow '9397 |
58303027000 |
US $30.48 |
||
|
16
|
16
10003021000 Stand spring short97 |
10003021000 |
US $6.17 |
||
|
20
|
20
6899785 Loctite 243 Blue 6Ccm97 |
6899785 |
US $40.61 |
