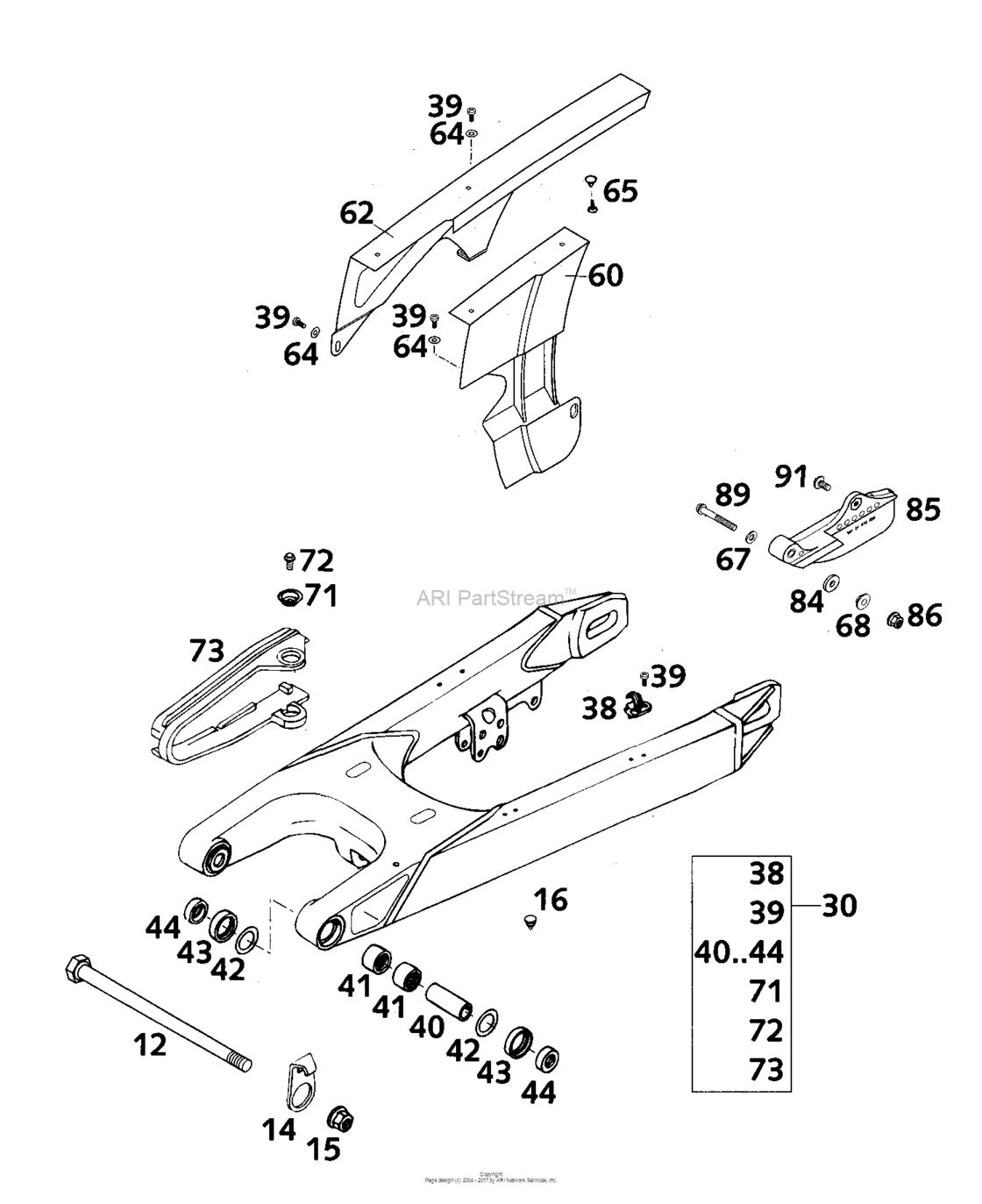

Swingarm, Chain Guard Diagram KTM 400 400 LC4-E
- Year
- 2001
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 LC4-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12
|
12
54603014000 Swingarm Bolt Kpl. L=253(400/640 LC4-E, SM) |
54603014000 |
US $91.09 |
||
| replacement | |||||
|
12
|
12
54603014100 Swingarm bolt kpl. l=253(400/640 LC4-E, SM) |
54603014100 |
US $38.78 |
||
|
14
|
14
50230211000
Brake hose guide '89
(400/640 LC4-E, SM) |
50230211000 |
— | ||
|
15
|
15
54603015000 Self locking nut m14x1,5 ws=19(400/640 LC4-E, SM) |
54603015000 |
US $4.85 |
||
|
16
|
16
54403135000 Plastic cap sfl10(400/640 LC4-E, SM) |
54403135000 |
US $1.31 |
||
|
30
|
30
58404030044
Swingarm Cpl. Lc4 03
(400/640 LC4-E, SM) |
58404030044 |
— | ||
| replacement | |||||
|
30
|
30
58404030344 Swingarm cpl. lc4 03(400/640 LC4-E, SM) |
58404030344 |
US $674.32 |
||
|
38
|
38
54611076100 Retain.clamp For Brake Hose'96(400/640 LC4-E, SM) |
54611076100 |
US $1.09 |
||
|
39
|
39
0010050103 Special Screw M 5,0X10(400/640 LC4-E, SM) |
0010050103 |
US $0.85 |
||
|
40
|
40
50203081700 Bushing sleeve 15x20x38,75(400/640 LC4-E, SM) |
50203081700 |
US $17.27 |
||
|
41
|
41
59004031000 Needle bush hk2012v(400/640 LC4-E, SM) |
59004031000 |
US $9.88 |
||
|
42
|
42
59004033000
Stop Disk 22,2X31,7X1
(400/640 LC4-E, SM) |
59004033000 |
— | ||
| replacement | |||||
|
42
|
42
54603036000 Stop Disk 22,2X31,7X1(400/640 LC4-E, SM) |
54603036000 |
US $1.55 |
||
|
43
|
43
0760253270 Shaft seal ring 25x32x7(400/640 LC4-E, SM) |
0760253270 |
US $6.51 |
||
|
44
|
44
54603090000 Bucket f.shaftsealring 15x25x9(400/640 LC4-E, SM) |
54603090000 |
US $11.63 |
||
|
60
|
60
58307060000 Chainguard small '96(400/640 LC4-E, SM) |
58307060000 |
US $23.10 |
||
|
62
|
62
58307060150 Chainguard Large(400/640 LC4-E, SM) |
58307060150 |
US $27.80 |
||
| replacement | |||||
|
62
|
62
58307060250 Chainguard large 03(400/640 LC4-E, SM) |
58307060250 |
US $7.75 |
||
|
64
|
64
0125050003 Washer Din0125-A 5,3(400/640 LC4-E, SM) |
0125050003 |
US $2.18 |
||
|
65
|
65
20012062055 Hollow rivet two parts(400/640 LC4-E, SM) |
20012062055 |
US $2.87 |
||
|
67
|
67
0125060003 Washer Din0125-A 6,4(400/640 LC4-E, SM) |
0125060003 |
US $0.37 |
||
|
68
|
68
58404060050 Washer chainguard 6,5x10x16x6(400/640 LC4-E, SM) |
58404060050 |
US $2.14 |
||
|
71
|
71
72210079000 Bucket(400/640 LC4-E, SM) |
72210079000 |
US $2.72 |
||
|
72
|
72
0015060103
Hh collar screw m 6x10 ws=8
(400/640 LC4-E, SM) |
0015060103 |
— | ||
| replacement | |||||
|
72
|
72
0025060106 Hh collar screw m6x10 tx30(400/640 LC4-E, SM) |
0025060106 |
US $1.58 |
||
|
73
|
73
58307073000 Chain sliding guard duke'94(400/640 LC4-E, SM) |
58307073000 |
US $29.34 |
||
|
84
|
84
50232050001 Steel washer 6,4x17x3(400/640 LC4-E, SM) |
50232050001 |
US $4.86 |
||
|
85
|
85
58404070000
Chain guide cpl. rear lc4 '98
(400/640 LC4-E, SM) |
58404070000 |
— | ||
|
86
|
86
56509064100 Self Locking Nut M6 10.9(400/640 LC4-E, SM) |
56509064100 |
US $1.04 |
||
|
89
|
89
0015060503
Hh collar screw m 6x50 ws=8
(400/640 LC4-E, SM) |
0015060503 |
— | ||
| replacement | |||||
|
89
|
89
0025060506 Hh collar screw m6x50 tx30(400/640 LC4-E, SM) |
0025060506 |
US $3.30 |
||
|
91
|
91
0014060103
Hh Collar Screw M6X10 Tx30
(400/640 LC4-E, SM) |
0014060103 |
— | ||
| replacement | |||||
|
91
|
91
0024060106 Hh collar screw m6x10 tx30(400/640 LC4-E, SM) |
0024060106 |
US $4.35 |
||
