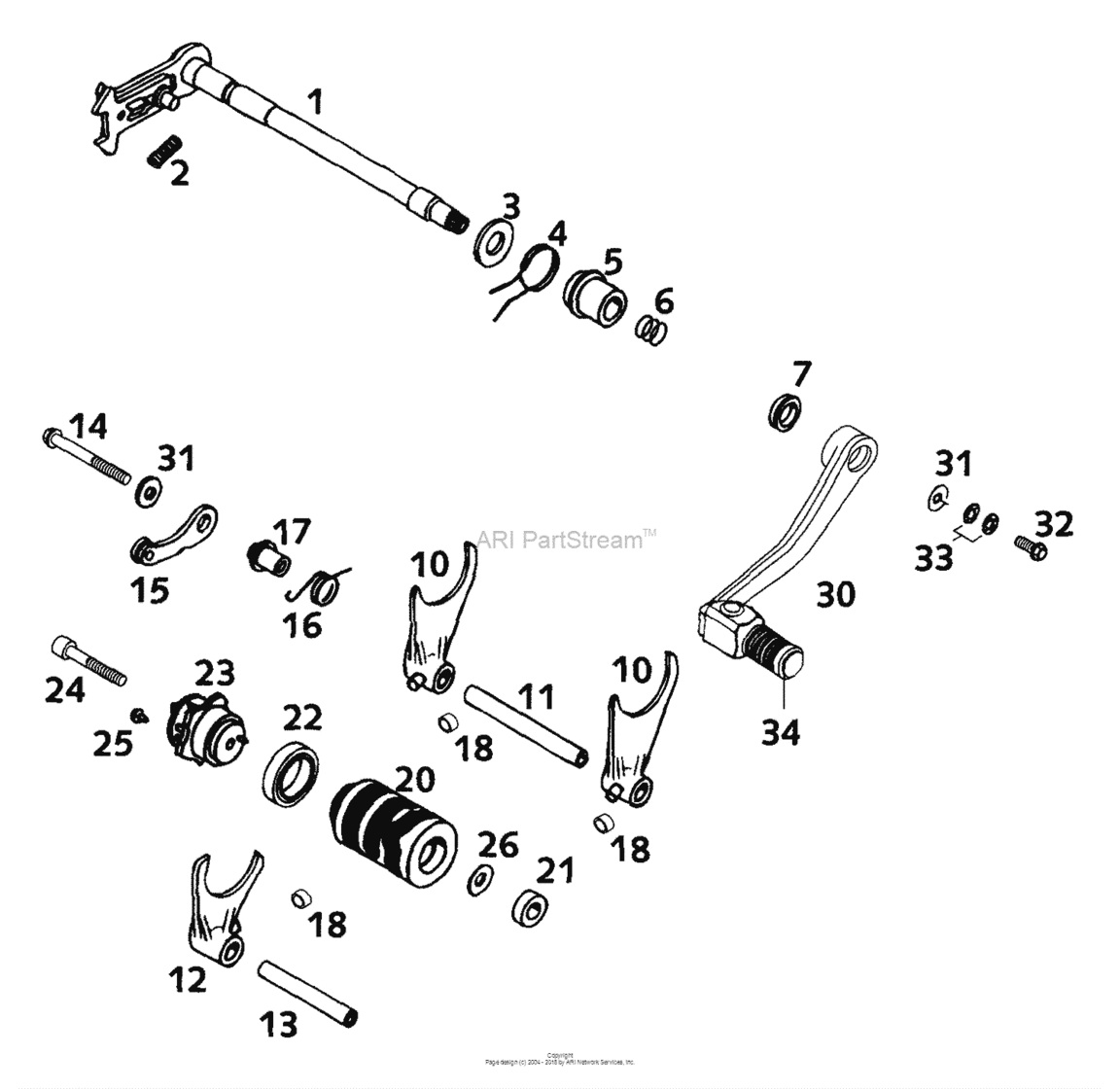

Shifting, Mechanism Diagram KTM 400 400 LC4-E
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 LC4-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58334005044 Shift shaft cpl. lc4'94(400/640 LC4-E, SM) |
58334005044 |
US $117.64 |
||
|
2
|
2
56534013100 Tensioning Spring 0,8Mm(400/640 LC4-E, SM) |
56534013100 |
US $2.94 |
||
|
3
|
3
58034010000 Steel washer 14 x 28 x 2(400/640 LC4-E, SM) |
58034010000 |
US $0.99 |
||
|
4
|
4
58034014000
Return spring
(400/640 LC4-E, SM) |
58034014000 |
— | ||
|
5
|
5
58334020000 Spring sleeve(400/640 LC4-E, SM) |
58334020000 |
US $11.78 |
||
|
6
|
6
0770125020 O-Ring 12,50X2,00 Nbr 70(400/640 LC4-E, SM) |
0770125020 |
US $1.24 |
||
|
7
|
7
58033027000 V-seal ring v-14-a(400/640 LC4-E, SM) |
58033027000 |
US $4.83 |
||
|
10
|
10
58034002300 Shift fork 1st/4th+2nd gear'98(400/640 LC4-E, SM) |
58034002300 |
US $118.68 |
||
|
11
|
11
58034004000 Shift rail 1st/4th + 2nd gear(400/640 LC4-E, SM) |
58034004000 |
US $11.31 |
||
|
12
|
12
58034001300
Shift fork 3rd/5th gear '98
(400/640 LC4-E, SM) |
58034001300 |
— | ||
|
13
|
13
58034003000 Shift rail 3rd/5th gear(400/640 LC4-E, SM) |
58034003000 |
US $8.06 |
||
|
14
|
14
0015060653 Hh collar screw m 6x65 ws=8(400/640 LC4-E, SM) |
0015060653 |
US $1.12 |
||
|
15
|
15
58334024044 Locking lever cpl. '94(400/640 LC4-E, SM) |
58334024044 |
US $32.23 |
||
|
16
|
16
58034023500 Spring(400/640 LC4-E, SM) |
58034023500 |
US $2.84 |
||
|
17
|
17
58334017000 Spring sleeve(400/640 LC4-E, SM) |
58334017000 |
US $9.69 |
||
|
18
|
18
50334018100 Shifting Roller 6X8X5,2(400/640 LC4-E, SM) |
50334018100 |
US $3.04 |
||
|
20
|
20
58334012000 Shift roller steel(400/640 LC4-E, SM) |
58334012000 |
US $152.17 |
||
|
21
|
21
0625006087 Grooved Ball Bear. 608 2Rs C3(400/640 LC4-E, SM) |
0625006087 |
US $19.19 |
||
|
22
|
22
0625618050 Ball bearing 61805 c3(400/640 LC4-E, SM) |
0625618050 |
US $39.98 |
||
|
23
|
23
58434015044 Shift locating drum cpl. '98(400/640 LC4-E, SM) |
58434015044 |
US $92.45 |
||
|
24
|
24
0912060404 Ah Screw Din0912-M 6X40 A2(400/640 LC4-E, SM) |
0912060404 |
US $1.38 |
||
|
25
|
25
58034016500 Shift button(400/640 LC4-E, SM) |
58034016500 |
US $4 |
||
|
26
|
26
51006097000 Washer 6,2x22x1,st30,w.galv.(400/640 LC4-E, SM) |
51006097000 |
US $1.62 |
||
|
30
|
30
58434031144 Shift lever cpl. lc4,comp. '98(400/640 LC4-E, SM) |
58434031144 |
US $76.67 |
||
|
31
|
31
50232050000 Washer 6,2x18x2(400/640 LC4-E, SM) |
50232050000 |
US $4.10 |
||
|
32
|
32
0015060163 Hh Collar Screw M 6X16 Ws=8(400/640 LC4-E, SM) |
0015060163 |
US $2.23 |
||
|
33
|
33
50233041000 Pair of washers m 6 nordlock(400/640 LC4-E, SM) |
50233041000 |
US $3.25 |
||
|
34
|
34
36205018000 Rubber(400/640 LC4-E, SM) |
36205018000 |
US $4.88 |
