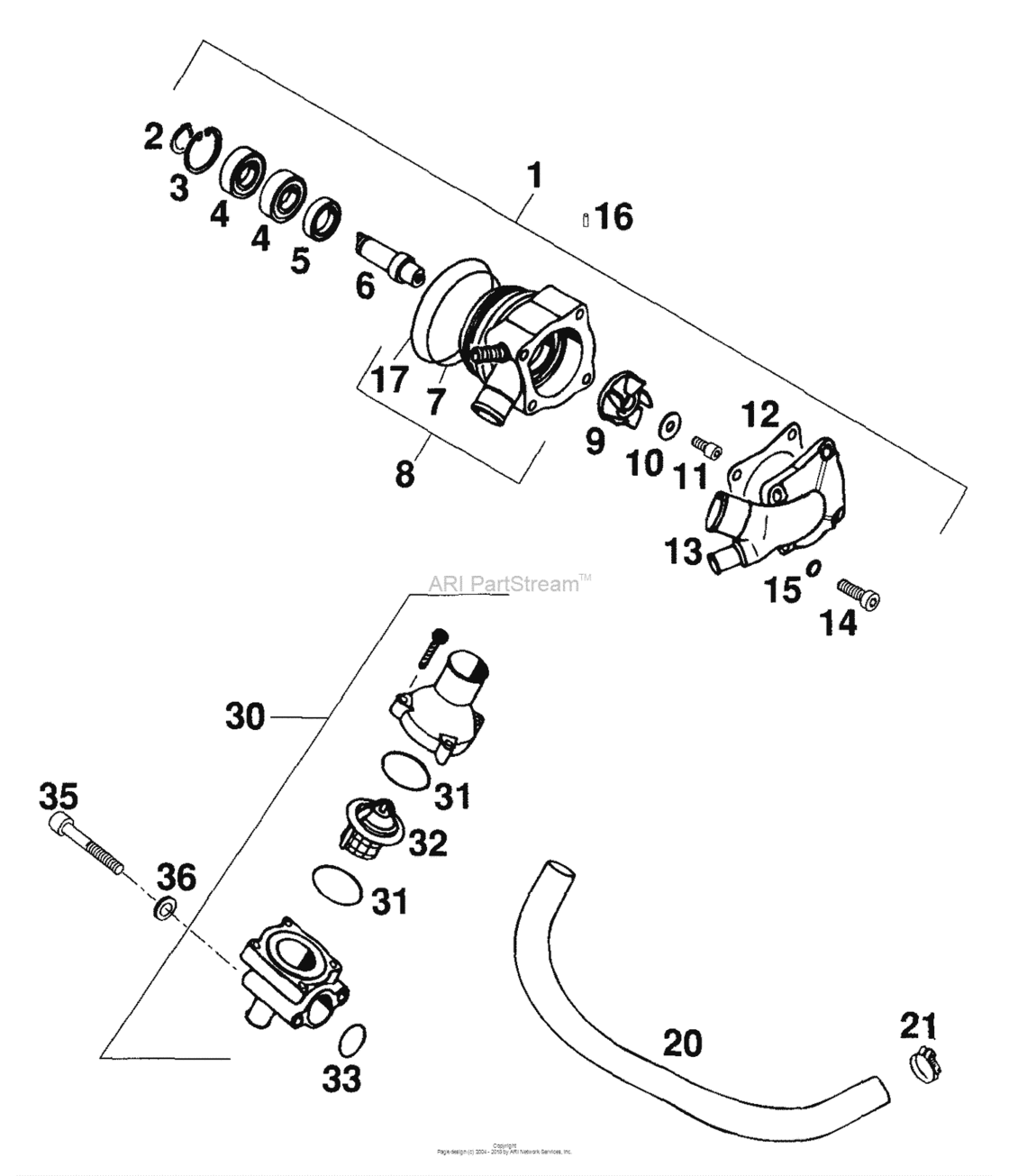

Water Pump Diagram KTM 400 400 LC4-E
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 LC4-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58335050044 Water pump mechanic cpl.'94(400/640 LC4-E, SM) |
58335050044 |
US $396.93 |
||
|
2
|
2
0471120010 Circlip din0471-12x1(400/640 LC4-E, SM) |
0471120010 |
US $1.12 |
||
|
3
|
3
0472280120 Circlip din0472-28x1,2(400/640 LC4-E, SM) |
0472280120 |
US $2.24 |
||
|
4
|
4
0625060016 Groov.ball bear. 6001.2rsr c3(400/640 LC4-E, SM) |
0625060016 |
US $23.89 |
||
|
5
|
5
0760152472 Shaft seal ring 15x24x7 a-duo(400/640 LC4-E, SM) |
0760152472 |
US $30.09 |
||
|
6
|
6
54435010000 Water pump shaft(400/640 LC4-E, SM) |
54435010000 |
US $87.87 |
||
|
7
|
7
0770047015 O-ring 47,00x1,50 nbr 70(400/640 LC4-E, SM) |
0770047015 |
US $1.12 |
||
|
8
|
8
58035002644 Water pump case cpl. 4t '00(400/640 LC4-E, SM) |
58035002644 |
US $125.99 |
||
|
9
|
9
56535005300 Water pump wheel(400/640 LC4-E, SM) |
56535005300 |
US $8.81 |
||
|
10
|
10
0021050003 Washer din9021-a 5,3(400/640 LC4-E, SM) |
0021050003 |
US $1.29 |
||
|
11
|
11
0912050123 Ah screw din0912-m 5x12(400/640 LC4-E, SM) |
0912050123 |
US $0.85 |
||
|
12
|
12
56535003300 Water pump cover gasket(400/640 LC4-E, SM) |
56535003300 |
US $2.24 |
||
|
13
|
13
58335001244
Water pump cover lc4 '99
(400/640 LC4-E, SM) |
58335001244 |
— | ||
|
14
|
14
0984060203 Ah screw din6912-m 6x20 8.8(400/640 LC4-E, SM) |
0984060203 |
US $1.55 |
||
|
15
|
15
0603061001 Cu-Seal Ring Din7603-6X10X1(400/640 LC4-E, SM) |
0603061001 |
US $2.64 |
||
|
16
|
16
0402025580 Needleroll.din5402 nrb 2,5x5,8(400/640 LC4-E, SM) |
0402025580 |
US $0.94 |
||
|
17
|
17
0770049025 O-ring 49,00x2,50 nbr(400/640 LC4-E, SM) |
0770049025 |
US $2.98 |
||
|
20
|
20
58335025001 Radiator Hose(Reenforced)12X(400/640 LC4-E, SM) |
58335025001 |
US $19.74 |
||
|
21
|
21
58335099000 Hose clamp gemi 10-16(400/640 LC4-E, SM) |
58335099000 |
US $2.77 |
||
|
30
|
30
58335013044 Thermostat cpl. 70 dg lc4'94(400/640 LC4-E, SM) |
58335013044 |
US $111.86 |
||
|
31
|
31
0770320020 O-ring 32,00x2,00(400/640 LC4-E, SM) |
0770320020 |
US $2.09 |
||
|
32
|
32
58335017000
Thermostat 70 degrees '94
(400/640 LC4-E, SM) |
58335017000 |
— | ||
|
33
|
33
0770021020 O-ring 21,00x2,00 nbr70(400/640 LC4-E, SM) |
0770021020 |
US $2.35 |
||
|
35
|
35
0912060453
Ah screw din0912-m 6x45
(400/640 LC4-E, SM) |
0912060453 |
— | ||
|
36
|
36
0125060003 Washer Din0125-A 6,4(400/640 LC4-E, SM) |
0125060003 |
US $0.37 |
