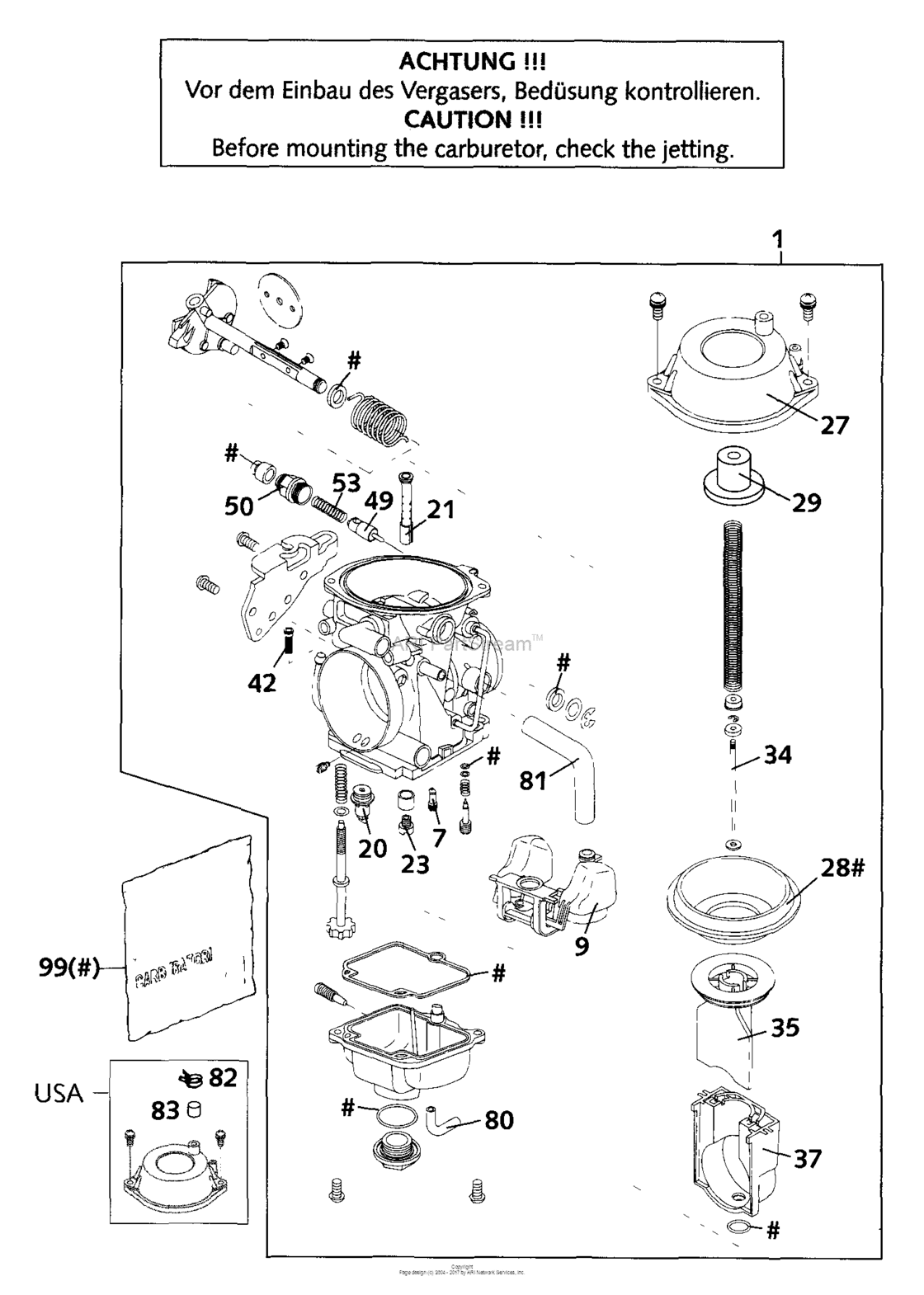

Carburetor Bst 40 Diagram KTM 400 400 LC4-E
- Year
- 2001
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 LC4-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58431001400
Carburetor mikuni bst40-225'98
(400/640 LC4-E, SM) |
58431001400 |
— | ||
|
7
|
7
58431007045 Idling jet 45(400/640 LC4-E, SM) |
58431007045 |
US $13.18 |
||
|
9
|
9
58431009000 Float 6,1 gramm mikuni(400/640 LC4-E, SM) |
58431009000 |
US $40.75 |
||
|
20
|
20
58431020000 Needle valve 2,8mm(400/640 LC4-E, SM) |
58431020000 |
US $55.13 |
||
|
21
|
21
58431021689 Needle jet 689 x-6(400/640 LC4-E, SM) |
58431021689 |
US $21.88 |
||
|
23
|
23
58431023140 Main jet 140(400/640 LC4-E, SM) |
58431023140 |
US $7.19 |
||
|
23
|
23
58431023142 Main jet 142,5(400/640 LC4-E, SM) |
58431023142 |
US $6.04 |
||
|
23
|
23
58431023145 Main jet 145(400/640 LC4-E, SM) |
58431023145 |
US $7.72 |
||
|
23
|
23
58431023147 Main jet 147,5(400/640 LC4-E, SM) |
58431023147 |
US $7.12 |
||
|
23
|
23
58431023150
Main jet 150
(400/640 LC4-E, SM) |
58431023150 |
— | ||
|
23
|
23
58431023152 Main jet 152,5(400/640 LC4-E, SM) |
58431023152 |
US $7.11 |
||
|
23
|
23
58431023155 Main jet 155(400/640 LC4-E, SM) |
58431023155 |
US $7.24 |
||
|
23
|
23
58431023157 Main jet 157,5(400/640 LC4-E, SM) |
58431023157 |
US $7.11 |
||
|
23
|
23
58431023160 Main jet 160(400/640 LC4-E, SM) |
58431023160 |
US $7.11 |
||
|
27
|
27
58431027000 Diaphragm cover mikuni(400/640 LC4-E, SM) |
58431027000 |
US $49.61 |
||
|
28
|
28
58431028000 Diaphragm for throttle valve(400/640 LC4-E, SM) |
58431028000 |
US $39.76 |
||
|
29
|
29
58331029017 Slide stop l=17mm mikuni(400/640 LC4-E, SM) |
58331029017 |
US $7.29 |
||
|
34
|
34
584310346G5 Jet needle 6g5(400/640 LC4-E, SM) |
584310346G5 |
US $11.51 |
||
|
35
|
35
58431035000 Throttle valve "1"(400/640 LC4-E, SM) |
58431035000 |
US $48.54 |
||
|
37
|
37
58431037000 Throttle valve guide plastic(400/640 LC4-E, SM) |
58431037000 |
US $37.84 |
||
|
42
|
42
58431042000 Fuel screen mikuni(400/640 LC4-E, SM) |
58431042000 |
US $7.99 |
||
|
49
|
49
58431049000 Starting piston mikuni(400/640 LC4-E, SM) |
58431049000 |
US $10.37 |
||
|
50
|
50
58431050000 Screw m12 startsystemn(400/640 LC4-E, SM) |
58431050000 |
US $7.70 |
||
|
53
|
53
58431053000 Spring 22,5mm for start.piston(400/640 LC4-E, SM) |
58431053000 |
US $5.61 |
||
|
80
|
80
52031137001 Pvc-hose 3x5mm(400/640 LC4-E, SM) |
52031137001 |
US $6 |
||
|
81
|
81
54435024001 Hose Id 7,5 Per Meter(400/640 LC4-E, SM) |
54435024001 |
US $27.40 |
||
|
82
|
82
58031005000 Clamp Ydnac 10128 12Mm(400/640 LC4-E, SM) |
58031005000 |
US $2.99 |
||
|
83
|
83
57931001010 Plug cap for epc connection(400/640 LC4-E, SM) |
57931001010 |
US $1.17 |
||
|
99
|
99
58431099000 Gasket set mikuni bst40-225(400/640 LC4-E, SM) |
58431099000 |
US $63.31 |
