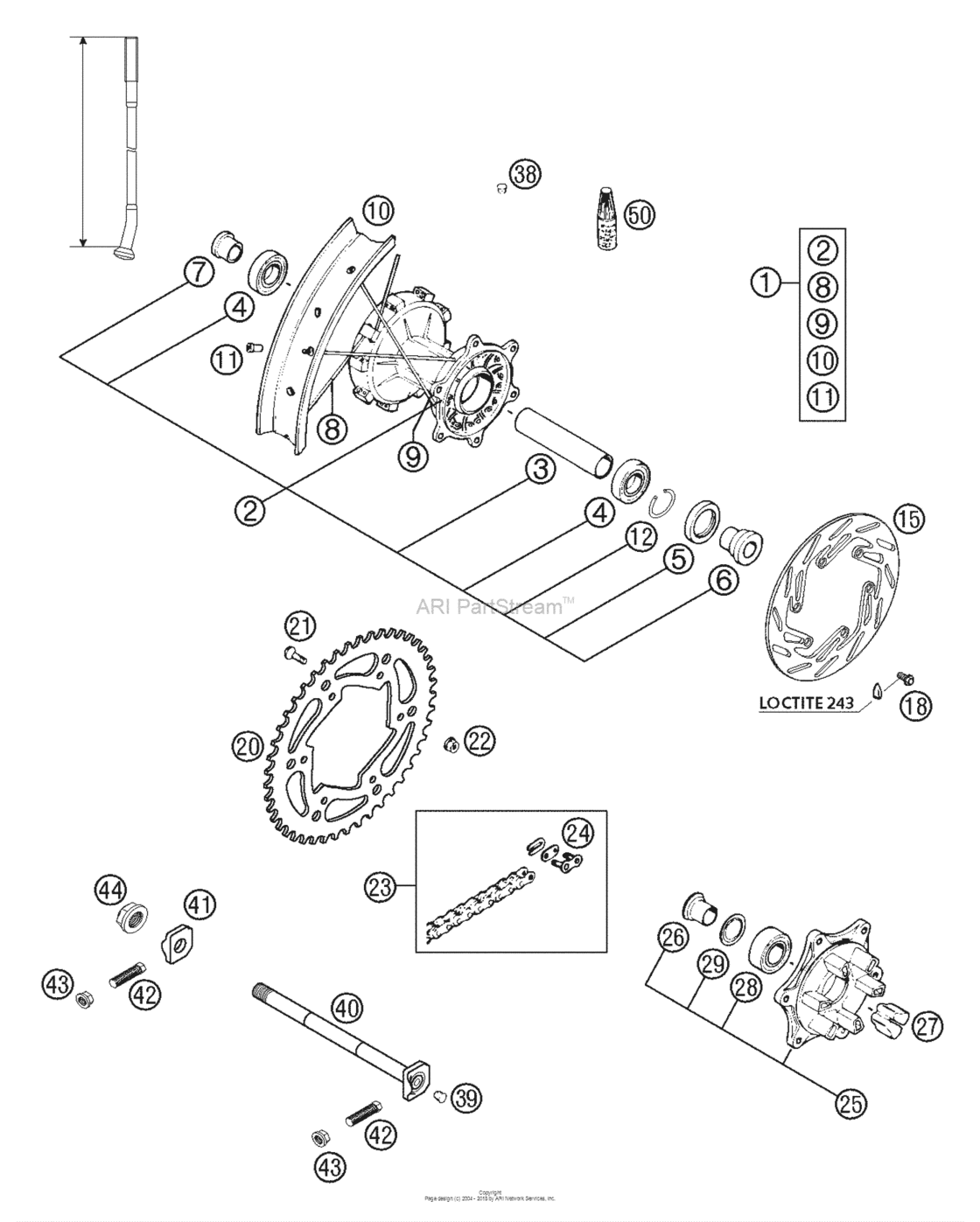

Rear Wheel Diagram KTM 400 400 LS-E/Mil
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 LS-E/Mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5841000124430
Rear Wheel Cpl. Damped 2,5X18In
2 |
5841000124430 |
— | ||
|
2
|
2
5841001004430
Rear W.hub Cpl. Damp. Black 01
2 |
5841001004430 |
— | ||
|
3
|
3
58410011000 Bushing Spacer Tube L=98,3Mm2 |
58410011000 |
US $15.67 |
||
|
4
|
4
0625062052 Gr.ball bear. 6205-2rshc3hmtf72 |
0625062052 |
US $30.99 |
||
|
5
|
5
0760325272 Shaft seal ring 32x52x7 b2 |
0760325272 |
US $16.49 |
||
|
6
|
6
58410016000 Bushing for hub2 |
58410016000 |
US $14.04 |
||
|
7
|
7
54610416300 Bushing For Rear Damped Hub2 |
54610416300 |
US $18.79 |
||
|
8
|
8
5461047100030
Spoke M5X223-10G 18In. Black
2 |
5461047100030 |
— | ||
|
9
|
9
5651017160030
Spoke M5X198-10G 18In. Black
2 |
5651017160030 |
— | ||
|
10
|
10
5801047010030
Rear Rim 2,50X18In. Did Black
2 |
5801047010030 |
— | ||
|
11
|
11
5650907200030
Steel Nipple M5 Black
2 |
5650907200030 |
— | ||
|
12
|
12
0472052200 Circlip din0472-52x22 |
0472052200 |
US $2.06 |
||
|
15
|
15
58010060600 Rear Brake Disk 220Mm Counters2 |
58010060600 |
US $192.27 |
||
|
18
|
18
59009062013 Special Screw M6X13 Ws=8 10.92 |
59009062013 |
US $2.24 |
||
|
20
|
20
5831015105030 Rear Sprocket 50-Z Black2 |
5831015105030 |
US $87.19 |
||
|
21
|
21
54510052100
Counter-Sunk Screw Isa45 M8X26
2 |
54510052100 |
— | ||
| replacement | |||||
|
21
|
21
0019080266S Counter-sunk screw isa45 m8x262 |
0019080266S |
US $2.23 |
||
|
22
|
22
54310086200 Self Locking Nut M8 10.92 |
54310086200 |
US $1.56 |
||
|
23
|
23
50310265114
Superseded By 50310800118
2 |
50310265114 |
— | ||
|
24
|
24
50310266000
Connecting link
2 |
50310266000 |
— | ||
|
25
|
25
5791005004430
Sprocket Support Cpl. Mil. 04
2 |
5791005004430 |
— | ||
|
26
|
26
54610417300 Bush. F.sprocketsupport L=25Mm2 |
54610417300 |
US $15.27 |
||
|
27
|
27
54610459000 Rubber Damping Block '912 |
54610459000 |
US $7.11 |
||
|
28
|
28
0625032057 Gr. ball bearing 3205b-2rsrtng2 |
0625032057 |
US $93.72 |
||
|
29
|
29
54610018000 Seal Washer 3205 Av2 |
54610018000 |
US $9.25 |
||
|
38
|
38
55003135000 Plug For Rim2 |
55003135000 |
US $1.02 |
||
|
39
|
39
50210086000 Covering cap sfl162 |
50210086000 |
US $3.54 |
||
|
40
|
40
50310085044
Wheel Spindle Re. Cpl.265Mm 07
2 |
50310085044 |
— | ||
| replacement | |||||
|
40
|
40
77310085044 Wheel Spindle Re. Cpl.265Mm 072 |
77310085044 |
US $65.35 |
||
|
41
|
41
50310084000 Chain tensioner r/s 20002 |
50310084000 |
US $18.45 |
||
|
42
|
42
50304040000
Screw M10X1,25X50 Ws=10
2 |
50304040000 |
— | ||
| replacement | |||||
|
42
|
42
50304040100 Screw M10X1,25X50 Ws=102 |
50304040100 |
US $6.61 |
||
|
43
|
43
58414030000 Hh collar nut m10x1,25 ws=132 |
58414030000 |
US $2.60 |
||
|
44
|
44
50310099000 Hexagon Nut M20X1,5 '982 |
50310099000 |
US $19.04 |
||
|
50
|
50
6899785 Loctite 243 Blue 6Ccm2 |
6899785 |
US $40.61 |
||
