	Description	OEM Part #	Price
12	12 54603014100 Swingarm bolt kpl. l=253 2	54603014100	US $38.78
14	14 50230211000 Brake hose guide '89 2	50230211000	—
15	15 54603015000 Self locking nut m14x1,5 ws=19 2	54603015000	US $4.85
16	16 54403135000 Plastic cap sfl10 2	54403135000	US $1.31
30	30 5840403034430 Swingarm Cpl. 04 2	5840403034430	—
38	38 54611076100 Retain.clamp For Brake Hose'96 2	54611076100	US $1.09
39	39 0010050103 Special Screw M 5,0X10 2	0010050103	US $0.85
40	40 50203081700 Bushing sleeve 15x20x38,75 2	50203081700	US $17.27
41	41 59004031000 Needle bush hk2012v 2	59004031000	US $9.88
42	42 59004033100 Washer 20x32x0,8 2	59004033100	US $1.04
43	43 0760253270 Shaft seal ring 25x32x7 2	0760253270	US $6.51
44	44 54603090000 Bucket f.shaftsealring 15x25x9 2	54603090000	US $11.63
60	60 58307060000 Chainguard small '96 2	58307060000	US $23.10
62	62 58307060250 Chainguard large 03 2	58307060250	US $7.75
64	64 0021050003 Washer din9021-a 5,3 2	0021050003	US $1.29
65	65 20012062055 Hollow rivet two parts 2	20012062055	US $2.87
67	67 50232050003 Steel washer 6,2x18x2 dacromet 2	50232050003	US $0.87
68	68 58404060150 Collared bush 6,2x10x20x6 03 2	58404060150	US $2.67
71	71 72210079000 Bucket 2	72210079000	US $2.72
72	72 0015060103 Hh collar screw m 6x10 ws=8 2	0015060103	—
	replacement
72	72 0025060106 Hh collar screw m6x10 tx30 2	0025060106	US $1.58
73	73 58307073000 Chain sliding guard duke'94 2	58307073000	US $29.34
85	85 58404070000 Chain guide cpl. rear lc4 '98 2	58404070000	—
86	86 56509064100 Self Locking Nut M6 10.9 2	56509064100	US $1.04
89	89 0015060553 Hh collar screw m 6x55 ws=8 2	0015060553	US $2.09
91	91 0015060163 Hh Collar Screw M 6X16 Ws=8 2	0015060163	US $2.23

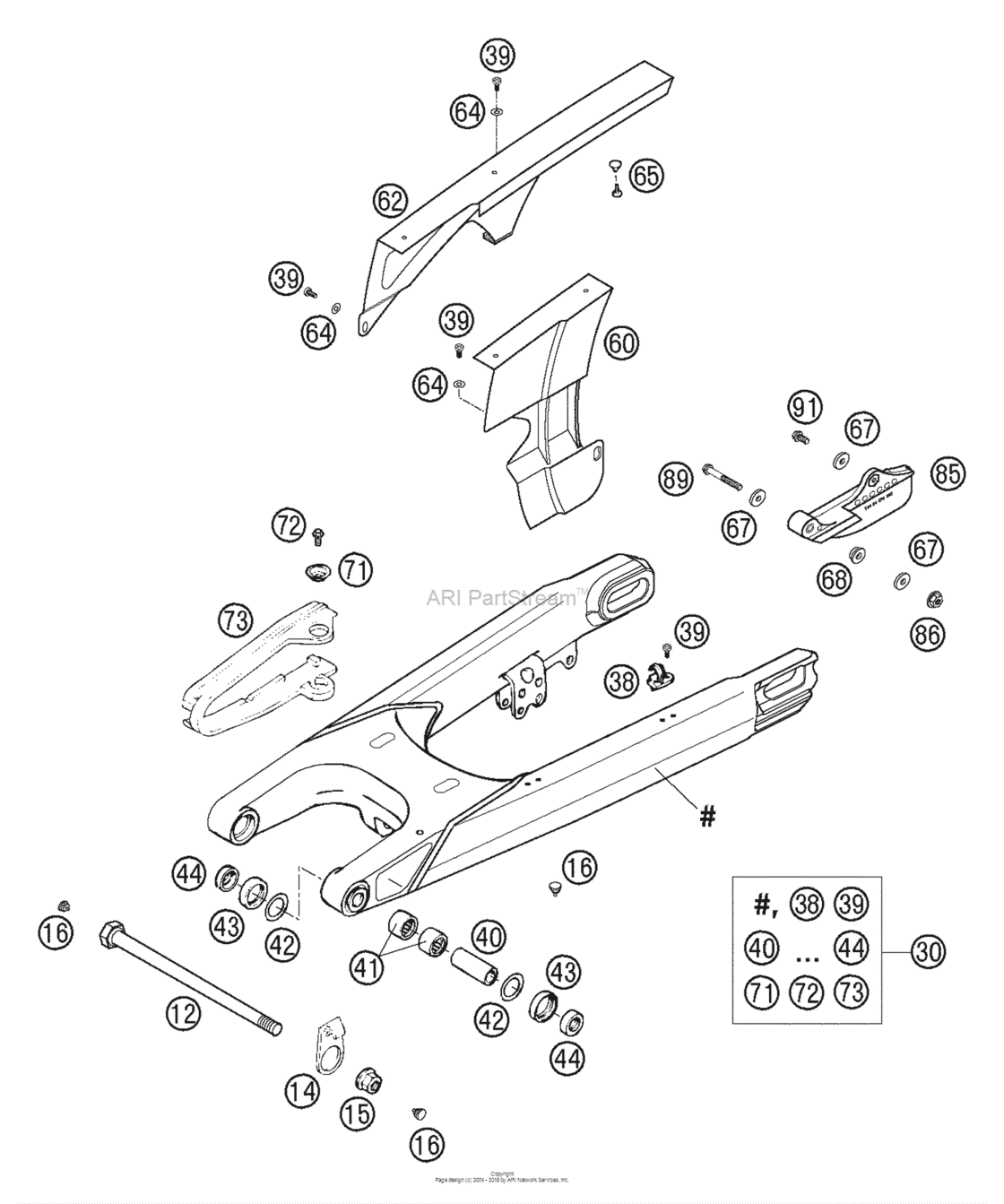

Swingarm, Chain Guard Diagram KTM 400 400 LS-E/Mil US/EU 18092097-939979

Swingarm, Chain Guard Diagram KTM 400 400 LS-E/Mil US/EU 18092097-939979
