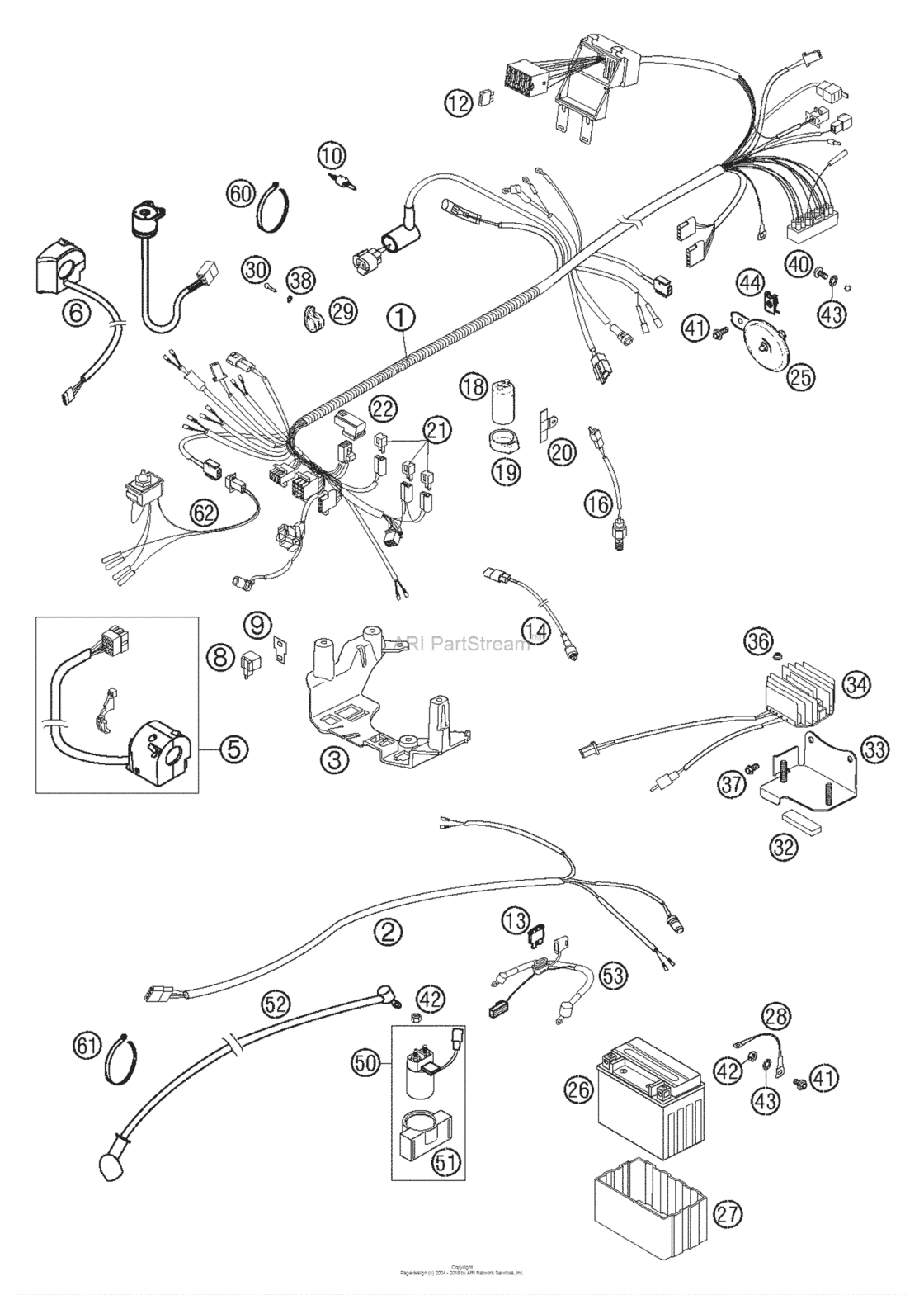

Wiring Harness Diagram KTM 400 400 LS-E/Mil
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 LS-E/Mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57911175200
Wiring Harness Lc4 Mil 04
2 |
57911175200 |
— | ||
|
2
|
2
58411176300 Wiring harness rear 032 |
58411176300 |
US $14.43 |
||
|
3
|
3
58411083100 Bracket for plugs lc4 '982 |
58411083100 |
US $7.34 |
||
|
5
|
5
58411070100 Head light switch ad lc4 022 |
58411070100 |
US $104.01 |
||
|
6
|
6
58411074100 Start-stop switch ad lc4 022 |
58411074100 |
US $68.12 |
||
|
8
|
8
44611207200 Flasher unit 972 |
44611207200 |
US $54.93 |
||
|
9
|
9
58211031100 Bracket for flasher relay2 |
58211031100 |
US $5.61 |
||
|
10
|
10
51011050000 Break Light Switch2 |
51011050000 |
US $20.76 |
||
| replacement | |||||
|
10
|
10
51011050100 BREAK LIGHT SWITCH2 |
51011050100 |
US $17.22 |
||
|
12
|
12
58011109110 Fuse 10 A 20002 |
58011109110 |
US $0.71 |
||
|
13
|
13
58011109120 Fuse 20 A2 |
58011109120 |
US $0.73 |
||
|
14
|
14
58411049100 Clutch switch 032 |
58411049100 |
US $54.57 |
||
|
16
|
16
50311051100 Brake Light Switch Rear '982 |
50311051100 |
US $73.85 |
||
|
18
|
18
49111435100 Condensator 25V, 10.000 Mf2 |
49111435100 |
US $59.25 |
||
|
19
|
19
54511048000 Capacitor bracket2 |
54511048000 |
US $5.24 |
||
|
20
|
20
54611448000
Bracket for capacitor
2 |
54611448000 |
— | ||
|
21
|
21
58411096100 Diode s3h-15 972 |
58411096100 |
US $9.81 |
||
|
22
|
22
58411057000
Starter relay '96
2 |
58411057000 |
— | ||
|
25
|
25
50311060100 Dc horn l.e.b. 032 |
50311060100 |
US $28.10 |
||
|
26
|
26
60011053000 Battery 12v/11ah 032 |
60011053000 |
US $376.30 |
||
|
27
|
27
58411053050 Battery cover 962 |
58411053050 |
US $25.62 |
||
|
28
|
28
58411097100 Ground cable d=6mm l=140mm '972 |
58411097100 |
US $7.67 |
||
|
29
|
29
49007439000 Clamp rsgu 15/122 |
49007439000 |
US $4.96 |
||
|
30
|
30
0981480133
Sheet met.scr.din7981- 4,8x13
2 |
0981480133 |
— | ||
|
32
|
32
58414040051
Metamoll for rearlight 99
2 |
58414040051 |
— | ||
|
33
|
33
57911055100
Battery Bracket Mil. 04
2 |
57911055100 |
— | ||
|
34
|
34
58411034100 Volt.regulator-Rectifier 12V2 |
58411034100 |
US $222.24 |
||
|
36
|
36
56509064100 Self Locking Nut M6 10.92 |
56509064100 |
US $1.04 |
||
|
37
|
37
0015060103
Hh collar screw m 6x10 ws=8
2 |
0015060103 |
— | ||
| replacement | |||||
|
37
|
37
0025060106 Hh collar screw m6x10 tx302 |
0025060106 |
US $1.58 |
||
|
38
|
38
0797050003 Tooth lock wash. din6797-j 5,32 |
0797050003 |
US $0.27 |
||
|
40
|
40
0014060103
Hh Collar Screw M6X10 Tx30
2 |
0014060103 |
— | ||
| replacement | |||||
|
40
|
40
0024060106 Hh collar screw m6x10 tx302 |
0024060106 |
US $4.35 |
||
|
41
|
41
0014060153
Hh Collar Screw M6X15 Tx30
2 |
0014060153 |
— | ||
| replacement | |||||
|
41
|
41
0024060156 Hh collar screw m6x15 tx302 |
0024060156 |
US $3.96 |
||
|
42
|
42
0985060003 Self Lock. Nut Din0985-M 62 |
0985060003 |
US $2.60 |
||
|
43
|
43
58411098100 Contact washer m6 vsv-k62 |
58411098100 |
US $0.54 |
||
|
44
|
44
54603048100 Range Change Metal Nut M62 |
54603048100 |
US $5.27 |
||
|
50
|
50
58411058000 Starter Relay With Hold.rubber2 |
58411058000 |
US $81.79 |
||
|
51
|
51
58411058050 Hold. rubber for startrelay2 |
58411058050 |
US $16.83 |
||
|
52
|
52
58411059100 Startercable 700 mm '972 |
58411059100 |
US $20.25 |
||
|
53
|
53
57911059000
Battery Cable Mil.battery-Startrelais 04
2 |
57911059000 |
— | ||
|
60
|
60
44011076305 Cable tie 300/4,8mm black2 |
44011076305 |
US $0.36 |
||
|
60
|
60
44011076200 Cable tie 200/3,6mm black2 |
44011076200 |
US $0.39 |
||
|
61
|
61
44011076100 Cable tie 100/2,5mm black2 |
44011076100 |
US $0.39 |
||
| replacement | |||||
|
61
|
61
44011076140 Cable tie 140/2,5mm black2 |
44011076140 |
US $0.29 |
||
|
62
|
62
57911045000
Wiring Harness F. Handle Heat
2 |
57911045000 |
— | ||
