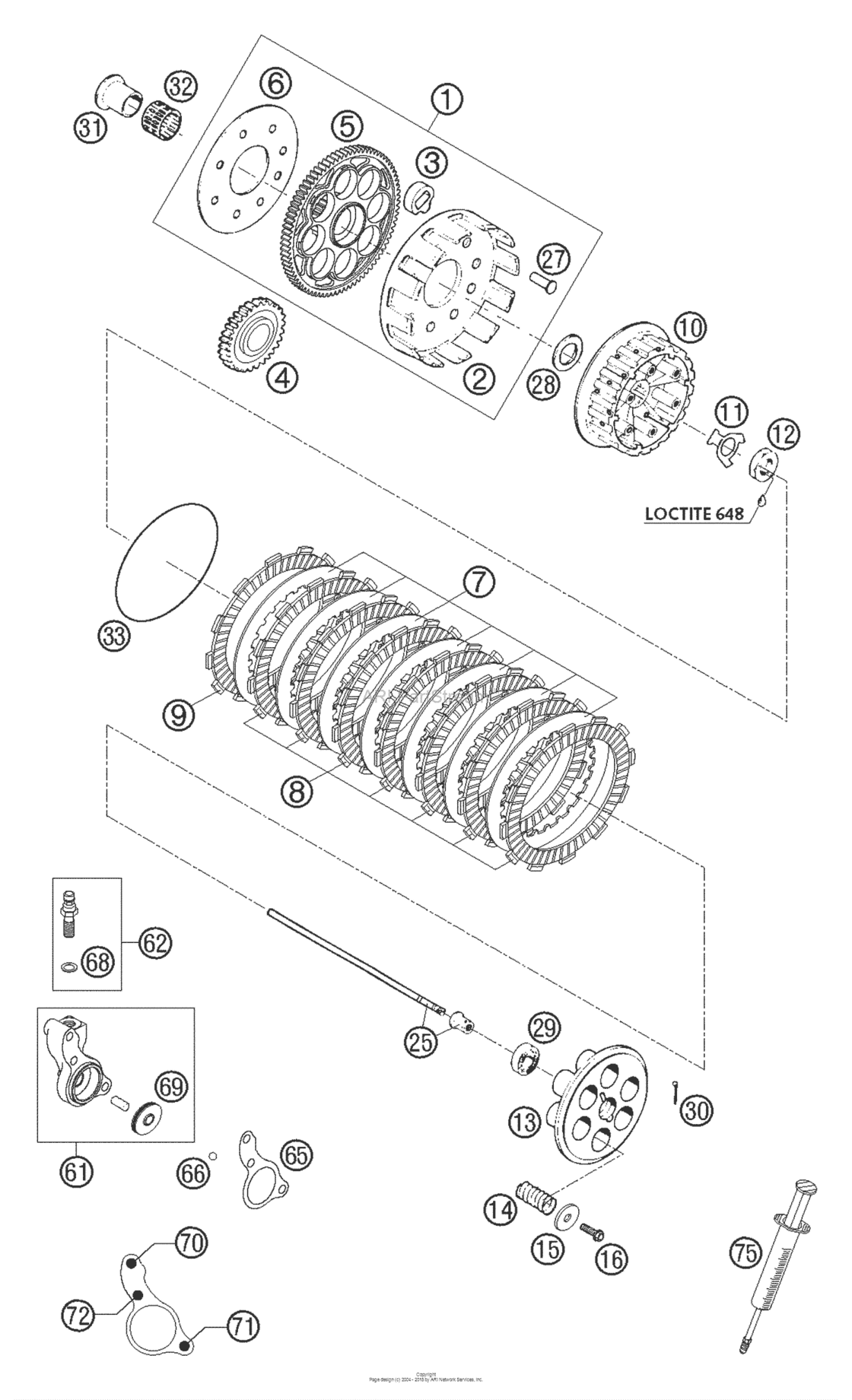

Clutch Diagram KTM 400 400 LS-E/Mil
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 LS-E/Mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57932001044 Out clutch hub & wh. 81zmil 032 |
57932001044 |
US $391.22 |
||
|
2
|
2
58432001000 Outer clutch hub loose lc4 032 |
58432001000 |
US $130.93 |
||
|
3
|
3
58332026000 Damping element '942 |
58332026000 |
US $12.14 |
||
|
4
|
4
58032000030
Primary gear 30t
2 |
58032000030 |
— | ||
|
5
|
5
58332000081
Clutch Wheel 81-T Agw '94
2 |
58332000081 |
— | ||
|
6
|
6
58332028000 Bracket 57 x 132 x 1,5 '942 |
58332028000 |
US $7.48 |
||
|
7
|
7
58332112000 Steel disk 1,5 mm lc4'942 |
58332112000 |
US $12.12 |
||
|
8
|
8
58332011300 Lining disk 2,7mm fcc 022 |
58332011300 |
US $26.47 |
||
|
9
|
9
58332111300 Lining disk turn out fcc 022 |
58332111300 |
US $31.03 |
||
|
10
|
10
58332002300 Inner clutch hub lc4/lc4-e 042 |
58332002300 |
US $105.45 |
||
|
11
|
11
58332018000
Lock washer '94
2 |
58332018000 |
— | ||
|
12
|
12
0936181505 Hexagon Nut Din0936-M18X1,5 R2 |
0936181505 |
US $7.60 |
||
|
13
|
13
58332003300 Pressure cap lc4/lc4-e 042 |
58332003300 |
US $49.91 |
||
|
14
|
14
58332080000 Clutch spring 2,8 x 372 |
58332080000 |
US $7.38 |
||
|
15
|
15
58132081000 Spring retainer 6,2 x 20 x 3,22 |
58132081000 |
US $1.79 |
||
|
16
|
16
0015060203
Hh Collar Screw M 6X20 Ws=8
2 |
0015060203 |
— | ||
| replacement | |||||
|
16
|
16
0025060206 Hh collar screw m6x20 tx302 |
0025060206 |
US $1.97 |
||
|
25
|
25
57332017044 Push rod l=215mm cpl. 032 |
57332017044 |
US $46.48 |
||
|
27
|
27
58332007000 Rivet 6 x 23 x 11,22 |
58332007000 |
US $3.03 |
||
|
28
|
28
57532013000 Supportwasher 22,2x35x3 harde.2 |
57532013000 |
US $22.51 |
||
|
29
|
29
0625060016 Groov.ball bear. 6001.2rsr c32 |
0625060016 |
US $23.89 |
||
|
30
|
30
0094020163 Pin din0094-2,0x162 |
0094020163 |
US $1.31 |
||
|
31
|
31
50332070000 Inner ring with collar2 |
50332070000 |
US $47.52 |
||
|
32
|
32
56532095000 Needle bearing k26x30x22zw.kse2 |
56532095000 |
US $21.51 |
||
|
33
|
33
0770116030 O-ring 116,00x3,00 hnbr 702 |
0770116030 |
US $8.69 |
||
|
61
|
61
50332061044 Cylinder cpl. 125/200'982 |
50332061044 |
US $162.54 |
||
|
62
|
62
50332062000 Hollow screw cpl. m 10x1 '982 |
50332062000 |
US $35.33 |
||
|
65
|
65
50332065053 Clutch release gasket 0,75mm2 |
50332065053 |
US $2.87 |
||
|
66
|
66
0401070003 Ball din5401-72 |
0401070003 |
US $0.66 |
||
|
68
|
68
42013226000 Cu-Seal Ring Din7603-10X16X12 |
42013226000 |
US $4.10 |
||
|
69
|
69
50332066000 Piston w. o-ring 125/200 20002 |
50332066000 |
US $99.11 |
||
|
70
|
70
0912060303 Ah screw din0912-m 6x302 |
0912060303 |
US $1.60 |
||
|
71
|
71
0984060163 Ah Screw Din6912-M 6X162 |
0984060163 |
US $1.24 |
||
|
72
|
72
0912060253 Ah Screw Din0912-M 6X252 |
0912060253 |
US $1.79 |
||
|
75
|
75
50329050000 Vent Injektion Hydr. Clutch2 |
50329050000 |
US $50.78 |
||
