Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 58335050044 Water pump mechanic cpl.'94 2	58335050044	US $396.93
2	2 0471120010 Circlip din0471-12x1 2	0471120010	US $1.12
3	3 0472280120 Circlip din0472-28x1,2 2	0472280120	US $2.24
4	4 0625060016 Groov.ball bear. 6001.2rsr c3 2	0625060016	US $23.89
5	5 0760152472 Shaft seal ring 15x24x7 a-duo 2	0760152472	US $30.09
6	6 54435010000 Water pump shaft 2	54435010000	US $87.87
7	7 0770047015 O-ring 47,00x1,50 nbr 70 2	0770047015	US $1.12
8	8 58035002644 Water pump case cpl. 4t '00 2	58035002644	US $125.99
9	9 56535005300 Water pump wheel 2	56535005300	US $8.81
10	10 0021050003 Washer din9021-a 5,3 2	0021050003	US $1.29
11	11 0912050123 Ah screw din0912-m 5x12 2	0912050123	US $0.85
12	12 56535003300 Water pump cover gasket 2	56535003300	US $2.24
13	13 58335001244 Water pump cover lc4 '99 2	58335001244	—
14	14 0984060203 Ah screw din6912-m 6x20 8.8 2	0984060203	US $1.55
15	15 0603061001 Cu-Seal Ring Din7603-6X10X1 2	0603061001	US $2.64
16	16 0402025580 Needleroll.din5402 nrb 2,5x5,8 2	0402025580	US $0.94
17	17 0770049025 O-ring 49,00x2,50 nbr 2	0770049025	US $2.98
20	20 58335025350 Radiator hose 12x3 04 2	58335025350	—
	replacement
20	20 58335025001 Radiator Hose(Reenforced)12X 2	58335025001	US $19.74
21	21 58335099000 Hose clamp gemi 10-16 2	58335099000	US $2.77
30	30 58335013044 Thermostat cpl. 70 dg lc4'94 2	58335013044	US $111.86
31	31 0770320020 O-ring 32,00x2,00 2	0770320020	US $2.09
32	32 58335017000 Thermostat 70 degrees '94 2	58335017000	—
33	33 0770021020 O-ring 21,00x2,00 nbr70 2	0770021020	US $2.35
35	35 0912060453 Ah screw din0912-m 6x45 2	0912060453	—
36	36 0125060003 Washer Din0125-A 6,4 2	0125060003	US $0.37

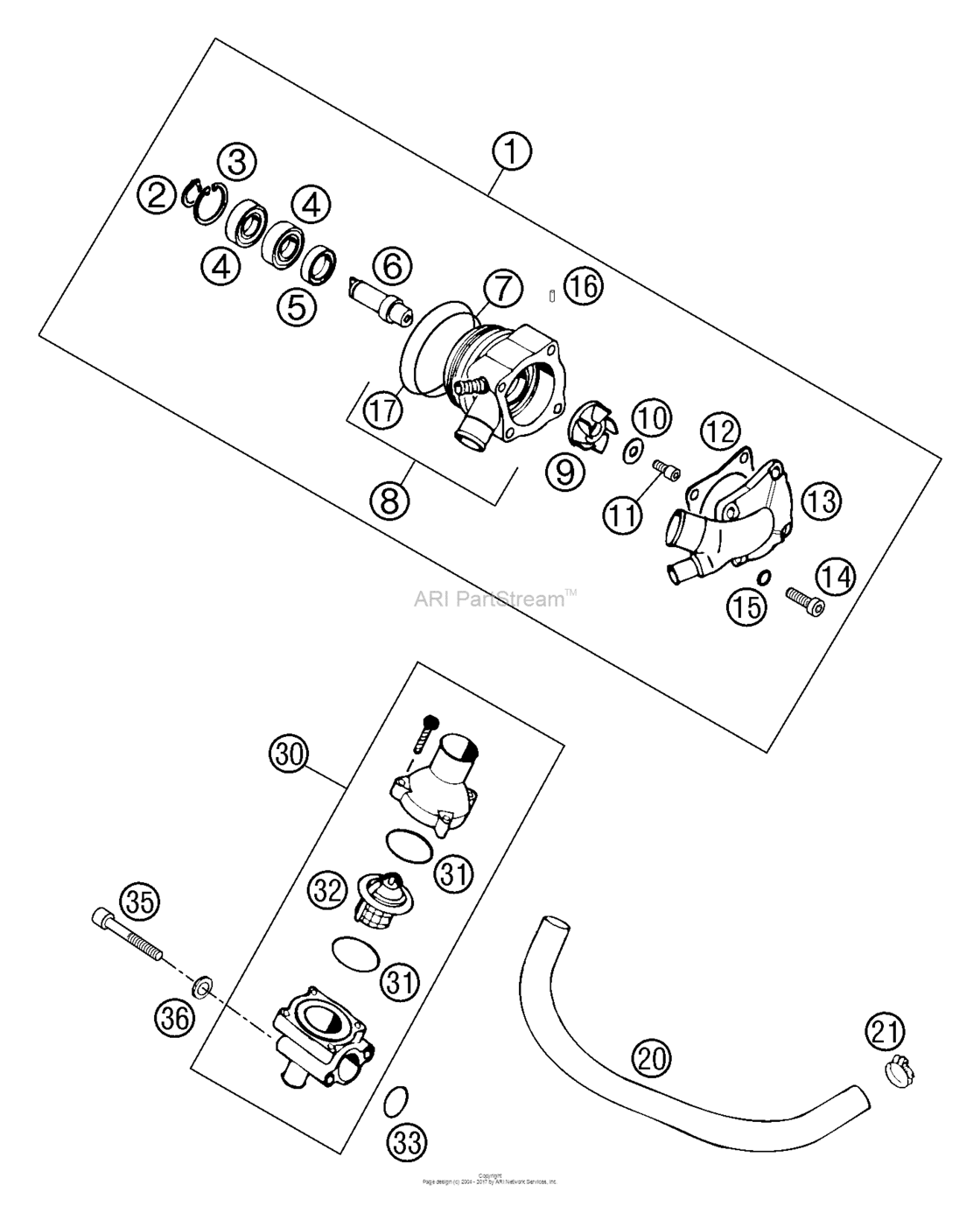

Water Pump Diagram KTM 400 400 LS-E/Mil US/EU 18092120-939980

Water Pump Diagram KTM 400 400 LS-E/Mil US/EU 18092120-939980
