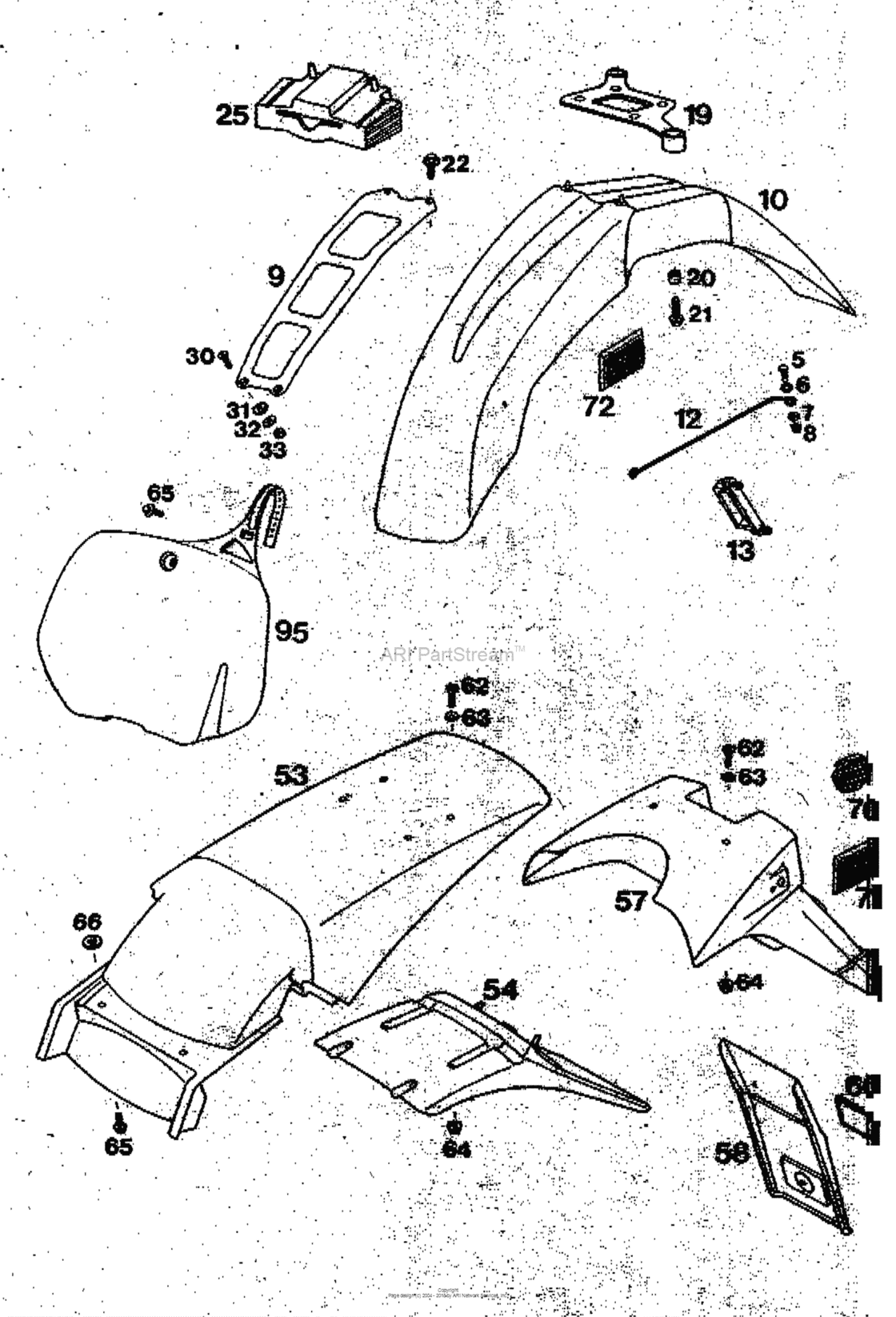

Fender Diagram KTM 400 400 RXC
- Year
- 1995
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 RXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
5
|
5
0966050163 Oval head screw din0966-m 5x16LC4'93 |
0966050163 |
US $2.18 |
||
|
6
|
6
40006006000 Washer 6mmLC4'93 |
40006006000 |
US $2.18 |
||
|
7
|
7
0021050003 Washer din9021-a 5,3LC4'93 |
0021050003 |
US $1.29 |
||
|
8
|
8
0985050003 Self Locking Nut Din0985-M 5LC4'93 |
0985050003 |
US $3.26 |
||
|
9
|
9
58308009000
Fender stiffening front
LC4'93 |
58308009000 |
— | ||
|
10
|
10
50208410000
Front fender white '93
'93 |
50208410000 |
— | ||
|
12
|
12
54501092100
Speedo.cable refu. l=260mm'91
'91 |
54501092100 |
— | ||
|
13
|
13
54601093000 Cable guide cpl.'91 |
54601093000 |
US $11.58 |
||
|
19
|
19
54608019100 Cable guide wp/paioli '93'93 |
54608019100 |
US $10.40 |
||
|
20
|
20
50208020000 Spacer Bushing 7X10X7,5'93 |
50208020000 |
US $3.60 |
||
|
21
|
21
0014060203 Hh Collar Screw M 6X20 Ws=8SW=8 |
0014060203 |
US $3.26 |
||
|
22
|
22
0014060133
Hh collar screw m 6x13 ws=8
SW=8 |
0014060133 |
— | ||
| replacement | |||||
|
22
|
22
0024060136 Hh collar screw m6x13 tx30SW=8 |
0024060136 |
US $2.09 |
||
|
25
|
25
50211402000
Spacer for headlight mask '93
'93 |
50211402000 |
— | ||
|
30
|
30
0966050163 Oval head screw din0966-m 5x16'93 |
0966050163 |
US $2.18 |
||
|
31
|
31
51005082100 Rubber washer 5x16x3'93 |
51005082100 |
US $0.66 |
||
|
32
|
32
0021050003 Washer din9021-a 5,3'93 |
0021050003 |
US $1.29 |
||
|
33
|
33
0985050003 Self Locking Nut Din0985-M 5'93 |
0985050003 |
US $3.26 |
||
|
53
|
53
58308013000
Rear Fender Lc4
LC4'93 |
58308013000 |
— | ||
| replacement | |||||
|
53
|
53
58308013200
Fender rear white '96
LC4'93 |
58308013200 |
— | ||
|
54
|
54
58308113051
Number plate carrier exc '93
LC4'93 |
58308113051 |
— | ||
|
57
|
57
58308013051 Number plate carrier egs '93LC4'93 |
58308013051 |
US $58.96 |
||
|
58
|
58
49008216000
Extension for number plate
(As Required) |
49008216000 |
— | ||
|
60
|
60
51012080000
Reflector Self-Adhesiv Red
(As Required) |
51012080000 |
— | ||
| replacement | |||||
|
60
|
60
51012180000 Reflector Self-Adhesiv Red(As Required) |
51012180000 |
US $12.33 |
||
|
62
|
62
0991060203 Flat Head Din7991-M 6X20(As Required) |
0991060203 |
US $2.99 |
||
| replacement | |||||
|
62
|
62
0991060202 Flat head din7991-m 6x20(As Required) |
0991060202 |
US $3.26 |
||
|
63
|
63
40006006000 Washer 6mm(As Required) |
40006006000 |
US $2.18 |
||
|
64
|
64
56509064000 Self Locking Nut M6 10.9(As Required) |
56509064000 |
US $1.14 |
||
| replacement | |||||
|
64
|
64
56509064100 Self Locking Nut M6 10.9(As Required) |
56509064100 |
US $1.04 |
||
|
65
|
65
0014060133
Hh collar screw m 6x13 ws=8
SW=8 |
0014060133 |
— | ||
| replacement | |||||
|
65
|
65
0024060136 Hh collar screw m6x13 tx30SW=8 |
0024060136 |
US $2.09 |
||
|
66
|
66
31004001100 Washer 10,5 x 21 x 3SW=8 |
31004001100 |
US $1.46 |
||
|
70
|
70
16512080000
Reflector yellow cpl.
SW=8 |
16512080000 |
— | ||
|
71
|
71
16512180100 Side Reflector Red RearUSA'94 |
16512180100 |
US $6.36 |
||
|
72
|
72
16512180000
Side reflector orange front
USA'94 |
16512180000 |
— | ||
|
95
|
95
50201495000
Front number plate '93
'93 |
50201495000 |
— | ||
