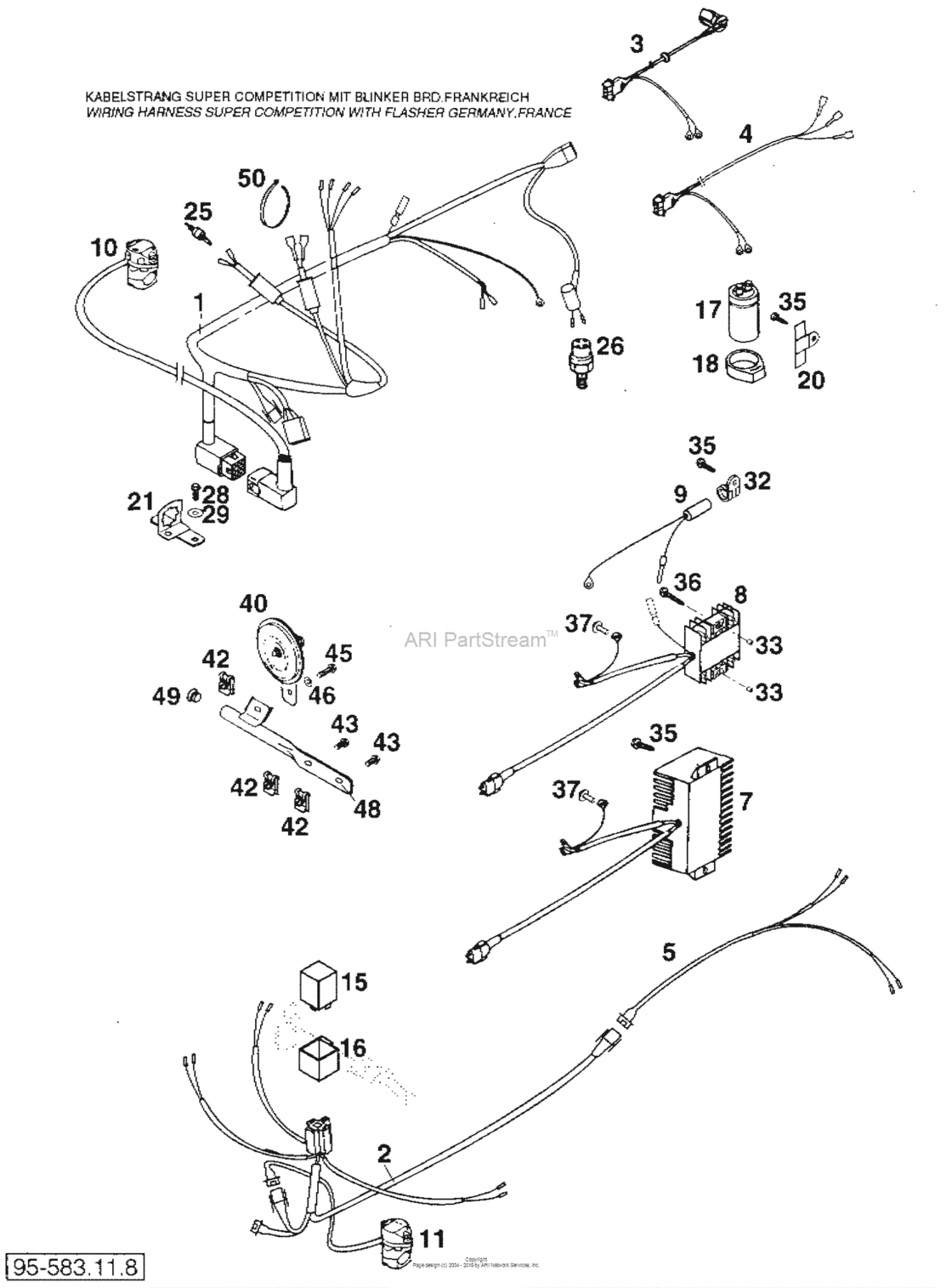

Kabelstrang Super Comp. Diagram KTM 400 400 Super Competition
- Year
- 1995
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 Super Competition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
44011076200 Cable tie 200/3,6mm black(As Required) |
44011076200 |
US $0.39 |
||
|
|
44011076305 Cable tie 300/4,8mm black(As Required) |
44011076305 |
US $0.36 |
||
|
1
|
1
58311175100
Main wiring harness supercomp.
95 |
58311175100 |
— | ||
|
2
|
2
58311177000
Hiring Harness
95 |
58311177000 |
— | ||
|
3
|
3
58311176100
Tail light wiring acerbis '95
95 |
58311176100 |
— | ||
|
4
|
4
58311176000
Tail Light Wiring Cev
95 |
58311176000 |
— | ||
|
5
|
5
58311178000
Wiring Harness
95 |
58311178000 |
— | ||
|
7
|
7
58011234100 Volt. Regulator Shindengen 12V95 |
58011234100 |
US $273.87 |
||
| replacement | |||||
|
7
|
7
58311034200 Volt. regulator shindengen 12v95 |
58311034200 |
US $146.91 |
||
|
8
|
8
58311034000
Superseded By 58311034100
95 |
58311034000 |
— | ||
|
9
|
9
58311030100 Diode for regulator shindengen95 |
58311030100 |
US $30.74 |
||
|
10
|
10
58311070000 Light switch cev 9607 '9393 |
58311070000 |
US $43.88 |
||
|
11
|
11
58011371000
Flasher Switch Cev
95 |
58011371000 |
— | ||
|
15
|
15
44611207000
Flasher unit
95 |
44611207000 |
— | ||
|
16
|
16
54511046000
Flasher light bracket
95 |
54511046000 |
— | ||
|
17
|
17
49111435100 Condensator 25V, 10.000 Mf95 |
49111435100 |
US $59.25 |
||
|
18
|
18
54511048000 Capacitor bracket95 |
54511048000 |
US $5.24 |
||
|
20
|
20
54611448000
Bracket for capacitor
93 |
54611448000 |
— | ||
|
21
|
21
54611083100
Bracket for connector '93
93 |
54611083100 |
— | ||
|
25
|
25
51011050000 Break Light Switch93 |
51011050000 |
US $20.76 |
||
| replacement | |||||
|
25
|
25
51011050100 BREAK LIGHT SWITCH93 |
51011050100 |
US $17.22 |
||
|
26
|
26
42013121000 Brake Light Switch Rear 9893 |
42013121000 |
US $39.53 |
||
|
28
|
28
0015060163 Hh Collar Screw M 6X16 Ws=8SW=8 |
0015060163 |
US $2.23 |
||
|
29
|
29
0021060003 Washer Din9021-A 6,4SW=8 |
0021060003 |
US $3.26 |
||
|
32
|
32
49007439000 Clamp rsgu 15/12SW=8 |
49007439000 |
US $4.96 |
||
|
33
|
33
56535035000
Bushing 6,5 x 12 x 9
SW=8 |
56535035000 |
— | ||
|
35
|
35
0981550193
Sheet met.scr.din7981- 5,5x19
(As Required) |
0981550193 |
— | ||
|
36
|
36
0981550393 Sheet met.scr.din7981- 5,5x39(As Required) |
0981550393 |
US $0.85 |
||
|
37
|
37
0014060103
Hh Collar Screw M6X10 Tx30
SW=8 |
0014060103 |
— | ||
| replacement | |||||
|
37
|
37
0024060106 Hh collar screw m6x10 tx30SW=8 |
0024060106 |
US $4.35 |
||
|
40
|
40
54511060000
Direct Curr. Horn
SW=8 |
54511060000 |
— | ||
|
42
|
42
54603048100 Range Change Metal Nut M6SW=8 |
54603048100 |
US $5.27 |
||
|
43
|
43
0015060123
Hh Collar Screw M 6X12 Ws=8
SW=8 |
0015060123 |
— | ||
| replacement | |||||
|
43
|
43
0025060126 Hh collar screw m6x12 tx30SW=8 |
0025060126 |
US $3.96 |
||
|
45
|
45
0015060203
Hh Collar Screw M 6X20 Ws=8
SW=8 |
0015060203 |
— | ||
| replacement | |||||
|
45
|
45
0025060206 Hh collar screw m6x20 tx30SW=8 |
0025060206 |
US $1.97 |
||
|
46
|
46
0125060003 Washer Din0125-A 6,4SW=8 |
0125060003 |
US $0.37 |
||
|
48
|
48
58307021000 Bracket for horn '93LC4 '93 |
58307021000 |
US $16.12 |
||
|
49
|
49
50210086000 Covering cap sfl16LC4 '93 |
50210086000 |
US $3.54 |
||
|
50
|
50
44011076180
Cable tie 180mm
(As Required) |
44011076180 |
— | ||
