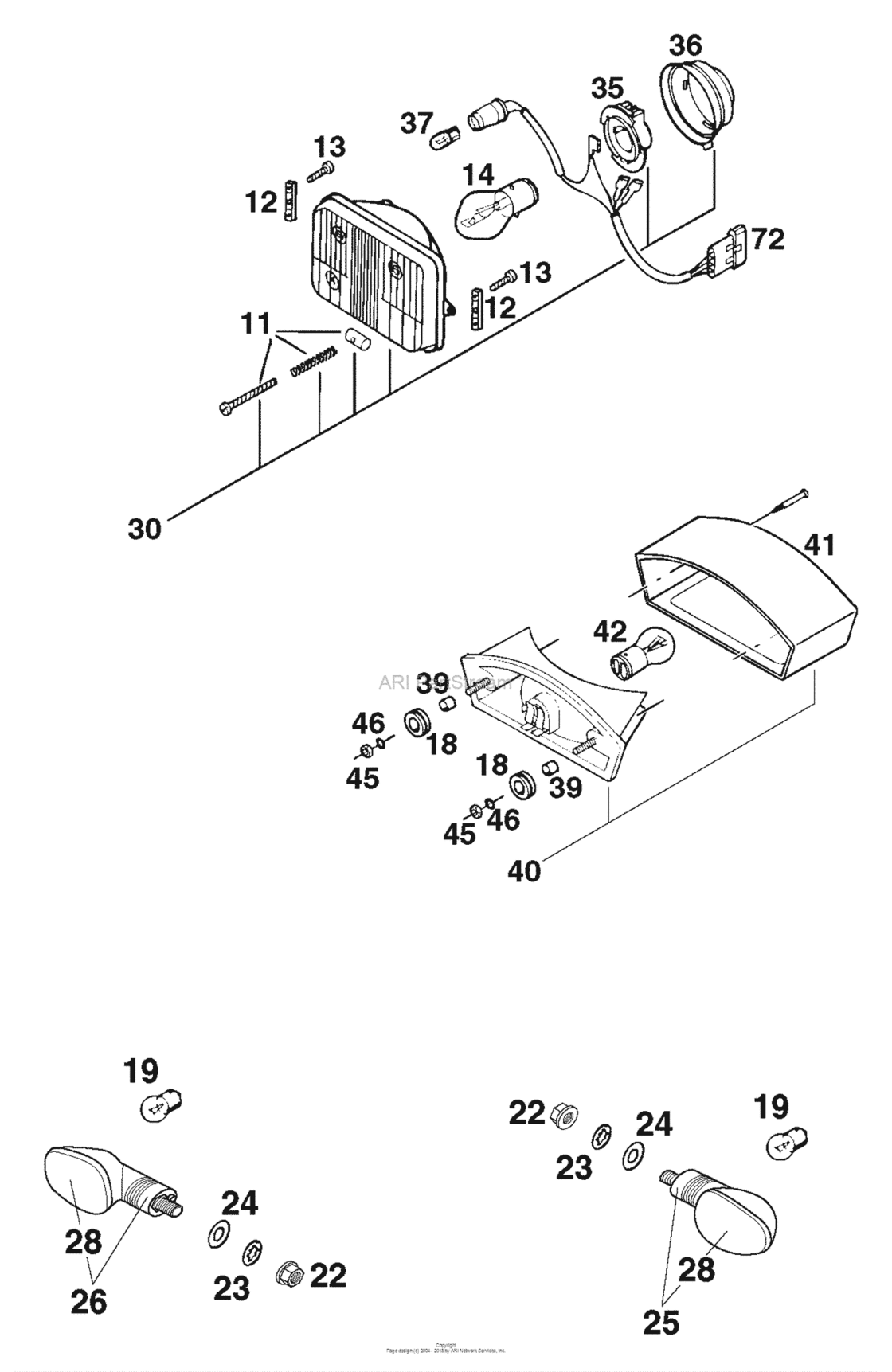

Head Light, Flasher (Part 2) Diagram KTM 400 400 SXC
- Year
- 1999
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11
|
11
50211631000 Adjusting screw cpl. m4x4093 |
50211631000 |
US $3.96 |
||
|
12
|
12
50211410050 Headlight bracket '9393 |
50211410050 |
US $6.73 |
||
|
13
|
13
0016040183 Screw for plastic d=4x1893 |
0016040183 |
US $1.17 |
||
|
14
|
14
44111038000 Bilux-bulb 12v 35/35w ba20d93 |
44111038000 |
US $16.30 |
||
|
18
|
18
31008060000 Rubber Sleeve D=8Mm Open93 |
31008060000 |
US $1.09 |
||
|
19
|
19
44111015100 Bulb 12v 10w (ba15s)93 |
44111015100 |
US $2.30 |
||
|
22
|
22
58414030000 Hh collar nut m10x1,25 ws=1393 |
58414030000 |
US $2.60 |
||
|
23
|
23
0797100003 Lock washer din6797-j10,5 zi93 |
0797100003 |
US $0.65 |
||
|
24
|
24
0125100003 Washer Din0125-A10,593 |
0125100003 |
US $1.19 |
||
|
25
|
25
5841402500030
Flasher Cpl.front L/s Rear R/s
93 |
5841402500030 |
— | ||
|
26
|
26
5841402600030 Flasher Cpl.front R/s Rear L/s93 |
5841402600030 |
US $25.93 |
||
|
28
|
28
58414028000 Flasher lens l/s & r/s '9893 |
58414028000 |
US $6.75 |
||
|
30
|
30
50211410000 Headlight Cpl. Cev 322 '9393 |
50211410000 |
US $67.07 |
||
|
35
|
35
50211436000 Bulb socket93 |
50211436000 |
US $22.49 |
||
|
36
|
36
50211437000
Rubber Cap
93 |
50211437000 |
— | ||
|
37
|
37
49011435000 Bulb 12V 5W (W2,1X9,5D) Phil93 |
49011435000 |
US $4.27 |
||
| replacement | |||||
|
37
|
37
49011435100 Bulb 12V 5W (W2,1X9,5D) Phil93 |
49011435100 |
US $3.81 |
||
|
39
|
39
58011039000 Spacer bushing 6,5 x 8 x 793 |
58011039000 |
US $1.79 |
||
|
40
|
40
58311040000 Rear Light Cpl. Cev 358 '9393 |
58311040000 |
US $45.66 |
||
|
41
|
41
58311041000 Lens '9393 |
58311041000 |
US $24.43 |
||
|
42
|
42
57011045000 Bulb 12V 21/5W (Bay15S)Reinfo93 |
57011045000 |
US $15.37 |
||
| replacement | |||||
|
42
|
42
58414042000 Bulb 12V 21/5W (Bay15S)Reinfo93 |
58414042000 |
US $12.56 |
||
|
45
|
45
0985060003 Self Lock. Nut Din0985-M 693 |
0985060003 |
US $2.60 |
||
|
46
|
46
0021060003 Washer Din9021-A 6,493 |
0021060003 |
US $3.26 |
||
|
72
|
72
50211410010
Cable F.headlight 125/250/300 Egs
93 |
50211410010 |
— | ||
