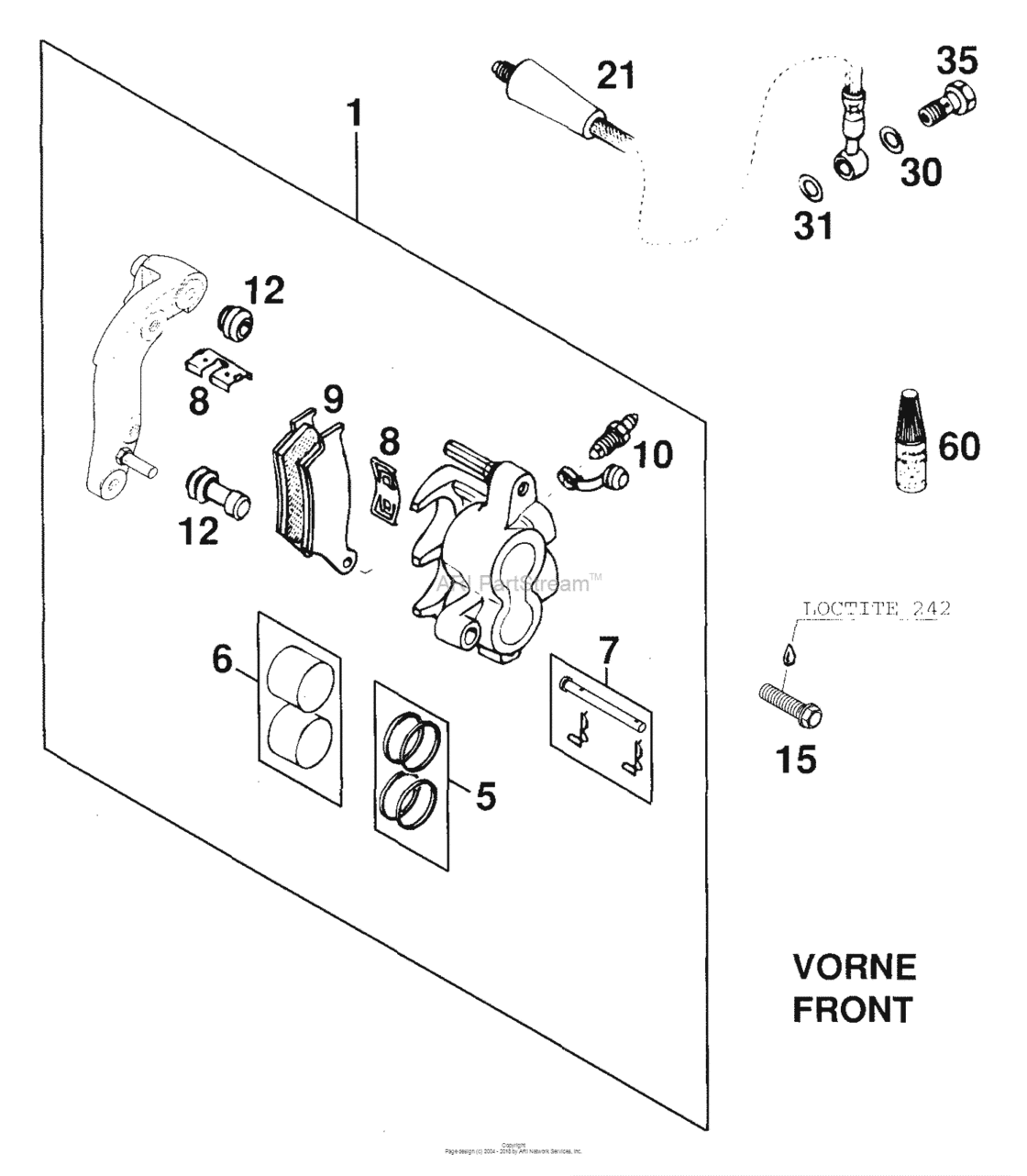

Brake Caliper Front Diagram KTM 400 400 SXC
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 400
- Model
- 400 SXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59013015044 Brake caliper front brembo '9993 |
59013015044 |
US $197.81 |
||
|
5
|
5
54613205000 Repair kit 28mm93 |
54613205000 |
US $20.21 |
||
|
6
|
6
54613206000 Repair kit piston 28mm93 |
54613206000 |
US $40.29 |
||
|
7
|
7
54613210100 Bolt Cpl. 6X5693 |
54613210100 |
US $17.19 |
||
|
8
|
8
54613212000 Retaining Plate Set Brembo93 |
54613212000 |
US $27.20 |
||
|
9
|
9
50313030000 Brake Pad Set Fr. Toshiba H3893 |
50313030000 |
US $84.32 |
||
|
9
|
9
54613209044 Brake Pad Set Ferodo Id450Ff93 |
54613209044 |
US $50.71 |
||
| replacement | |||||
|
9
|
9
54613209244 Brake pad set ferodo id450ff93 |
54613209244 |
US $40.89 |
||
|
10
|
10
54513214000 Bleeder Screw With Cap93 |
54513214000 |
US $14.89 |
||
| replacement | |||||
|
10
|
10
60013020000 Bleeder Screw With Cap93 |
60013020000 |
US $6.27 |
||
|
12
|
12
54613218000 Cup Set Short93 |
54613218000 |
US $25.72 |
||
| replacement | |||||
|
12
|
12
54613218100 CUP SET SHORT93 |
54613218100 |
US $25.72 |
||
|
15
|
15
0015080353 Hh Collar Screw M 8X35 Ws=1093 |
0015080353 |
US $7.12 |
||
|
21
|
21
58313011100
Brake Hose Front 1290 Mm '97
93 |
58313011100 |
— | ||
| replacement | |||||
|
21
|
21
50313011000 Brake hose front 1290 mm '9793 |
50313011000 |
US $143.21 |
||
|
30
|
30
42013226000 Cu-Seal Ring Din7603-10X16X193 |
42013226000 |
US $4.10 |
||
|
31
|
31
42013026000 Cu-seal ring din7603-10x16x1,593 |
42013026000 |
US $2.24 |
||
|
35
|
35
50213025000 Hollow Screw M10X1X1993 |
50213025000 |
US $5.39 |
||
|
60
|
60
6899785 Loctite 243 Blue 6Ccm93 |
6899785 |
US $40.61 |
||
